Professional
LED ECO CLASSIC A

LED ECO CLASSIC A

Choose your product version

5 W/3000 K B22d GEN5

5 W/3000 K E27 GEN5

5 W/6500 K B22d GEN5

5 W/6500 K E27 GEN5

7 W/3000 K B22d GEN5

7 W/3000 K E27 GEN5

7 W/6500 K B22d GEN5

7 W/6500 K E27 GEN5

9 W/3000 K B22d GEN5

9 W/3000 K E27 GEN5

9 W/6500 K B22d GEN5

9 W/6500 K E27 GEN5

12 W/3000 K B22d GEN5

12 W/3000 K E27 GEN5

12 W/6500 K B22d GEN5

12 W/6500 K E27 GEN5

14 W/3000 K B22d

14 W/3000 K E27

14 W/6500 K B22d

14 W/6500 K E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED ECO CLAS A 5 W/3000 K B22d GEN5 B22d 5 W 220…240 V 12000 h 360 lm 40 W 200 ° No
LED ECO CLAS A 5 W/3000 K E27 GEN5 E27 5 W 220…240 V 12000 h 360 lm 40 W 200 ° No
LED ECO CLAS A 5 W/6500 K B22d GEN5 B22d 5 W 220…240 V 12000 h 400 lm 40 W 200 ° No
LED ECO CLAS A 5 W/6500 K E27 GEN5 E27 5 W 220…240 V 12000 h 400 lm 40 W 200 ° No
LED ECO CLAS A 7 W/3000 K B22d GEN5 B22d 7 W 220…240 V 12000 h 500 lm 60 W 200 ° No
LED ECO CLAS A 7 W/3000 K E27 GEN5 E27 7 W 220…240 V 12000 h 500 lm 60 W 200 ° No
LED ECO CLAS A 7 W/6500 K B22d GEN5 B22d 7 W 220…240 V 12000 h 560 lm 60 W 200 ° No
LED ECO CLAS A 7 W/6500 K E27 GEN5 E27 7 W 220…240 V 12000 h 560 lm 60 W 200 ° No
LED ECO CLAS A 9 W/3000 K B22d GEN5 B22d 9 W 220…240 V 12000 h 650 lm 75 W 200 ° No
LED ECO CLAS A 9 W/3000 K E27 GEN5 E27 9 W 220…240 V 12000 h 650 lm 75 W 200 ° No
LED ECO CLAS A 9 W/6500 K B22d GEN5 B22d 9 W 220…240 V 12000 h 720 lm 75 W 200 ° No
LED ECO CLAS A 9 W/6500 K E27 GEN5 E27 9 W 220…240 V 12000 h 720 lm 75 W 200 ° No
LED ECO CLAS A 12 W/3000 K B22d GEN5 B22d 12 W 220…240 V 12000 h 860 lm 90 W 200 ° No
LED ECO CLAS A 12 W/3000 K E27 GEN5 E27 12 W 220…240 V 12000 h 860 lm 90 W 200 ° No
LED ECO CLAS A 12 W/6500 K B22d GEN5 B22d 12 W 220…240 V 12000 h 960 lm 90 W 200 ° No
LED ECO CLAS A 12 W/6500 K E27 GEN5 E27 12 W 220…240 V 12000 h 960 lm 90 W 200 ° No
LED ECO CLAS A 14 W/3000 K B22d B22d 14 W 220…240 V 12000 h 1080 lm 200 ° No
LED ECO CLAS A 14 W/3000 K E27 E27 14 W 220…240 V 12000 h 1080 lm 200 ° No
LED ECO CLAS A 14 W/6500 K B22d B22d 14 W 220…240 V 12000 h 1200 lm 200 ° No
LED ECO CLAS A 14 W/6500 K E27 E27 14 W 220…240 V 12000 h 1200 lm 200 ° No


LED ECO CLAS A 5 W/3000 K B22d GEN5

Product benefits
  • Energy savings of up to 88 % (compared to traditional incandescent lamps)
  • Excellent price/performance ratio
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 5 W
Construction wattage 5.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 38 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ 0.50

Photometrical data

Luminous flux 360 lm
Nominal useful luminous flux 90° 360 lm
Luminous efficacy 72 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 200 °
Starting time 0.5 s

Dimensions & Weight

Overall length 95.00 mm
Diameter 55.00 mm
Maximum diameter 55 mm
Product weight 21.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) B22d
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Country-specific categorizations

Order reference LECO CLA5W/8302

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) B22d
Length 95.00 mm
Height 55.00 mm
Width 55.00 mm
Product benefits
  • Energy savings of up to 88 % (compared to traditional incandescent lamps)
  • Excellent price/performance ratio
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Suitable for indoor applications
Product features
  • Base: E27, B22d
  • Luminous efficacy: up to 100 lm/W
  • Mercury-free lamps
  • Lifetime: up to 12,000 h
  • Overtemperature protection
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075246096 Folding box
1		 57 mm x 57 mm x 99 mm 38.00 g 0.32 dm³
4058075246102 Bundle
10		 570 mm x 57 mm x 99 mm 390.00 g 3.22 dm³
4099854078446 Bundle
10		 280 mm x 112 mm x 104 mm 347.00 g 3.26 dm³
4058075246119 Shipping box
100		 587 mm x 307 mm x 227 mm 4584.00 g 40.91 dm³
4099854078453 Shipping box
100		 574 mm x 294 mm x 233 mm 4115.00 g 39.32 dm³

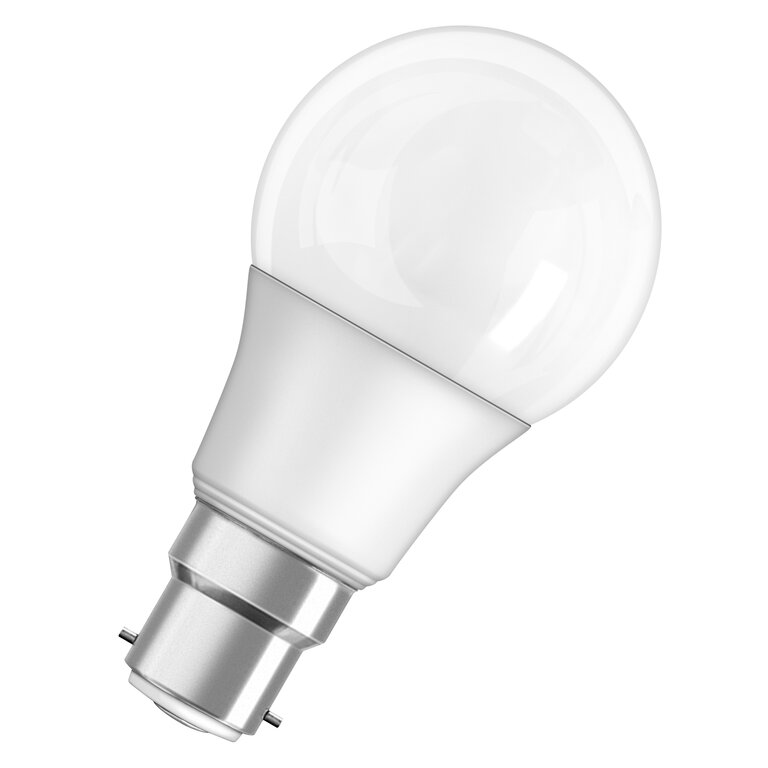

Product Image, Diagonal, White BG
LED ECO CLA_40_60 FR B 22d 5/7W JPG (1.26 MB)

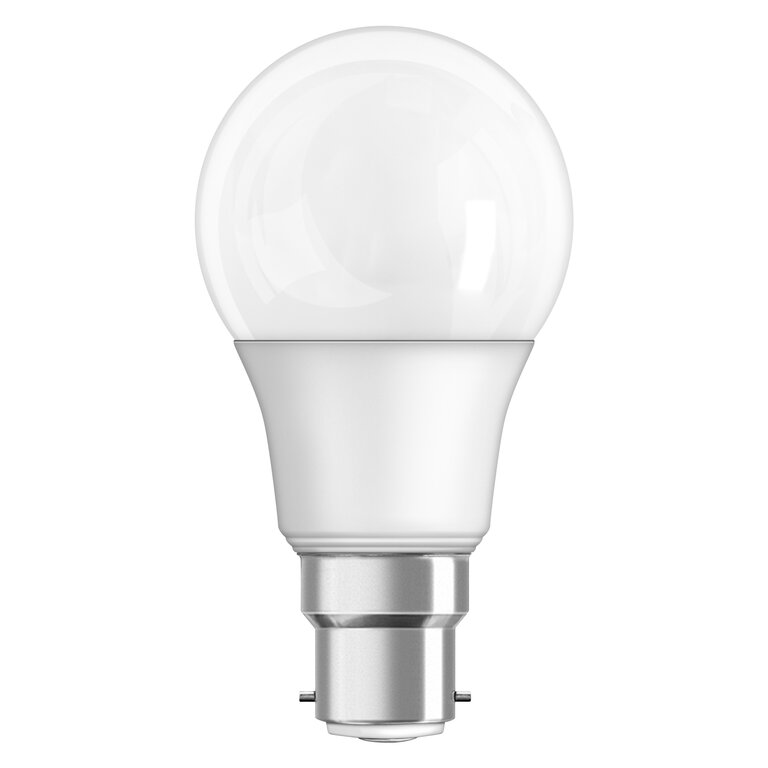

Product Image, Upright, White BG
LED ECO CLA_40_60 FR B 22d 5/7W JPG (1.15 MB)
Prod.line drw, front, no dimensions
LS CLA60 9W FR B22d SVG (4.9 KB)

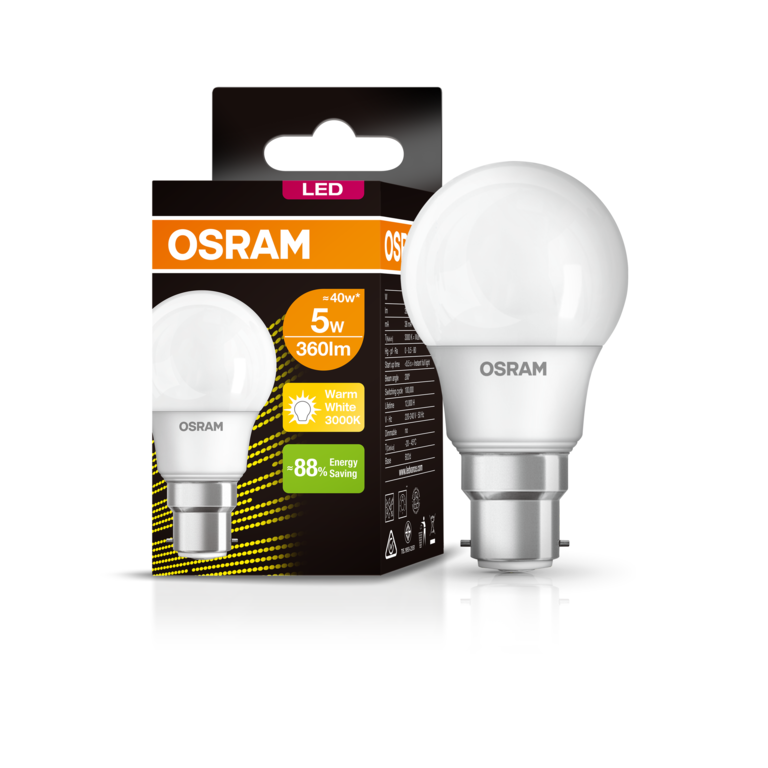

Combo Shot = Product Beauty Shot + Packaging Image
LECO CLA 5W/830 230VB2 2D OSRAM TIF (47.11 MB)

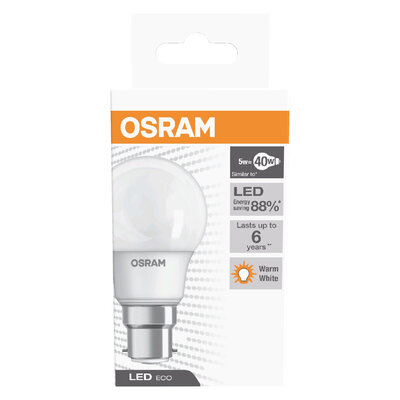

Packaging image, frontal
LECO CLA40 5W 830 230V B22D MiCh Front JPG (1.13 MB)
IES file (IES)
LED ECO CLA40 5W IES (18.72 KB)
