Professional
LED VALUE CLASSIC A SURGE PROTECTION

LED VALUE CLASSIC A SURGE PROTECTION

Choose your product version

5 W/3000 K B22d

5 W/3000 K E27

5 W/4000 K B22d

40 5 W/4000 K E27

5 W/6500 K B22d

5 W/6500 K E27

7 W/3000 K B22d

7 W/3000 K E27

7 W/4000 K B22d

7 W/4000 K E27

7 W/6500 K B22d

7 W/6500 K E27

9 W/3000 K B22d

9 W/3000 K E27

9 W/4000 K B22d

9 W/4000 K E27

9 W/6500 K B22d

9 W/6500 K E27

12 W/3000 K B22d

12 W/3000 K E27

12 W/4000 K B22d

12 W/4000 K E27

12 W/6500 K B22d

12 W/6500 K E27

15 W/3000 K B22d

15 W/3000 K E27

15 W/4000 K B22d

15 W/4000 K E27

15 W/6500 K B22d

15 W/6500 K E27

18 W/3000 K B22d

18 W/3000 K E27

18 W/4000 K B22d

18 W/4000 K E27

18 W/6500 K B22d

18 W/6500 K E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS A 5 W/3000 K B22d B22d 5 W 85…250 V 15000 h 500 lm 40 W 180 ° No
LED VALUE CLAS A 5 W/3000 K E27 E27 5 W 85…250 V 15000 h 500 lm 40 W 180 ° No
LED VALUE CLAS A 5 W/4000 K B22d B22d 5 W 85…250 V 15000 h 500 lm 40 W 180 ° No
LED VALUE CLAS A 40 5 W/4000 K E27 E27 5 W 85…250 V 15000 h 500 lm 40 W 180 ° No
LED VALUE CLAS A 5 W/6500 K B22d B22d 5 W 85…250 V 15000 h 500 lm 40 W 180 ° No
LED VALUE CLAS A 5 W/6500 K E27 E27 5 W 85…250 V 15000 h 500 lm 40 W 180 ° No
LED VALUE CLAS A 7 W/3000 K B22d B22d 7 W 85…250 V 15000 h 700 lm 50 W 180 ° No
LED VALUE CLAS A 7 W/3000 K E27 E27 7 W 85…250 V 15000 h 700 lm 50 W 180 ° No
LED VALUE CLAS A 7 W/4000 K B22d B22d 7 W 85…250 V 15000 h 700 lm 50 W 180 ° No
LED VALUE CLAS A 7 W/4000 K E27 E27 7 W 85…250 V 15000 h 700 lm 50 W 180 ° No
LED VALUE CLAS A 7 W/6500 K B22d B22d 7 W 85…250 V 15000 h 700 lm 50 W 180 ° No
LED VALUE CLAS A 7 W/6500 K E27 E27 7 W 85…250 V 15000 h 700 lm 50 W 180 ° No
LED VALUE CLAS A 9 W/3000 K B22d B22d 9 W 85…250 V 15000 h 900 lm 70 W 180 ° No
LED VALUE CLAS A 9 W/3000 K E27 E27 9 W 85…250 V 15000 h 900 lm 70 W 180 ° No
LED VALUE CLAS A 9 W/4000 K B22d B22d 9 W 85…250 V 15000 h 900 lm 70 W 180 ° No
LED VALUE CLAS A 9 W/4000 K E27 E27 9 W 85…250 V 15000 h 900 lm 70 W 180 ° No
LED VALUE CLAS A 9 W/6500 K B22d B22d 9 W 85…250 V 15000 h 900 lm 70 W 180 ° No
LED VALUE CLAS A 9 W/6500 K E27 E27 9 W 85…250 V 15000 h 900 lm 70 W 180 ° No
LED VALUE CLAS A 12 W/3000 K B22d B22d 12 W 85…250 V 15000 h 1200 lm 80 W 180 ° No
LED VALUE CLAS A 12 W/3000 K E27 E27 12 W 85…250 V 15000 h 1200 lm 80 W 180 ° No
LED VALUE CLAS A 12 W/4000 K B22d B22d 12 W 85…250 V 15000 h 1200 lm 80 W 180 ° No
LED VALUE CLAS A 12 W/4000 K E27 E27 12 W 85…250 V 15000 h 1200 lm 80 W 180 ° No
LED VALUE CLAS A 12 W/6500 K B22d B22d 12 W 85…250 V 15000 h 1200 lm 80 W 180 ° No
LED VALUE CLAS A 12 W/6500 K E27 E27 12 W 85…250 V 15000 h 1200 lm 80 W 180 ° No
LED VALUE CLAS A 15 W/3000 K B22d B22d 15 W 85…250 V 15000 h 1500 lm 100 W 180 ° No
LED VALUE CLAS A 15 W/3000 K E27 E27 15 W 85…250 V 15000 h 1500 lm 100 W 180 ° No
LED VALUE CLAS A 15 W/4000 K B22d B22d 15 W 85…250 V 15000 h 1500 lm 100 W 180 ° No
LED VALUE CLAS A 15 W/4000 K E27 E27 15 W 85…250 V 15000 h 1500 lm 100 W 180 ° No
LED VALUE CLAS A 15 W/6500 K B22d B22d 15 W 85…250 V 15000 h 1500 lm 100 W 180 ° No
LED VALUE CLAS A 15 W/6500 K E27 E27 15 W 85…250 V 15000 h 1500 lm 100 W 180 ° No
LED VALUE CLAS A 18 W/3000 K B22d B22d 18 W 85…250 V 15000 h 1800 lm 125 W 180 ° No
LED VALUE CLAS A 18 W/3000 K E27 E27 18 W 85…250 V 15000 h 1800 lm 125 W 180 ° No
LED VALUE CLAS A 18 W/4000 K B22d B22d 18 W 85…250 V 15000 h 1800 lm 125 W 180 ° No
LED VALUE CLAS A 18 W/4000 K E27 E27 18 W 85…250 V 15000 h 1800 lm 125 W 180 ° No
LED VALUE CLAS A 18 W/6500 K B22d B22d 18 W 85…250 V 15000 h 1800 lm 125 W 180 ° No
LED VALUE CLAS A 18 W/6500 K E27 E27 18 W 85…250 V 15000 h 1800 lm 125 W 180 ° No


LED VALUE CLAS A 12 W/6500 K E27

Product benefits
  • Low energy consumption
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 12 W
Construction wattage 12.00 W
Nominal voltage 85…250 V
Claimed equiv. conventional lamp power 80 W
Nominal current 94 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.50

Photometrical data

Luminous flux 1200 lm
Nominal useful luminous flux 90° 1200 lm
Luminous efficacy 100 lm/W
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra 80
Light color 865

Light technical data

Beam angle 180 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 123.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 36.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards CB, ROHS
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LVCLA 12W/865 8

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 123.00 mm
Height 60.00 mm
Width 60.00 mm
Product benefits
  • Low energy consumption
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor applications only in suitable luminaires
Product features
  • Surge protection: up to 2,000 V
  • Lifetime: up to 10,000 h
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075749177 Folding box
1		 60 mm x 60 mm x 123 mm 60.00 g 0.44 dm³
4058075749184 Shipping box
10		 314 mm x 134 mm x 151 mm 783.00 g 6.35 dm³

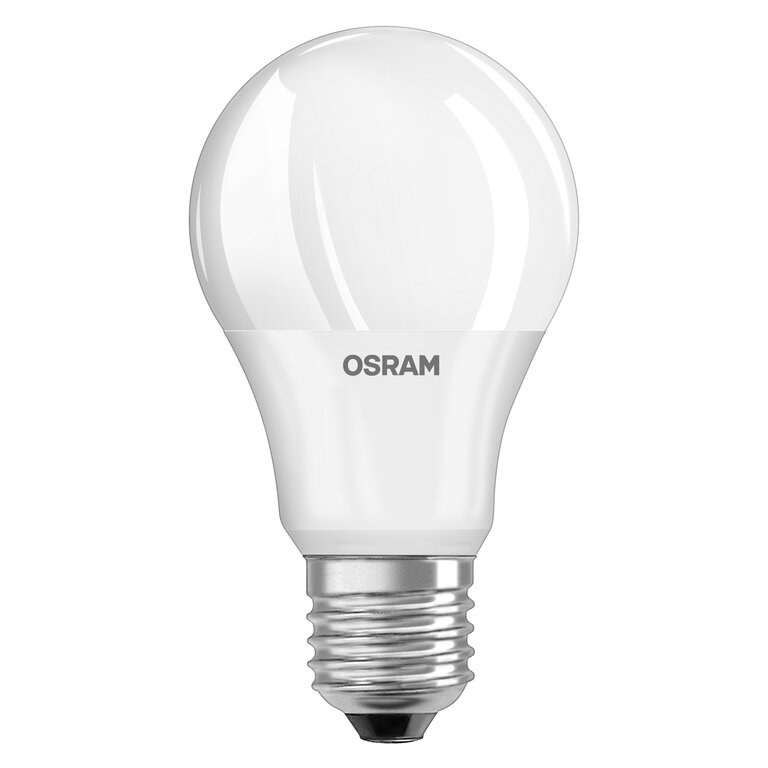

Product Image, Diagonal with OSRAM LOGO, White BG
LV CLAS A 40 60 FR E27 JPG (1.31 MB)

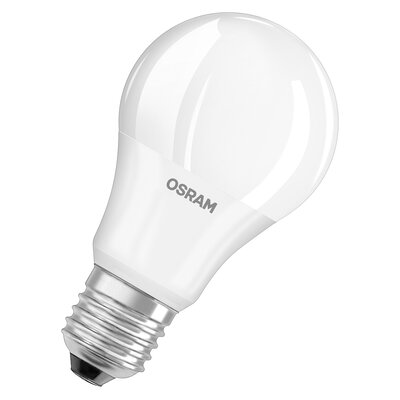

Product Image, Upright with Osram LOGO, White BG
LV CLAS A 40 60 FR E27 JPG (1.16 MB)
Prod.line drw, front, no dimensions
LS CLA 40 4.5W 5.5W FR E27 SVG (3.12 KB)
IES file (IES)
LVCLA 12W 840 85-250V FR E27 OSRAM IES (9.79 KB)
LDC typ polar
LVCLA 12W 840 85-250V FR E27 OSRAM SVG (20.41 KB)
