Professional
LED VALUE CLASSIC P

LED VALUE CLASSIC P

Choose your product version

40 4.9 W/2700 K E14

40 4.9 W/2700 K E27

40 4.9 W/6500 K E14

40 4.9 W/6500 K E27

5 W/3000 K E27 GEN2

5 W/6500 K E27 GEN2

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS P 40 4.9 W/2700 K E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS P 40 4.9 W/2700 K E27 E27 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS P 40 4.9 W/6500 K E14 E14 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALUE CLAS P 40 4.9 W/6500 K E27 E27 4.9 W 220…240 V 15000 h 470 lm 40 W 200 ° No
LED VALE CLAS P 5 W/3000 K E27 GEN2 E27 5 W 100…240 V 25000 h 470 lm 25 W 200 ° No
LED VALE CLAS P 5 W/6500 K E27 GEN2 E27 5 W 100…240 V 25000 h 470 lm 25 W 200 ° No


LED VALE CLAS P 5 W/6500 K E27 GEN2

Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 5 W
Construction wattage 5.00 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 25 W
Nominal current 45 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.40

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 94 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 200 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 80.00 mm
Diameter 45.00 mm
Maximum diameter 45 mm
Product weight 14.3 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20

Country-specific categorizations

Order reference LV CLP 5W/86510

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E27
Length 80.00 mm
Height 45.00 mm
Width 45.00 mm
Product benefits
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor applications only in suitable luminaires
Product features
  • Color rendering index Ra: ≥ 80
  • Not dimmable
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075656338 Folding box
1		 46 mm x 46 mm x 84 mm 28.00 g 0.18 dm³
4058075656345 Shipping box
10		 240 mm x 102 mm x 98 mm 352.00 g 2.40 dm³
4099854021053 Shipping box
10		 245 mm x 104 mm x 96 mm 289.00 g 2.45 dm³

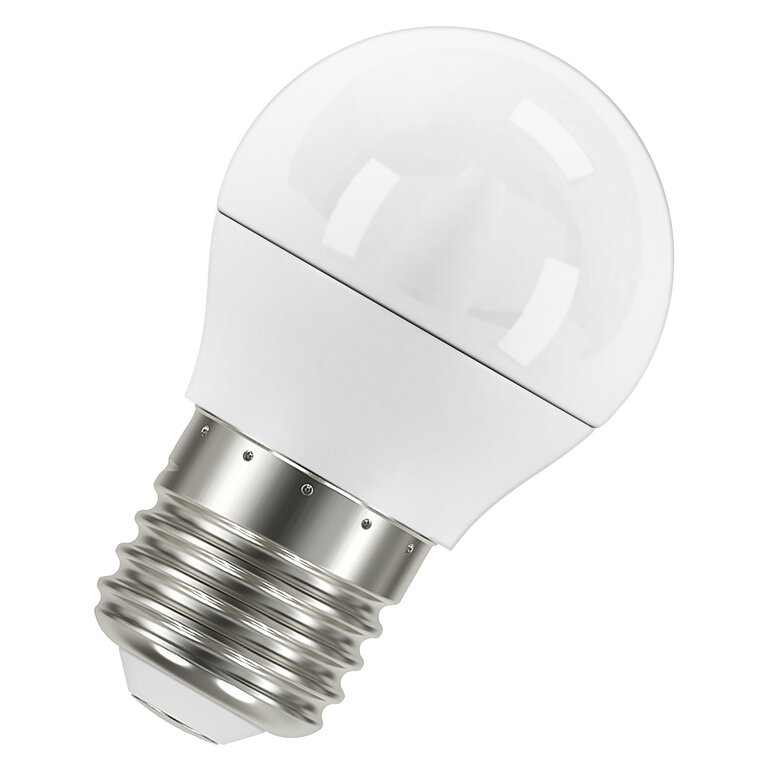

Product Image, Diagonal with OSRAM LOGO, White BG
LV CLAP 40 FR E27 TIF (21.75 MB)
Product Image, Diagonal, White BG
LS CLP40 5,4W/830 FR E 27 JPG (1.55 MB)
Product Image, Upright with Osram LOGO, White BG
LV CLAP 40 FR E27 TIF (3.66 MB)

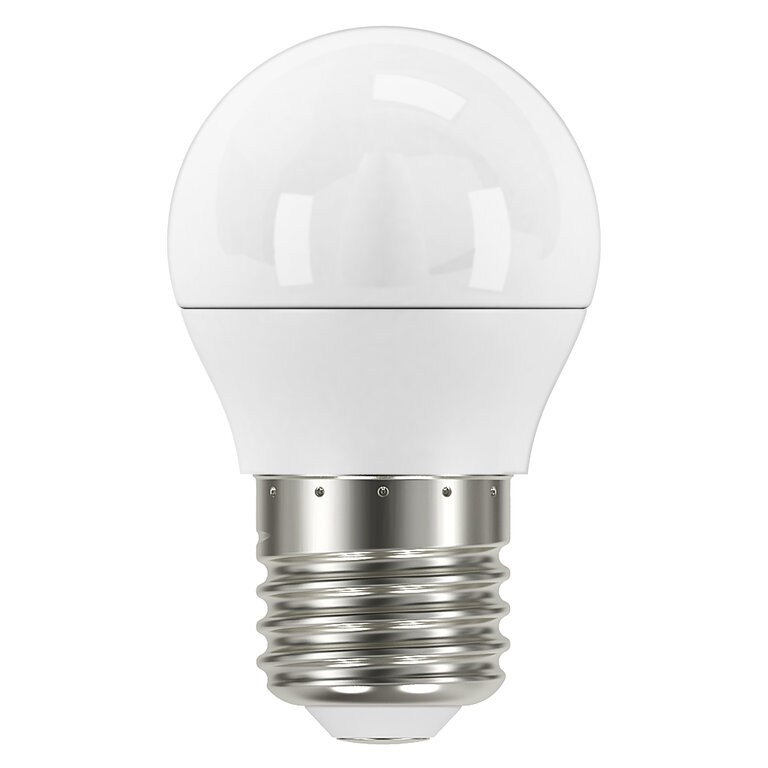

Product Image, Upright, White BG
723760_4052899971646 L S CLP40 5,4W/830 FR E2 7 JPG (1.35 MB)
Prod.line drw, front, no dimensions
LS CLP40 5.5W FR E27 SVG (3.14 KB)
