Professional
LED PERFORMANCE STICK

LED PERFORMANCE STICK

Choose your product version

9 W/2700 K B22d

9 W/2700 K E27

9 W/4000 K B22d

9 W/4000 K E27

9 W/6500 K B22d

9 W/6500 K E27

11 W/2700 K B22d

11 W/2700 K E27

11 W/4000 K B22d

11 W/4000 K E27

11 W/6500 K B22d

11 W/6500 K E27

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED PERFORMANCE STICK 9 W/2700 K B22d B22d 9 W 220…240 V 15000 h 750 lm 60 W 200 ° Yes
LED PERFORMANCE STICK 9 W/2700 K E27 E27 9 W 220…240 V 15000 h 750 lm 60 W 200 ° Yes
LED PERFORMANCE STICK 9 W/4000 K B22d B22d 9 W 220…240 V 15000 h 800 lm 60 W 200 ° Yes
LED PERFORMANCE STICK 9 W/4000 K E27 E27 9 W 220…240 V 15000 h 800 lm 60 W 200 ° Yes
LED PERFORMANCE STICK 9 W/6500 K B22d B22d 9 W 220…240 V 25000 h 900 lm 66 W 200 ° Yes
LED PERFORMANCE STICK 9 W/6500 K E27 E27 9 W 220…240 V 25000 h 900 lm 66 W 200 ° Yes
LED PERFORMANCE STICK 11 W/2700 K B22d B22d 11 W 220…240 V 25000 h 1100 lm 77 W 200 ° Yes
LED PERFORMANCE STICK 11 W/2700 K E27 E27 11 W 220…240 V 25000 h 1100 lm 77 W 200 ° Yes
LED PERFORMANCE STICK 11 W/4000 K B22d B22d 11 W 220…240 V 25000 h 1100 lm 77 W 200 ° Yes
LED PERFORMANCE STICK 11 W/4000 K E27 E27 11 W 220…240 V 25000 h 1100 lm 77 W 200 ° Yes
LED PERFORMANCE STICK 11 W/6500 K B22d B22d 11 W 220…240 V 25000 h 1100 lm 77 W 200 ° Yes
LED PERFORMANCE STICK 11 W/6500 K E27 E27 11 W 220…240 V 25000 h 1100 lm 77 W 200 ° Yes


LED PERFORMANCE STICK 9 W/2700 K B22d

Product benefits
  • Creation of the preferred light ambience thanks to dimming
  • Wide beam angle: 200°
  • Instant 100 % light, no warm-up time
  • Stylish and modern design
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 60 W
Nominal current 58 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ 0.70

Photometrical data

Luminous flux 750 lm
Luminous efficacy 83 lm/W
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 200 °
Starting time 0.5 s

Dimensions & Weight

Overall length 116.00 mm
Diameter 41.00 mm
Maximum diameter 41 mm
Product weight 28.00 g

Temperatures & operating conditions

Ambient temperature range -20…+30 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) B22d
Mercury content 0.0 mg

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class F

Country-specific categorizations

Order reference LP STICK DIM 9W

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) B22d
Length 116.00 mm
Height 41.00 mm
Width 41.00 mm
Product benefits
  • Creation of the preferred light ambience thanks to dimming
  • Wide beam angle: 200°
  • Instant 100 % light, no warm-up time
  • Stylish and modern design
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Suitable for indoor applications
  • Replacement for conventional compact fluorescent lamps with wattage 11 W, 15 W and 24 W
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Long lifetime: up to 25,000 h
  • Mercury-free lamps
  • Input voltage: 220…240 VAC
  • Storage temperature from -20 °C to up to +80 °C, up to 95 % relative humidity
  • Operating temperature from -20 °C to up to +35 °C, up to 95 % relative humidity
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075636125 Folding box
1		 42 mm x 42 mm x 117 mm 42.00 g 0.21 dm³
4058075636132 Shipping box
10		 218 mm x 92 mm x 132 mm 491.00 g 2.65 dm³
4099854275685 Shipping box
10		 218 mm x 93 mm x 134 mm 480.00 g 2.72 dm³
Product Image, Diagonal, White BG
LED STICK FR B22d TIF (37.33 MB)
Product Image, Upright, White BG
LED STICK FR B22d TIF (8.39 MB)
Prod.line drw, front, no dimensions
LSTICK T FR B22d SVG (4.09 KB)

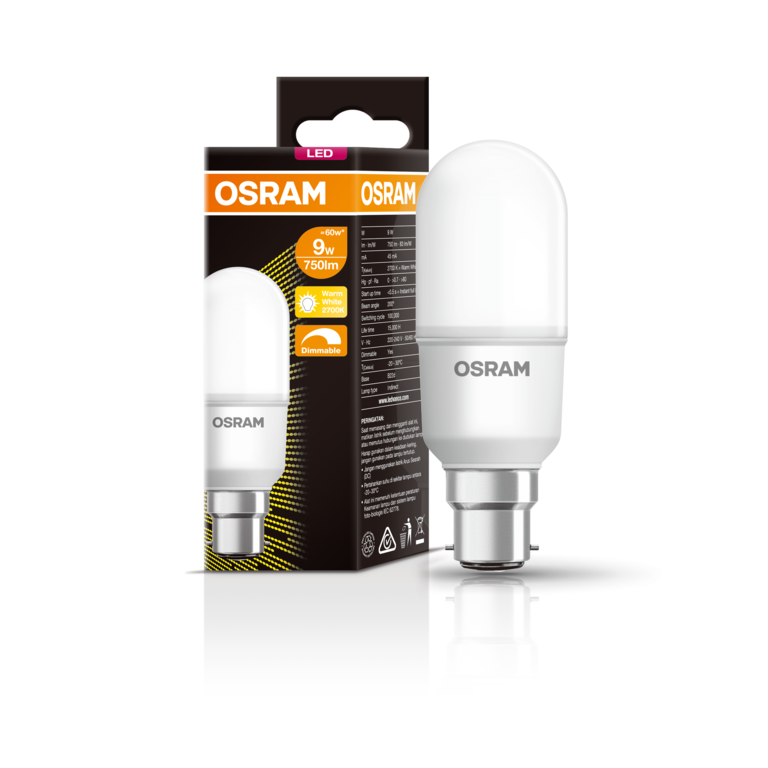

Combo Shot = Product Beauty Shot + Packaging Image
LP STICK DIM 9W B22D TIF (47.97 MB)
