Choose your product version
| Product description | Base (standard designation) | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Claimed equiv. conventional lamp power | Beam angle | Dimmable |
|---|---|---|---|---|---|---|---|---|

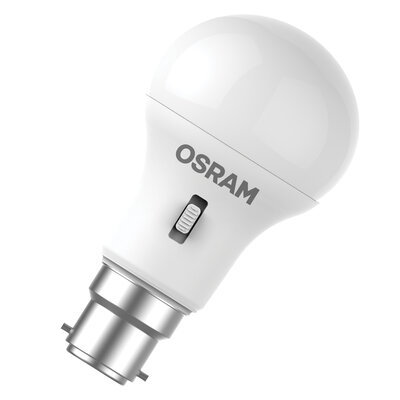

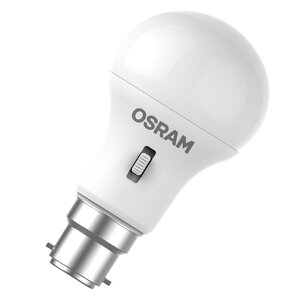

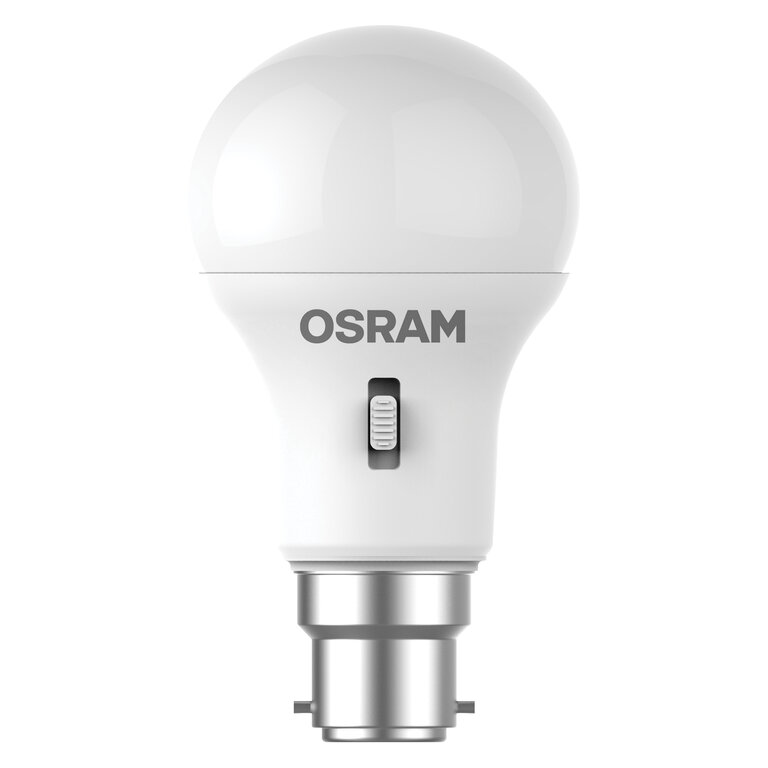

| LED CCT SELECTABLE CLA 8 W/3000 K / 4500 K / 6500 K B22 | B22 | 8 W | 220…240 V | 15000 h | 800 lm | 60 W | 150 ° | No |

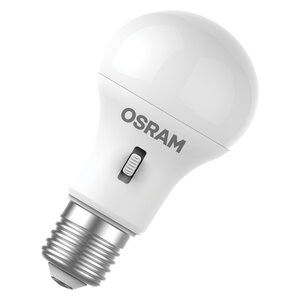

| LED CCT SELECTABLE CLA 8 W/3000 K / 4500 K / 6500 K E27 | E27 | 8 W | 220…240 V | 15000 h | 800 lm | 60 W | 150 ° | No |
| Nominal wattage | 8 W |
| Construction wattage | 8.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 60 W |
| Nominal current | 59 mA |
| Type of current | AC |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.50 |
| Luminous flux | 800 lm |
| Nominal useful luminous flux 90° | 800 lm |
| Luminous efficacy | 100 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Color temperature | 3000 K / 4500 K / 6500 K |
| Color rendering index Ra | > 80 |
| Light color | 830/845/865 |
| Standard deviation of color matching | ≤6 sdcm |
| Beam angle | 150 ° |
| Starting time | < 0.5 s |
| Overall length | 108.00 mm |
| Diameter | 60.00 mm |
| Maximum diameter | 60 mm |
| Product weight | 44.00 g |
| Ambient temperature range | -20…+40 °C |
| Number of switching cycles | 100000 |
| Base (standard designation) | B22 |
| Mercury content | 0.0 mg |
| Dimmable | No |
| Type of protection | IP20 |
| Standards | CB |
| Photobiological safety group acc. to EN62778 | RG1 |
| Order reference | LPCLA 8W/830/84 |
| Light source cap-type (or other electric interface) | B22 |
| Length | 108.00 mm |
| Height | 60.00 mm |
| Width | 60.00 mm |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854083143 | Folding box 1 |
62 mm x 62 mm x 113 mm | 65.00 g | 0.43 dm³ |
| 4099854083150 | Shipping box 10 |
326 mm x 135 mm x 132 mm | 747.00 g | 5.81 dm³ |
