Choose your product version
| Product description | Nominal wattage | Nominal voltage | Nominal lamp life time | Nominal luminous flux | Claimed equiv. conventional lamp power | Beam angle | Dimmable | |
|---|---|---|---|---|---|---|---|---|
| LED CCT SELECTABLE STICK 7 W/3000 K / 4500 K / 6500 K | 7 W | 220…240 V | 15000 h | 700 lm | 48 W | 170 ° | No | |

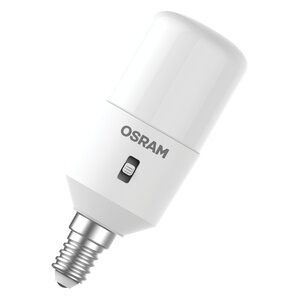

| LED CCT SELECTABLE STICK 7 W/3000 K / 4500 K / 6500 K E14 | E14 | 7 W | 220…240 V | 15000 h | 700 lm | 48 W | 170 ° | No |

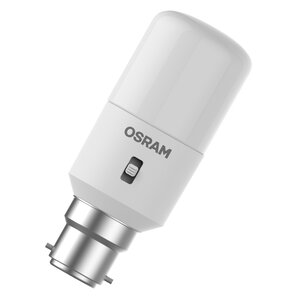

| LED CCT SELECTABLE STICK 9 W/3000 K / 4500 K / 6500 K B22 | B22 | 9 W | 220…240 V | 15000 h | 900 lm | 70 W | 170 ° | No |

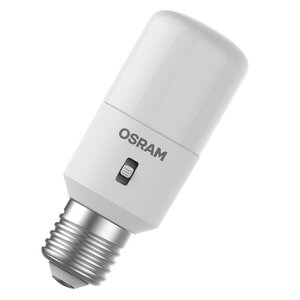

| LED CCT SELECTABLE STICK 9 W/3000 K / 4500 K / 6500 K E27 | E27 | 9 W | 220…240 V | 15000 h | 900 lm | 70 W | 170 ° | No |
| Nominal wattage | 7 W |
| Construction wattage | 7.00 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 48 W |
| Nominal current | 50 mA |
| Type of current | AC |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.50 |
| Luminous flux | 700 lm |
| Nominal useful luminous flux 90° | 700 lm |
| Luminous efficacy | 100 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Color temperature | 3000 K / 4500 K / 6500 K |
| Color rendering index Ra | > 80 |
| Light color | 830/845/865 |
| Standard deviation of color matching | ≤6 sdcm |
| Beam angle | 170 ° |
| Starting time | < 0.5 s |
| Overall length | 109.00 mm |
| Diameter | 40.00 mm |
| Maximum diameter | 40 mm |
| Product weight | 38.00 g |
| Ambient temperature range | -20…+40 °C |
| Number of switching cycles | 100000 |
| Mercury content | 0.0 mg |
| Dimmable | No |
| Type of protection | IP20 |
| Standards | CB |
| Photobiological safety group acc. to EN62778 | RG1 |
| Order reference | LPSTICK 7W/830/ |
| Length | 109.00 mm |
| Height | 40.00 mm |
| Width | 40.00 mm |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854083204 | Folding box 1 |
42 mm x 42 mm x 113 mm | 55.00 g | 0.20 dm³ |
| 4099854083211 | Shipping box 10 |
226 mm x 96 mm x 134 mm | 608.00 g | 2.91 dm³ |
