Professional
LED VALUE CLASSIC B FILAMENT

LED VALUE CLASSIC B FILAMENT

Choose your product version

2.5 W/2700 K E14

2.5 W/2700 K E14 GEN2

4 W/2700 K B15d FR GEN2

4 W/2700 K B15d GEN2

4 W/2700 K B22d GEN2

4 W/2700 K B22d FR GEN2

4 W/2700 K E14 FR GEN2

4 W/2700 K E14 GEN2

4 W/2700 K E14

4 W/2700 K E14

4 W/2700 K E27

4 W/2700 K E27 FR GEN2

4 W/4000 K E14 FR GEN2

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS B FIL 2.5 W/2700 K E14 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED VALUE CLAS B FIL 2.5 W/2700 K E14 GEN2 E14 2.5 W 220…240 V 15000 h 250 lm 25 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K B15d FR GEN2 B15d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K B15d GEN2 B15d 4 W 220…240 V 10000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K B22d GEN2 B22d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K B22d FR GEN2 B22d 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E14 FR GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E14 GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E14 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E27 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/2700 K E27 FR GEN2 E27 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED VALUE CLAS B FIL 4 W/4000 K E14 FR GEN2 E14 4 W 220…240 V 15000 h 470 lm 40 W 300 ° No


LED VALUE CLAS B FIL 4 W/2700 K B15d GEN2

Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower thermal output (compared with the standard reference product)
  • Can be easily fitted instead of ordinary light bulbs
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 40 W
Nominal current 36 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.40

Photometrical data

Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 300 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 98.00 mm
Diameter 45.00 mm
Maximum diameter 35 mm
Product weight 16.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70

Additional product data

Base (standard designation) B15d
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LV CLB 4W/827 2

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) B15d
Length 98.00 mm
Height 45.00 mm
Width 45.00 mm
EPREL ID 734527
Model number AC36779
Product benefits
  • Lamps with innovative LED "filament" technology
  • Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Lower thermal output (compared with the standard reference product)
  • Can be easily fitted instead of ordinary light bulbs
Areas of application
  • Decorative applications
  • General illumination
  • Outdoor use in outdoor luminaires only (minimum IP65)
  • Perfect for decorative installations
Product features
  • Professional LED lamps for line voltage
  • Not dimmable
  • Mercury-free lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
  • Lifetime: up to 15,000 h
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075267688 Folding box
1		 51 mm x 51 mm x 130 mm 28.00 g 0.34 dm³
4058075750777 Shipping box
10		 266 mm x 109 mm x 142 mm 424.00 g 4.12 dm³
4099854259975 Shipping box
10		 266 mm x 109 mm x 142 mm 415.00 g 4.12 dm³
4058075506459 Shipping box
10		 266 mm x 109 mm x 142 mm 425.00 g 4.12 dm³
4058075267695 Shipping box
10		 266 mm x 109 mm x 142 mm 414.00 g 4.12 dm³

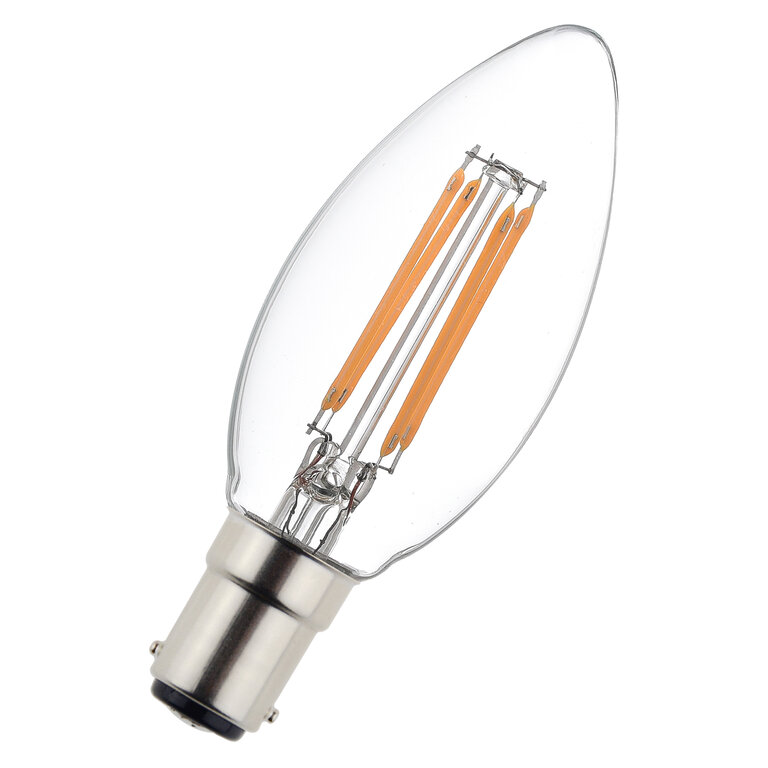

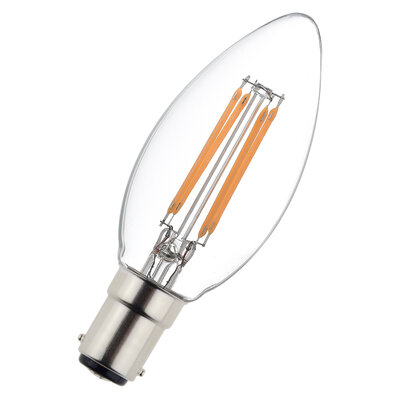

Product Image, Diagonal, White BG
LED VALUE CLASSIC B 4 W FIL B15D JPG (1.52 MB)

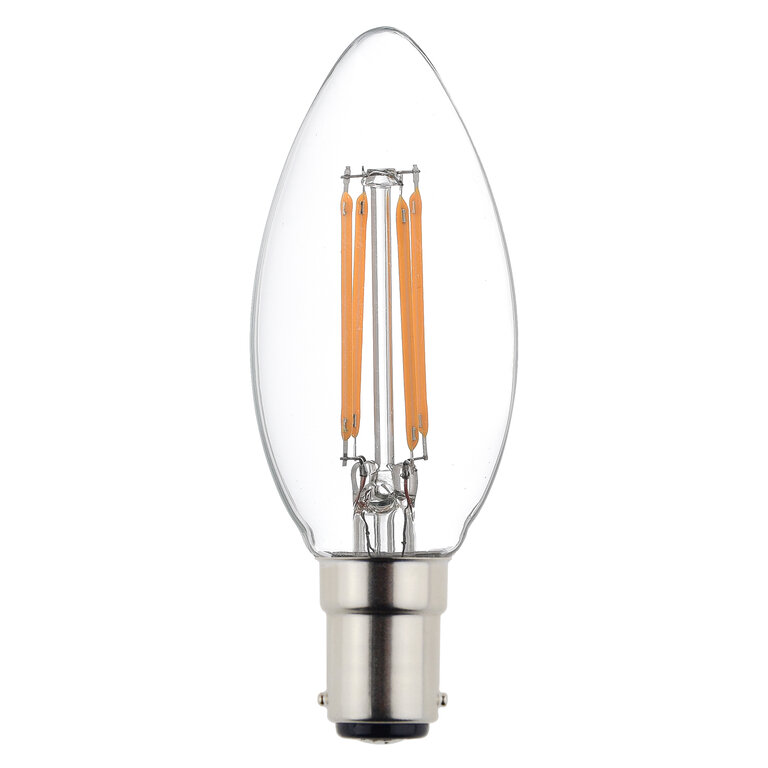

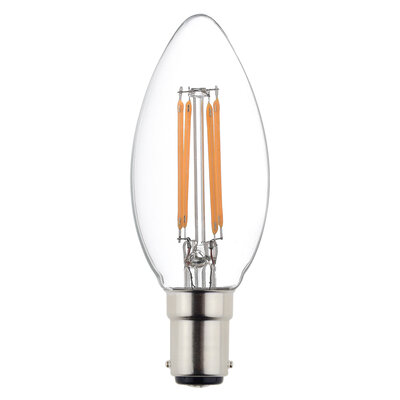

Product Image, Upright, White BG
LED VALUE CLASSIC B 4 W FIL B15D JPG (1.35 MB)
Prod.line drw, front, no dimensions
628144_LED CLASSIC B SVG (2.45 KB)
Energy label
EL-4058075267688-AC367 79 PDF (21.68 KB)
IES file (IES)
AC14561 LED VALUE CLB 4 W FIL 2700K G2AU IES (1.7 KB)
LDT file (Eulumdat)
LED VALUE CLAS B FIL 4 W 2700K B15d GEN2 LDT (1.41 KB)
LDC typ polar
LED VALUE CLAS B FIL 4 W 2700K B15d GEN2 SVG (618.42 KB)
