Professional

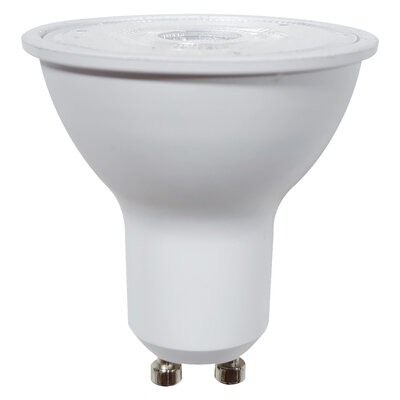

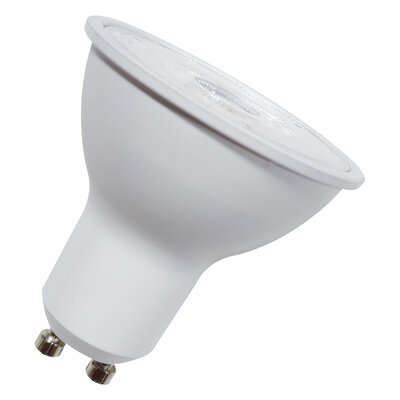

LED ECO PAR16

LED ECO PAR16

Choose your product version

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED ECO PAR16 36 ° 5 W/3000 K GU10 GU10 5 W 220…240 V 15000 h 450 lm 50 W 36 ° No
LED ECO PAR16 36 ° 5 W/3000 K GU10 GU10 5 W 220…240 V 15000 h 450 lm 50 W 36 ° No
LED ECO PAR16 36 ° 5 W/3000 K GU10 GU10 5 W 220…240 V 15000 h 450 lm 50 W 36 ° No
LED ECO PAR16 36 ° 5 W/4000 K GU10 GU10 5 W 220…240 V 15000 h 450 lm 50 W 36 ° No
LED ECO PAR16 36 ° 5 W/4000 K GU10 GU10 5 W 220…240 V 15000 h 450 lm 50 W 36 ° No
LED ECO PAR16 36 ° 5 W/4000 K GU10 GU10 5 W 220…240 V 15000 h 450 lm 50 W 36 ° No
LED ECO PAR16 36 ° 5 W/6500 K GU10 GU10 5 W 220…240 V 15000 h 450 lm 50 W 36 ° No
LED ECO PAR16 36 ° 5 W/6500 K GU10 GU10 5 W 220…240 V 15000 h 450 lm 50 W 36 ° No
LED ECO PAR16 36 ° 5 W/6500 K GU10 GU10 5 W 220…240 V 15000 h 450 lm 50 W 36 ° No


LED ECO PAR16 36 ° 5 W/3000 K GU10

Product benefits
  • Uniform illumination thanks to TIR-reflector and fly eye single optic design
  • Clear cast shadows for brilliant accent light
  • Energy savings of up to 90 % (compared to halogen lamps)
  • High color homogeneity
  • Easy replacement of halogen lamps thanks to compact design
  • Quick and simple LED conversion without modification of the existing installtion
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality

PRODUCT DETAILS

Electrical data

Nominal wattage 5 W
Construction wattage 5.00 W
Nominal voltage 220…240 V
Operating mode AC
Claimed equiv. conventional lamp power 50 W
Nominal current 35 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.50

Photometrical data

Luminous intensity 700 cd
Luminous flux 450 lm
Luminous efficacy 90 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra > 80
Light color 830
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 700 cd

Light technical data

Beam angle 36 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 54.00 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 19.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C
Maximum temperature at tc test point ≤74.5 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) GU10
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F
Type of protection IP20
Standards CB, EMC

Country-specific categorizations

Order reference LEPAR165036 5W/

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) GU10
Length 54.00 mm
Height 50.00 mm
Width 50.00 mm
Displacement factor >0.7
Product benefits
  • Uniform illumination thanks to TIR-reflector and fly eye single optic design
  • Clear cast shadows for brilliant accent light
  • Energy savings of up to 90 % (compared to halogen lamps)
  • High color homogeneity
  • Easy replacement of halogen lamps thanks to compact design
  • Quick and simple LED conversion without modification of the existing installtion
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Hospitality
  • Restaurants
  • Residential interiors
Product features
  • High-quality LED replacement for halogen reflector lamps
  • High color consistency: < 6 SDCM
  • Mercury-free lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854287794 Folding box
1
49 mm x 49 mm x 62 mm 26.00 g 0.15 dm³
4099854287800 Shipping box
10
255 mm x 107 mm x 72 mm 313.00 g 1.96 dm³
