LED PAR16 HIGH BRIGHTNESS PFM

LED PAR16 HIGH BRIGHTNESS PFM

Choose your product version

100 24 ° 10 W/2700 K GU10

100 36 ° 10 W/2700 K GU10

100 24 ° 10 W/3000 K GU10

100 36 ° 10 W/3000 K GU10

100 24 ° 10 W/4000 K GU10

100 36 ° 10 W/4000 K GU10

OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
PAR16 100 24 ° 10 W/2700 K GU10	GU10	10 W	220…240 V	40000 h	790 lm	100 W	24 °	Yes
PAR16 100 36 ° 10 W/2700 K GU10	GU10	10 W	220…240 V	40000 h	790 lm	100 W	36 °	Yes
PAR16 100 24 ° 10 W/3000 K GU10	GU10	10 W	220…240 V	40000 h	830 lm	100 W	24 °	Yes
PAR16 100 36 ° 10 W/3000 K GU10	GU10	10 W	220…240 V	40000 h	830 lm	100 W	36 °	Yes
PAR16 100 24 ° 10 W/4000 K GU10	GU10	10 W	220…240 V	40000 h	900 lm	100 W	24 °	Yes
PAR16 100 36 ° 10 W/4000 K GU10	GU10	10 W	220…240 V	40000 h	900 lm	100 W	36 °	Yes

PAR16 100 24 ° 10 W/2700 K GU10

Product benefits

Attractive lamp appearance
Easy replacement of halogen lamps due to compact design and single optic design
Good quality of light
Creation of the preferred light ambience thanks to dimming
Very high dimmer compatibility, see also www.ledvance.com/dim
Very low energy consumption
No UV and near-IR radiation in the light beam
Reliable operation thanks to brand quality

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	10 W
Construction wattage	10.00 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	100 W
Nominal current	48 mA
Power factor λ	0.92

Photometrical data

Luminous intensity	2950 cd
Luminous flux	790 lm
Luminous efficacy	79 lm/W
Color temperature	2700 K
Color rendering index Ra	95
Light color	927
Standard deviation of color matching	≤5 sdcm
Rated peak intensity	2950 cd

Light technical data

Beam angle	24 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	75.30 mm
Diameter	50.00 mm
Maximum diameter	50 mm
Product weight	105.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+45 °C

Lifespan

Number of switching cycles

100000

Additional product data

Base (standard designation)	GU10
Mercury content	0.0 mg
Mercury-free	Yes

Capabilities

Dimmable

Yes

Certificates & Standards

Energy efficiency class

G

Country-specific categorizations

Order reference

LPPR1611024 10W

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	GU10
Length	75.30 mm
Height	50.00 mm
Width	50.00 mm

Product description

Product benefits

Attractive lamp appearance
Easy replacement of halogen lamps due to compact design and single optic design
Good quality of light
Creation of the preferred light ambience thanks to dimming
Very high dimmer compatibility, see also www.ledvance.com/dim
Very low energy consumption
No UV and near-IR radiation in the light beam
Reliable operation thanks to brand quality

Areas of application

Hospitality
Restaurants
Residential interiors
Museums, art galleries

Product features

Very good color rendering (CRI: 95, R9: 90, Rg: 100, Rf: 90)
High color consistency: ≤ 5 SDCM
Single optic design
Input voltage: 220…240 V_AC
Mercury-free lamps
Lifetime: up to 40,000 h
Dimmable
Temperature-protected

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854262722	Folding box 1	52 mm x 52 mm x 81 mm	125.00 g	0.22 dm³
4099854262739	Shipping box 10	273 mm x 113 mm x 96 mm	1378.00 g	2.96 dm³
4099854262746	Shipping box 60	284 mm x 239 mm x 309 mm	8654.00 g	20.97 dm³

Product images and graphics

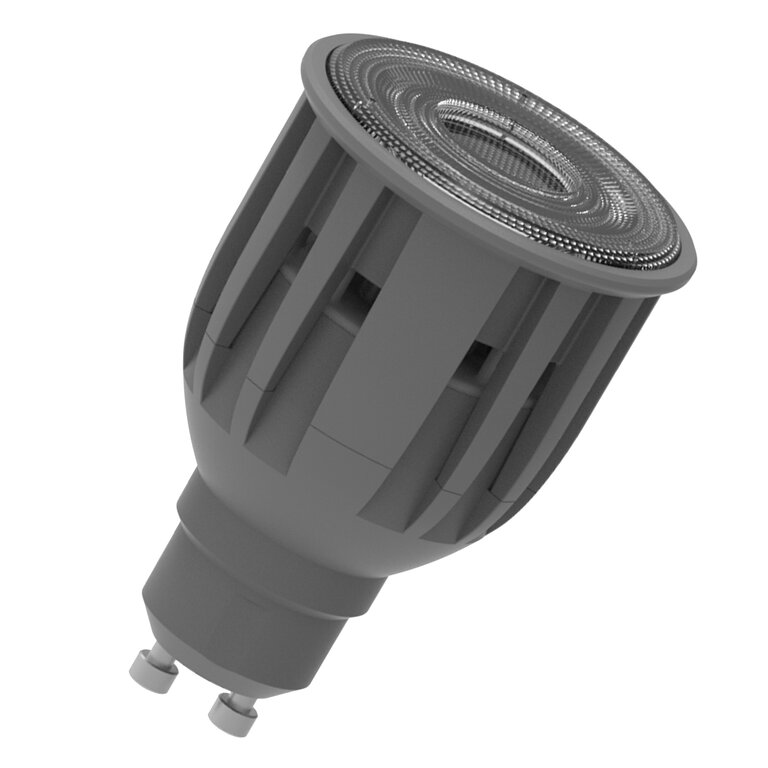

Product Image, Diagonal, White BG
LPPR1611024 230V HB GU 10 JPG (1.32 MB)

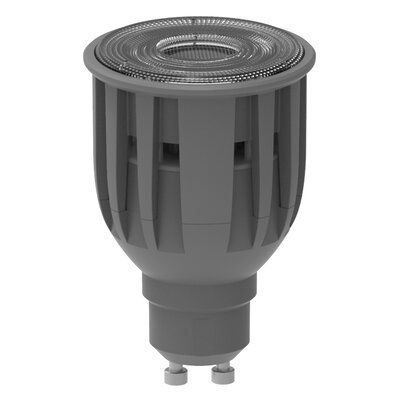

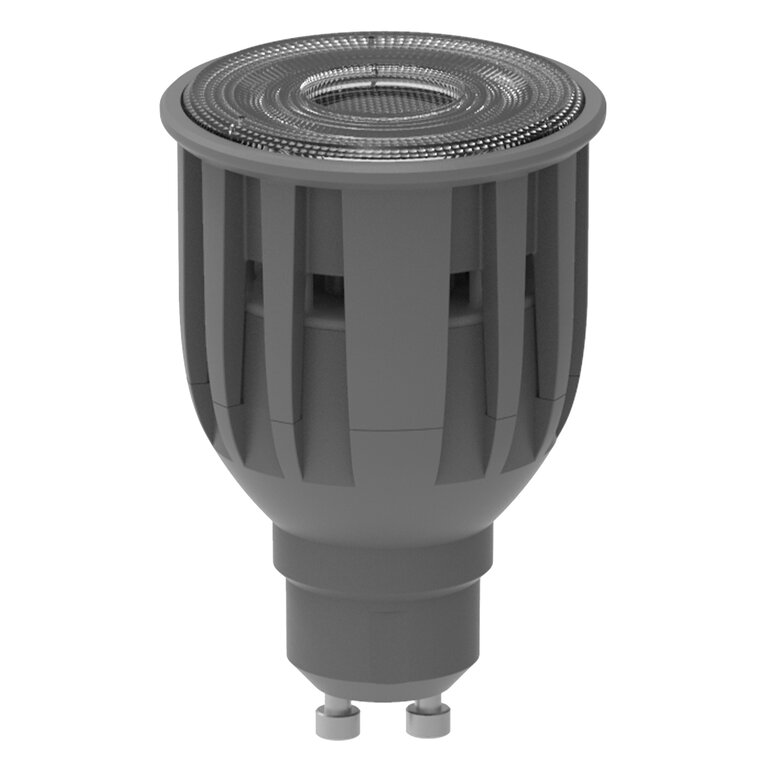

Product Image, Upright, White BG
LPPR1611024 230V HB GU 10 JPG (1.24 MB)

Product line drawing with numbers
LPPR1611024 230V HB GU 10 SVG (131.59 KB)

Photometric and lighting design files

IES file (IES)
PAR16 110 P 10W IES (38.84 KB)
