OVERVIEW

Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
LED PFM PAR16 24 ° 5.5 W/2700 K GU10	GU10	5.5 W	220…240 V	25000 h	350 lm	50 W	24 °	Yes
LED PFM PAR16 60 ° 5.5 W/3000 K GU10	GU10	5.5 W	220…240 V	25000 h	350 lm	50 W	60 °	Yes
LED PFM PAR16 36 ° 5.5 W/3000 K GU10	GU10	5.5 W	220…240 V	25000 h	350 lm	50 W	36 °	Yes
LED PFM PAR16 60 ° 5.5 W/3000 K GU10	GU10	5.5 W	220…240 V	25000 h	350 lm	50 W	60 °	Yes
LED PFM PAR16 36 ° 5.5 W/4000 K GU10	GU10	5.5 W	220…240 V	25000 h	350 lm	50 W	36 °	Yes
LED PFM PAR16 60 ° 5.5 W/6500 K GU10	GU10	5.5 W	220…240 V	25000 h	350 lm	50 W	60 °	Yes
LED PFM PAR16 60 ° 5.5 W/6500 K GU10	GU10	5.5 W	220…240 V	25000 h	350 lm	50 W	60 °	Yes
LED PFM PAR16 36 ° 5.5 W/6500 K GU10	GU10	5.5 W	220…240 V	25000 h	350 lm	50 W	36 °	Yes
LED PFM PAR16 36 ° 5.5 W/2700 K GU10	GU10	5.5 W	220…240 V	25000 h	360 lm	50 W	36 °	Yes
LED PFM PAR16 36 ° 5.5 W/2700 K GU10	GU10	5.5 W	220…240 V	25000 h	380 lm	50 W	36 °	Yes
LED PFM PAR16 10 ° 7.5 W/2700 K GU10	GU10	7.5 W	220…240 V	25000 h	500 lm	50 W	10 °	Yes
LED PFM PAR16 10 ° 7.5 W/3000 K GU10	GU10	7.5 W	220…240 V	25000 h	500 lm	50 W	10 °	Yes
LED PFM PAR16 10 ° 7.5 W/4000 K GU10	GU10	7.5 W	220…240 V	25000 h	500 lm	50 W	10 °	Yes
LED PFM PAR16 36 ° 7.5 W/2700 K GU10	GU10	7.5 W	220…240 V	25000 h	560 lm	80 W	36 °	Yes
LED PFM PAR16 60 ° 7.5 W/3000 K GU10	GU10	7.5 W	220…240 V	25000 h	560 lm	60 °	Yes
LED PFM PAR16 36 ° 7.5 W/3000 K GU10	GU10	7.5 W	220…240 V	25000 h	560 lm	80 W	36 °	Yes
LED PFM PAR16 36 ° 7.5 W/4000 K GU10	GU10	7.5 W	220…240 V	25000 h	575 lm	80 W	36 °	Yes
LED PFM PAR16 36 ° 7.5 W/6500 K GU10	GU10	7.5 W	220…240 V	25000 h	575 lm	80 W	36 °	Yes
LED PFM PAR16 60 ° 7.5 W/6500 K GU10	GU10	7.5 W	220…240 V	25000 h	575 lm	60 °	Yes
LED PFM PAR16 60 ° 7.5 W/3000 K GU10	GU10	7.5 W	220…240 V	25000 h	675 lm	60 °	Yes
LED PFM PAR16 60 ° 7.5 W/6500 K GU10	GU10	7.5 W	220…240 V	25000 h	675 lm	60 °	Yes

LED PFM PAR16 24 ° 5.5 W/2700 K GU10

Product benefits

Attractive lamp appearance
Easy replacement of halogen lamps due to compact full glass design and single optic
Good quality of light
Creation of the preferred light ambience thanks to dimming
Very high dimmer compatibility, see also www.ledvance.com/dim
Very low energy consumption
No UV and near-IR radiation in the light beam
Reliable operation thanks to brand quality

View all details

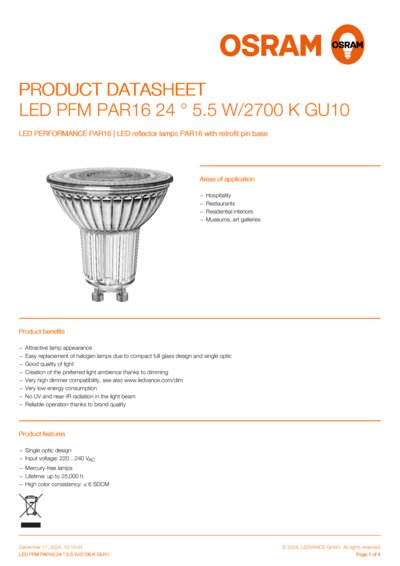

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	5.5 W
Construction wattage	5.50 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	50 W
Nominal current	33 mA
Type of current	AC
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Power factor λ	0.70

Photometrical data

Luminous intensity	1100 cd
Luminous flux	350 lm
Luminous efficacy	63 lm/W
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	90
Light color	927
Standard deviation of color matching	≤5 sdcm
Rated peak intensity	1100 cd

Light technical data

Beam angle	24 °
Warm-up time (60 %)	‹ 0.50 s
Starting time	< 0.5 s

Dimensions & Weight

Overall length	55.00 mm
Diameter	51.00 mm
Maximum diameter	51 mm
Product weight	41.00 g

Temperatures & operating conditions

Ambient temperature range

-20…+40 °C

Lifespan

Number of switching cycles

100000

Additional product data

Base (standard designation)	GU10
Mercury content	0.0 mg
Mercury-free	Yes
Product remark	All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable

Yes

Certificates & Standards

Energy efficiency class	G ¹⁾
Type of protection	IP20
Standards	CB, EMC, RoHS

¹⁾ Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference

LPPAR165024 5,5

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	GU10
Length	55.00 mm
Height	51.00 mm
Width	51.00 mm

Product description

Product benefits

Attractive lamp appearance
Easy replacement of halogen lamps due to compact full glass design and single optic
Good quality of light
Creation of the preferred light ambience thanks to dimming
Very high dimmer compatibility, see also www.ledvance.com/dim
Very low energy consumption
No UV and near-IR radiation in the light beam
Reliable operation thanks to brand quality

Areas of application

Hospitality
Restaurants
Residential interiors
Museums, art galleries

Product features

Single optic design
Input voltage: 220…240 V_AC
Mercury-free lamps
Lifetime: up to 25,000 h
High color consistency: ≤ 6 SDCM

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075587359	Folding box 1	49 mm x 49 mm x 62 mm	48.00 g	0.15 dm³
4058075587366	Shipping box 10	255 mm x 107 mm x 72 mm	533.00 g	1.96 dm³
4099854262357	Shipping box 10	255 mm x 107 mm x 72 mm	533.00 g	1.96 dm³

Product images and graphics

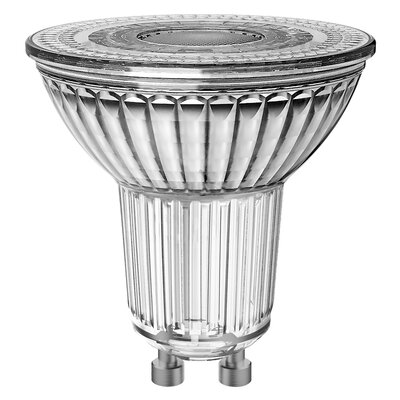

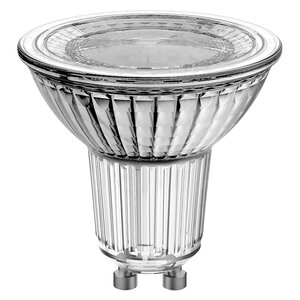

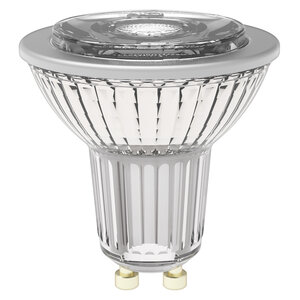

Product Image, Upright, White BG
LPPAR165036 5.5W 230V GU10 JPG (2.22 MB)

Product line drawing with numbers
LPPAR165036 5.5W 230V GU10 SVG (4.03 KB)

Combo Shot = Product Beauty Shot + Packaging Image
LPPAR165036 5.5W 230V GU10 JPG (2.15 MB)

24 ° 5.5 W/2700 K GU10

60 ° 5.5 W/3000 K GU10

36 ° 5.5 W/3000 K GU10

60 ° 5.5 W/3000 K GU10

36 ° 5.5 W/4000 K GU10

60 ° 5.5 W/6500 K GU10

60 ° 5.5 W/6500 K GU10

36 ° 5.5 W/6500 K GU10

36 ° 5.5 W/2700 K GU10

36 ° 5.5 W/2700 K GU10

10 ° 7.5 W/2700 K GU10

10 ° 7.5 W/3000 K GU10

10 ° 7.5 W/4000 K GU10

36 ° 7.5 W/2700 K GU10

60 ° 7.5 W/3000 K GU10

36 ° 7.5 W/3000 K GU10

36 ° 7.5 W/4000 K GU10

36 ° 7.5 W/6500 K GU10

60 ° 7.5 W/6500 K GU10
