Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
HQL HIGHBAY 400 120 ° 140 W/6500 K E40	E40	140 W	220…240 V	50000 h	20000 lm	400 W	120 °	No

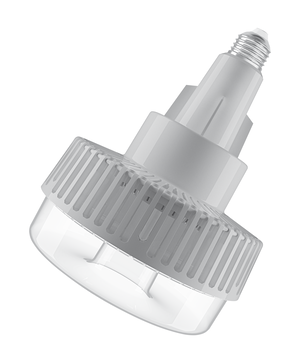

HQL HIGHBAY 400 120 ° 140 W/6500 K E40

Nominal wattage	140 W
Construction wattage	140.00 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	400 W
Nominal current	650 mA
Type of current	AC
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Power factor λ	> 0.90

Luminous flux	20000 lm
Luminous efficacy	142 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Cool Daylight
Color temperature	6500 K
Color rendering index Ra	≥80
Light color	865
Standard deviation of color matching	≤6 sdcm

Beam angle	120 °
Starting time	< 0.5 s

Ambient temperature range

-20…+50 °C

Number of switching cycles

100000

Base (standard designation)	E40
Mercury content	0.0 mg

Dimmable

Type of protection

IP40

Order reference

HQLLPHB20000 14

Light source cap-type (or other electric interface)	E40
Length	310.00 mm
Height	230.00 mm
Width	230.00 mm

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Areas of application

Product features

Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains
Replacement for other HID: Suitable for operation with line voltage without control gear
Power factor: 0.9
Type of protection: IP40
High surge protection: up to 4 kV (L-N)

Equipment / Accessories

Safety advice

The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. Safety sling has to be installed.
Only suitable for temperatures of up to 50°C inside of the luminaire.
Not suitable for operation with ignitors.
Operation on the capacitor can lead to a reduction of the power factor of the system.
To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
