HQI LED HIGHBAY

HQI LED HIGHBAY

Choose your product version

250 120 ° 95 W/4000 K E40

400 120 ° 140 W/4000 K E40

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
HQI HIGHBAY 250 120 ° 95 W/4000 K E40 E40 95 W 110 V 50000 h 13000 lm 250 W 120 ° No
HQI HIGHBAY 400 120 ° 140 W/4000 K E40 E40 140 W 110 V 50000 h 20000 lm 400 W 120 ° No


HQI HIGHBAY 250 120 ° 95 W/4000 K E40

Product benefits
  • Direct replacement for traditional HQI and NAV lamps thanks to CCG and ignitor compatibility
  • Energy savings of up to 68 % when replacing traditional HQI lamps
  • Effective thermal management for wide operating temperature range
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 95 W
Construction wattage 95.00 W
Nominal voltage 110 V
Operating mode Conventional control gear (CCG), Conventional control gear (CCG) and ignitor
Claimed equiv. conventional lamp power 250 W
Nominal current 2.3 A
Type of current AC
Inrush current ≤75 A
Operating frequency 50 Hz
Mains frequency 50 Hz
Max. lamp number on MCB B10 A 15
Max. lamp number on MCB B10 A - CCG without compensation 15
Max. lamp number on MCB B10 A - CCG with compensation 4
Max. lamp number on MCB B16 A 24
Max. lamp number on MCB B16 A - CCG without compensation 24
Max. lamp number on MCB B16 A - CCG with compensation 6
Total harmonic distortion < 80 %
Power factor λ 0.70

Photometrical data

Luminous flux 13000 lm
Nominal useful luminous flux 90° 13000 lm
Luminous efficacy 136 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 120 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 307.00 mm
Diameter 230 mm
Maximum diameter 230 mm
Product weight 1100.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point 65 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E40
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 95.00 kWh/1000h
Type of protection IP40
Standards CE
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

Order reference HQILEDH13000 95

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E40
Length 307.00 mm
Height 230 mm
Width 230 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Direct replacement for traditional HQI and NAV lamps thanks to CCG and ignitor compatibility
  • Energy savings of up to 68 % when replacing traditional HQI lamps
  • Effective thermal management for wide operating temperature range
  • Low maintenance costs thanks to long lifetime
  • Instant 100 % light, no warm-up time
Areas of application
  • LED alternative for applications requiring a high luminous flux
  • Industrial and storage facilities
  • Outdoor applications only in suitable luminaires
Product features
  • Type of protection: IP40
  • High surge protection: up to 4 kV (L-N)
Equipment / Accessories
  • Safety sling for lamp included
Safety advice
  • The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp.
  • Safety sling has to be installed.
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
  • Only suitable for temperatures of up to 50°C inside of the luminaire.
  • Not suitable for operation with 230 V line voltage or electronic control gear.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075284722 Folding box
1		 247 mm x 247 mm x 333 mm 1321.00 g 20.32 dm³
4058075284739 Shipping box
4		 515 mm x 515 mm x 355 mm 5961.00 g 94.15 dm³

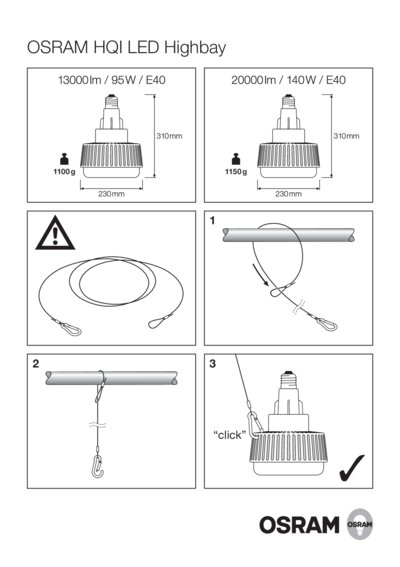

User Instruction / Safety Instructions
HQI LED Highbay PDF (3.16 MB)

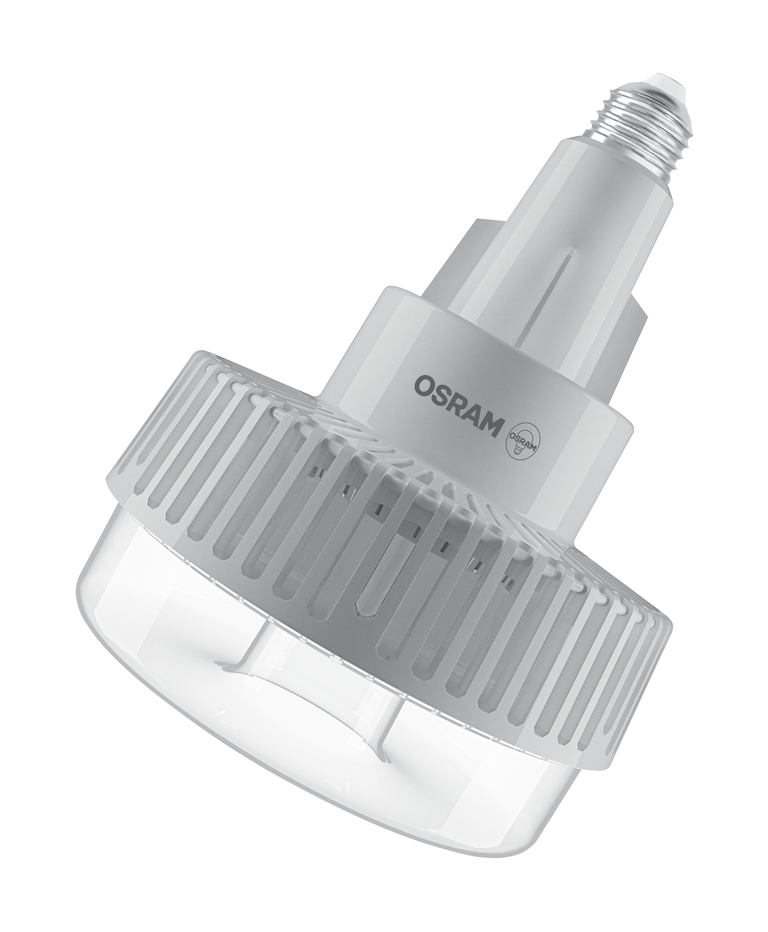

Product Image, Diagonal with OSRAM LOGO, White BG
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 TIF (45.31 MB)
Product Image, Diagonal, White BG
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 TIF (45.31 MB)

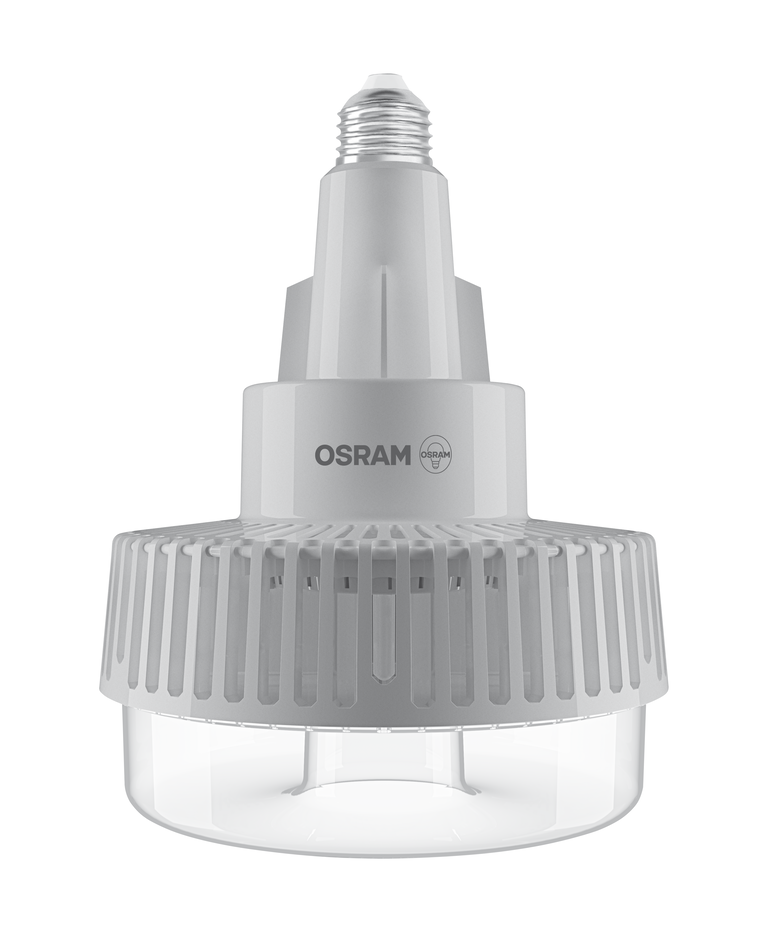

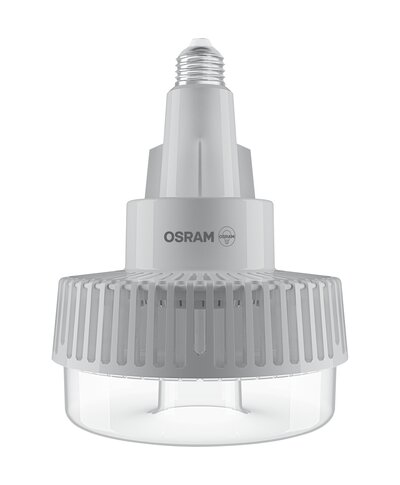

Product Image, Upright with Osram LOGO, White BG
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 TIF (45.31 MB)

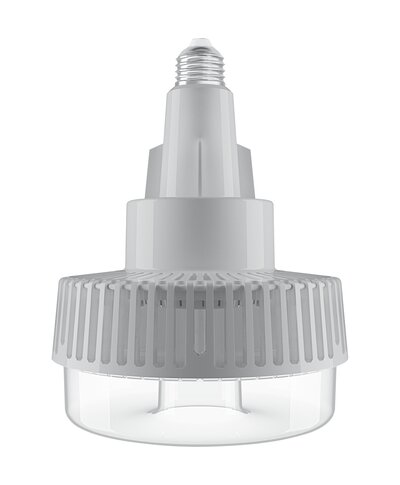

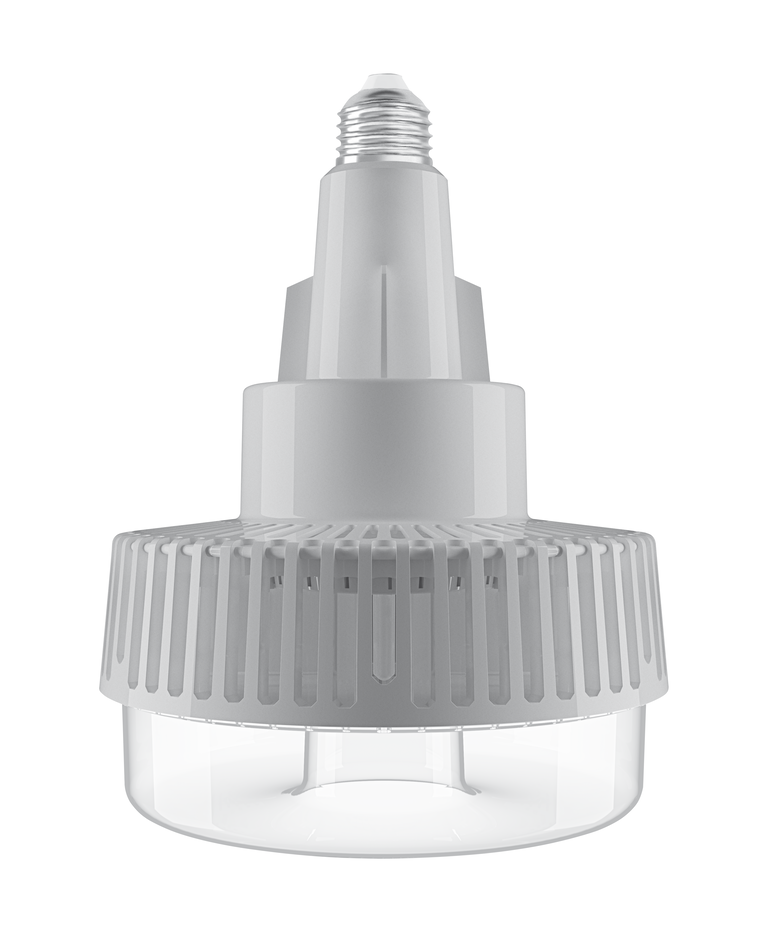

Product Image, Upright, White BG
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 TIF (45.31 MB)
Product line drawing with letters
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 SVG (40.55 KB)
Product line drawing with numbers
HQL LED HIGHBAY 20000 400 CL 140.0 W 840 E40 SVG (45.97 KB)
Prod.line drw, front, no dimensions
HQL HIGHBAY 20000 400 CL 140.0 W/840 E40 SVG (37.52 KB)
Logos and Pictos
E left SVG (1.9 KB)
Logos and Pictos
E left BW SVG (1.07 KB)
Logos and Pictos
E right SVG (1.86 KB)
Logos and Pictos
E right BW SVG (1.07 KB)
IES file (IES)
AC18722_HQILEDH13000 9 5W840 110V E40 IES (23.78 KB)
LDT file (Eulumdat)
AC18722_HQILEDH13000 9 5W840 110V E40 LDT (16.63 KB)
LDC typ polar
AC18722 HQILEDH13000 9 5W840 110V E40 SVG (350.18 KB)
LDC typ polar
AC18722_HQILEDH13000 9 5W840 110V E40 SVG (350.18 KB)
EAN SEG number STK number EFO number ELDAS number
4058075284722 8294986 4731343 3730037 941840570
