Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
HQL LED 1800 lm 16 W/2700 K E27	E27	16 W	220…240 V	50000 h	1800 lm	50 W	360 °	No

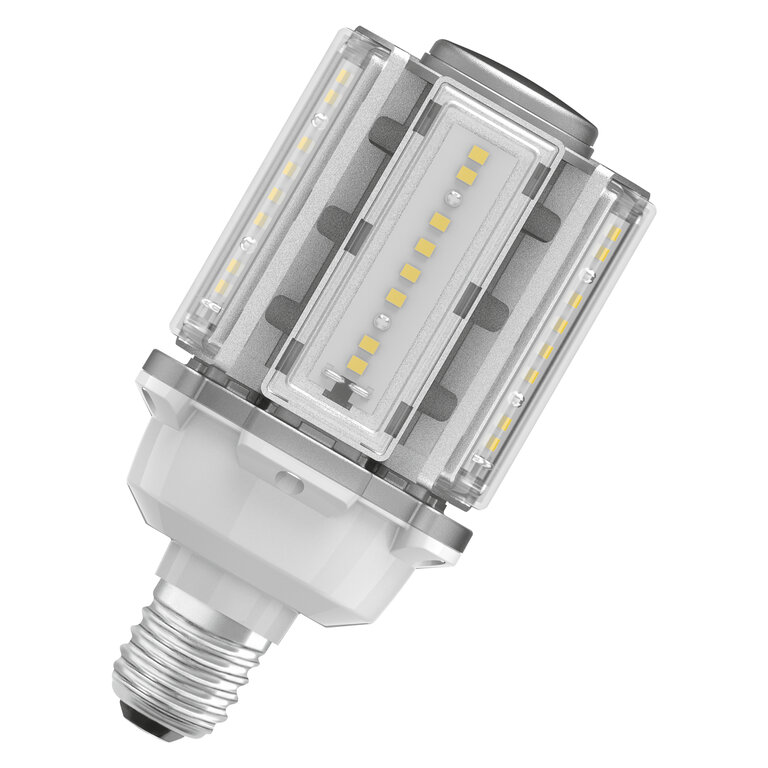

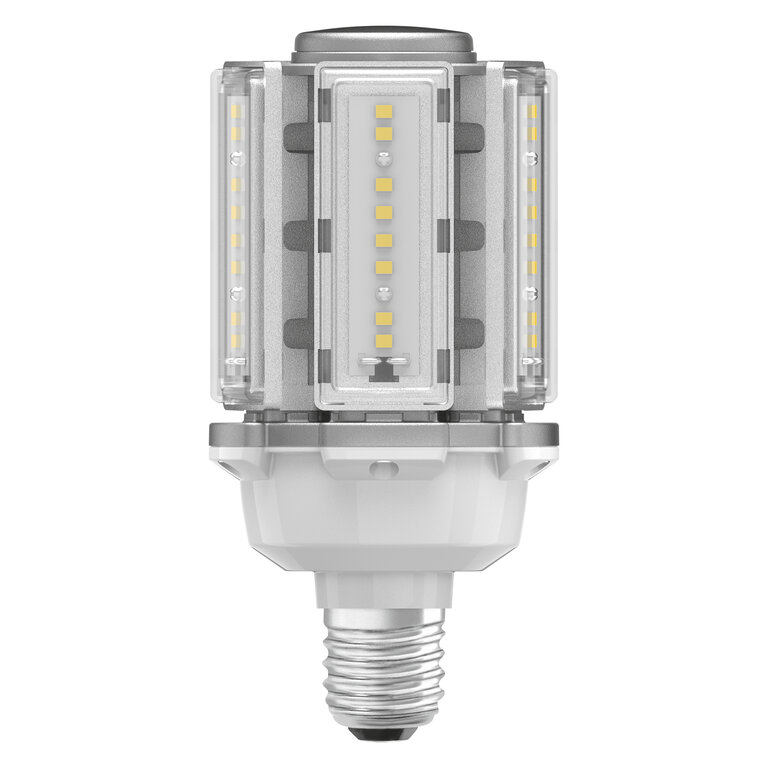

HQL LED 2000 lm 16 W/4000 K E27	E27	16 W	220…240 V	50000 h	2000 lm	50 W	360 °	No
HQL LED 2700 lm 23 W/2700 K E27	E27	23 W	220…240 V	50000 h	2700 lm	50 W	360 °	No

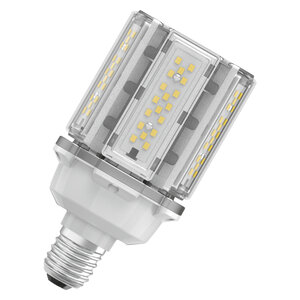

HQL LED 3000 lm 23 W/4000 K E27	E27	23 W	220…240 V	50000 h	3000 lm	50 W	360 °	No
HQL LED 3600 lm 30 W/2700 K E27	E27	30 W	220…240 V	50000 h	3600 lm	80 W	360 °	No

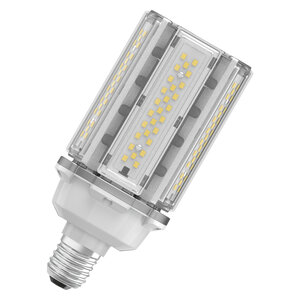

HQL LED 4000 lm 30 W/4000 K E27	E27	30 W	220…240 V	50000 h	4000 lm	80 W	360 °	No
HQL LED 5400 lm 46 W/2700 K E27	E27	46 W	220…240 V	50000 h	5400 lm	125 W	360 °	No
HQL LED 5400 lm 46 W/2700 K E40	E40	46 W	220…240 V	50000 h	5400 lm	125 W	360 °	No

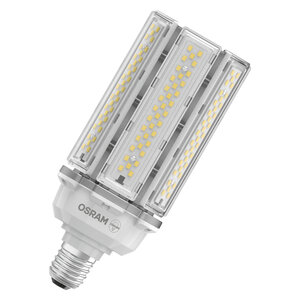

HQL LED 6000 lm 46 W/4000 K E27	E27	46 W	220…240 V	50000 h	6000 lm	125 W	360 °	No

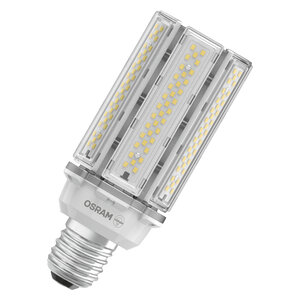

HQL LED 6000 lm 46 W/4000 K E40	E40	46 W	220…240 V	50000 h	6000 lm	125 W	360 °	No
HQL LED 11700 lm 95 W/2700 K E40	E40	95 W	220…240 V	50000 h	11700 lm	250 W	360 °	No

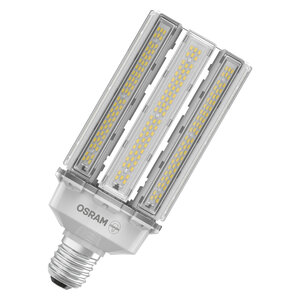

HQL LED 13000 lm 95 W/4000 K E40	E40	95 W	220…240 V	50000 h	13000 lm	250 W	360 °	No

HQL LED 1800 lm 16 W/2700 K E27

Nominal wattage	16 W
Construction wattage	16.00 W
Nominal voltage	220…240 V
Claimed equiv. conventional lamp power	50 W
Nominal current	75 mA
Type of current	AC
Inrush current	2.3 A
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Max. lamp number on MCB B10 A	80
Max. lamp number on MCB B10 A - CCG without compensation	80
Max. lamp number on MCB B16 A	128
Max. lamp number on MCB B16 A - CCG without compensation	128
Total harmonic distortion	20 %
Power factor λ	0.90

Luminous flux	1800 lm
Nominal useful luminous flux 90°	1800 lm
Luminous efficacy	112 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Warm White
Color temperature	2700 K
Color rendering index Ra	≥80
Light color	827
Standard deviation of color matching	≤6 sdcm
Rated LLMF at 6,000 h	0.80

Ambient temperature range	-20…+60 °C
Maximum temperature at tc test point	85 °C

Number of switching cycles	100000
Lumen maintenance at end of service lifetime	0.70
Rated lamp survival factor at 6,000 h	≥ 0.90

Dimmable

Energy efficiency class	A+ ¹⁾
Energy consumption	16.00 kWh/1000h
Type of protection	IP65
Standards	CE
Photobiological safety group acc. to EN62778	RG1

¹⁾ Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Order reference

HQLLED1800 16W/

Light source cap-type (or other electric interface)	E27
Length	153.00 mm
Height	75,0 mm
Width	75,0 mm

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Areas of application

Product features

Replacement for HQL: Suitable for operation with conventional control gear (CCG) for HQL or 230 V mains
Replacement for other HID: Suitable for operation with line voltage without control gear
Power factor: 0.9
Type of protection: IP65
High surge protection: up to 6 kV (L-N)

Safety advice

The bulb may be larger and heavier than the replaced bulb. Before installation it must be checked, if the luminaire and especially the holder is capable of carrying the weight of the lamp. If possible, please install the safety rope included in the package containing the lamp for the types 90 W lamps.
Not suitable for operation with ignitors.
Operation on the capacitor can lead to a reduction of the power factor of the system.
When installed horizontally, the t_c point of the lamp is located on the top side of the lamp.
Use in tight luminaires and luminaires with tight reflectors not recommended.
All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
