Professional

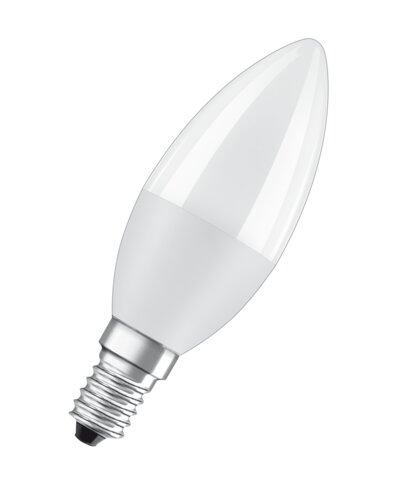

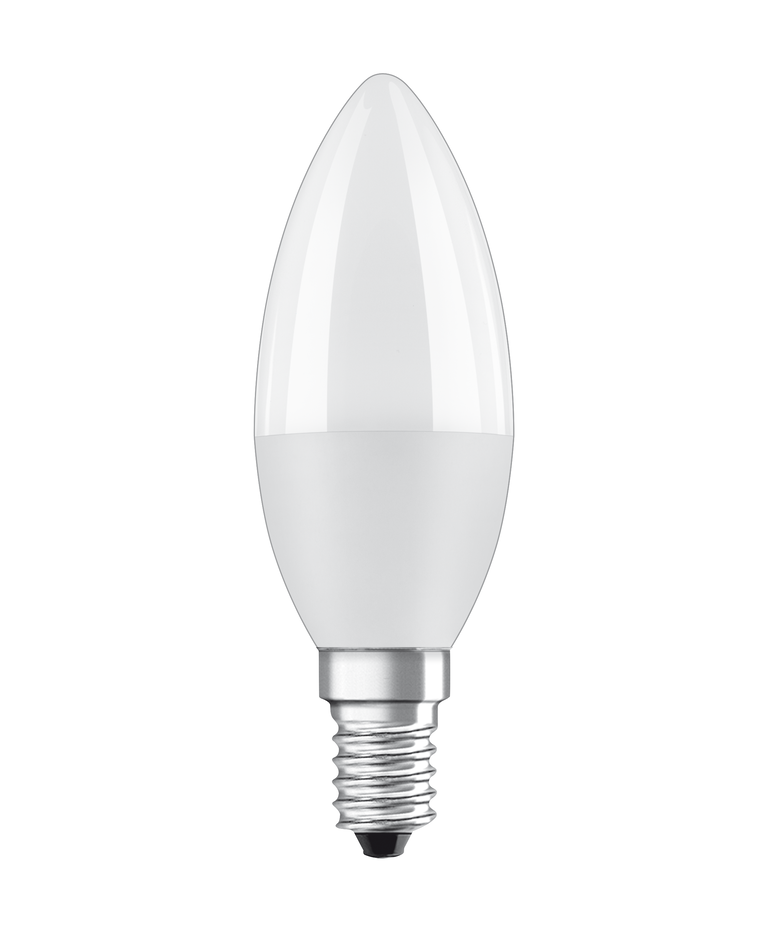

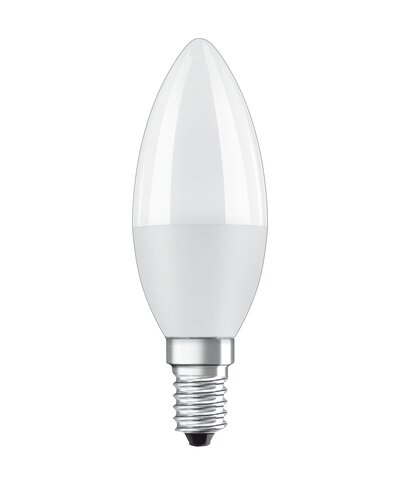

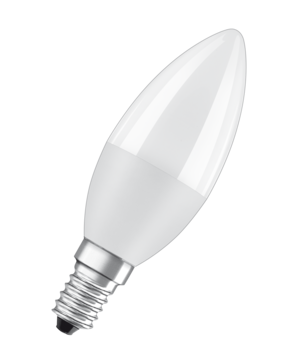

LED VALUE CLASSIC B

LED VALUE CLASSIC B

Choose your product version

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED VALUE CLAS B 5 W/3000 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 280 ° No
LED VALUE CLAS B 5 W/3000 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 200 ° No
LED VALUE CLAS B 5 W/6500 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 280 ° No
LED VALUE CLAS B 5 W/6500 K E14 GEN2 E14 5 W 100…240 V 25000 h 470 lm 25 W 200 ° No


LED VALUE CLAS B 5 W/3000 K E14 GEN2

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Simple direct replacement for conventional incandescent lamps
  • Instant 100 % light, no warm-up time

PRODUCT DETAILS

Electrical data

Nominal wattage 5 W
Construction wattage 5.00 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 25 W
Nominal current 45 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50

Photometrical data

Luminous flux 470 lm
Luminous efficacy 94 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle 280 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 100.00 mm
Diameter 37.00 mm
Maximum diameter 37 mm
Product weight 28.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20

Country-specific categorizations

Order reference LV CLB 5W/830 1

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) E14
Length 100.00 mm
Height 37.00 mm
Width 37.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lower energy consumption than incandescent or halogen lamps
  • Simple direct replacement for conventional incandescent lamps
  • Instant 100 % light, no warm-up time
Areas of application
  • General illumination
  • Domestic applications
  • Chandeliers
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional lamps
  • Not dimmable
  • Good color rendering (Ra ≥ 80) and color stability throughout the life of the lamp
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075656253 Folding box
1
38 mm x 38 mm x 105 mm 37.00 g 0.15 dm³
4058075656260 Shipping box
10
200 mm x 86 mm x 119 mm 433.00 g 2.05 dm³
