LED Retrofit CLASSIC A DIM

LED Retrofit CLASSIC A DIM

Choose your product version

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Superstar Classic A 60 Filament DIM 7W 827 Clear E27 E27 7 W 220…240 V 15000 h 806 lm 60 W 300 ° Yes

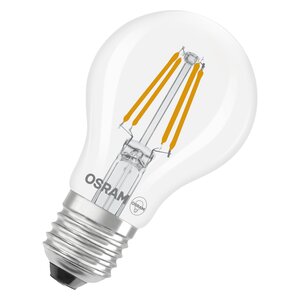

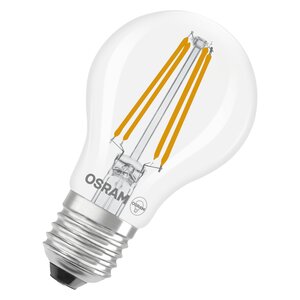

LED Superstar Classic A 60 Filament DIM 7W 827 Clear E27

Product benefits
  • Lamps with innovative LED "filament" technology
  • Lower energy consumption than incandescent or halogen lamps
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to a halogen lamp

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 42 mA
Type of current AC
Inrush current 0.055 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 190
Max. lamp number on MCB B16 A 304
Total harmonic distortion 84 %
Power factor λ > 0.50

Photometrical data

Luminous flux 806 lm
Luminous efficacy 115 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 106.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 30.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 40.6 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value, LED lamps contain several electronic components. Under unfavourable conditions these can lead to acoustic noise. In case of resonance even low noise can cause audible effect. Possible factors influencing this are the installation, the design of the lamp holder and the luminaire (acoustic resonance effect) as well as the dimmer or the transformer (harmonics or electronic resonance)

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20

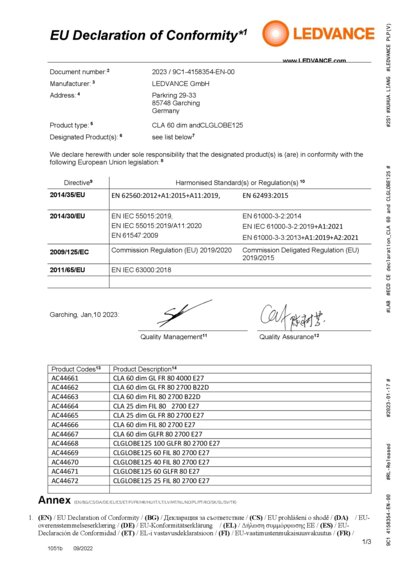

Standards CE, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

ILCOS DRAA/C-7/827-220/240-E27-60
Order reference LEDSCLA60D 7W/8

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power not applicable
Networked standby power for CLS not applicable
Claim of equivalent power Yes
Length 106.00 mm
Height 60.00 mm
Width 60.00 mm
Chromaticity coordinate x 0.463
Chromaticity coordinate y 0.420
R9 Colour rendering index >0
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor >0.5
LED light source replaces a fluorescent light source No
EPREL ID 1403367,523168,800106,1358107
Model number AC37477,AC32334,AC44666,AC24280

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Lamps with innovative LED "filament" technology
  • Lower energy consumption than incandescent or halogen lamps
  • No UV and near-IR radiation in the light beam
  • Instant 100 % light, no warm-up time
  • Can be easily fitted instead of ordinary light bulbs
  • Lower thermal output (compared with the standard reference product)
  • Design, dimensions, luminous flux comparable to a halogen lamp
Areas of application
  • Perfect for decorative installations
  • Domestic applications
  • General illumination
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Professional LED lamps for line voltage
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • Beam angle: up to 360°
  • Lifetime: up to 15,000 h
  • Lamp made of glass
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075115958 Folding box
1
60 mm x 60 mm x 145 mm 45.00 g 0.52 dm³
4058075115965 Shipping box
10
322 mm x 134 mm x 120 mm 587.00 g 5.18 dm³
4058075610705 Shipping box
6
202 mm x 134 mm x 120 mm 360.00 g 3.25 dm³
EAN EFO number
4058075115958 3730017
