Professional
LED LINE R7S

LED LINE R7S

Choose your product version

7.3W 827 Clear R7s

8W 827 Clear R7s

13W 827 Clear R7s

15W 827 Clear R7s

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Line 78 60 330° 7.3W 827 Clear R7s R7s 7.3 W 220…240 V 15000 h 806 lm 60 W 330 ° No
LED Line 78 75 330° 8W 827 Clear R7s R7s 8 W 220…240 V 15000 h 1055 lm 75 W 300 ° No

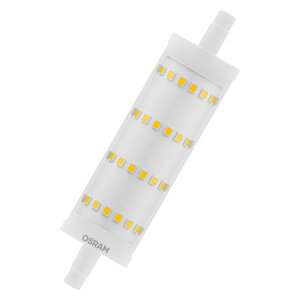

LED Line 118 100 300° 13W 827 Clear R7s R7s 13 W 220…240 V 15000 h 1521 lm 100 W 330 ° No
LED Line 118 125 300° 15W 827 Clear R7s R7s 15 W 220…240 V 15000 h 2000 lm 125 W 300 ° No


LED Line 78 60 330° 7.3W 827 Clear R7s

Product benefits
  • Fits into most R7s luminaires thanks to excentric base
  • Good all-around light emission
  • Lower thermal output (compared with the standard reference product)
  • Long lifetime of up to 15,000 h
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 7.3 W
Construction wattage 7.30 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 60 W
Nominal current 40 mA
Type of current AC
Inrush current 1.18 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 181
Max. lamp number on MCB B16 A 284
Total harmonic distortion 110 %
Power factor λ 0.50

Photometrical data

Luminous flux 806 lm
Nominal useful luminous flux 90° 806 lm
Luminous efficacy 110 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 330 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 78.00 mm
Diameter 29 mm
Maximum diameter 28 mm
Product weight 35.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 95 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) R7s
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 8.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDLI7860 7,3W/

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) R7s
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00
Networked standby power for CLS 0 W
Claim of equivalent power Yes
Length 78.00 mm
Height 29 mm
Width 29 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.50
LED light source replaces a fluorescent light source No
EPREL ID 1498585,522901,1368308
Model number AC32094,AC45782,AC19589
Product benefits
  • Fits into most R7s luminaires thanks to excentric base
  • Good all-around light emission
  • Lower thermal output (compared with the standard reference product)
  • Long lifetime of up to 15,000 h
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • General illumination within ambient temperatures from -20…+40 °C
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional R7s lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075432598 Folding box
1		 30 mm x 49 mm x 130 mm 48.00 g 0.19 dm³
4058075653481 Shipping box
6		 112 mm x 111 mm x 106 mm 280.00 g 1.32 dm³

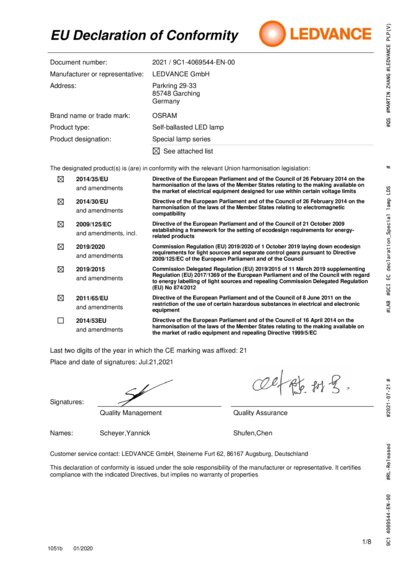

Declarations of conformity
Self-ballasted LED lam p PDF (198.47 KB)

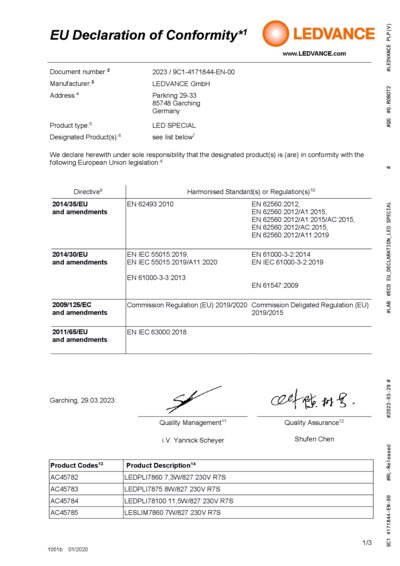

Declarations of conformity
LED LINE SPECIAL PDF (375.83 KB)

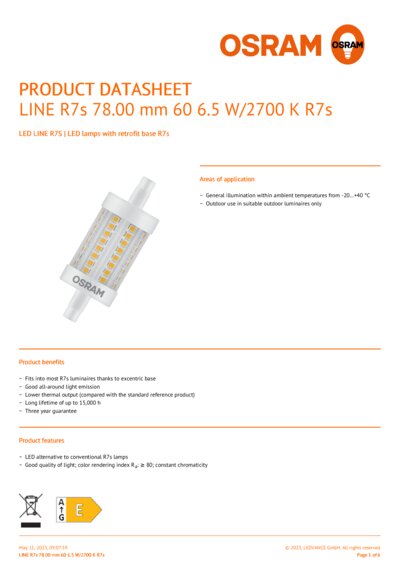

PRODUCT DATASHEET
LINER7s78.00mm606.5W27 00KR7sen PDF (231.46 KB)
Product Image, Diagonal with OSRAM LOGO, White BG
LED LINE R7s 78mm TIF (16.64 MB)

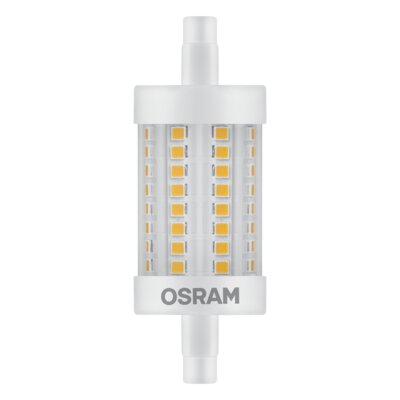

Product Image, Diagonal, White BG
LED LINE R7s 78mm TIF (1.29 MB)
Product Image, Upright with Osram LOGO, White BG
LED LINE R7s 78mm PSD (12.12 MB)

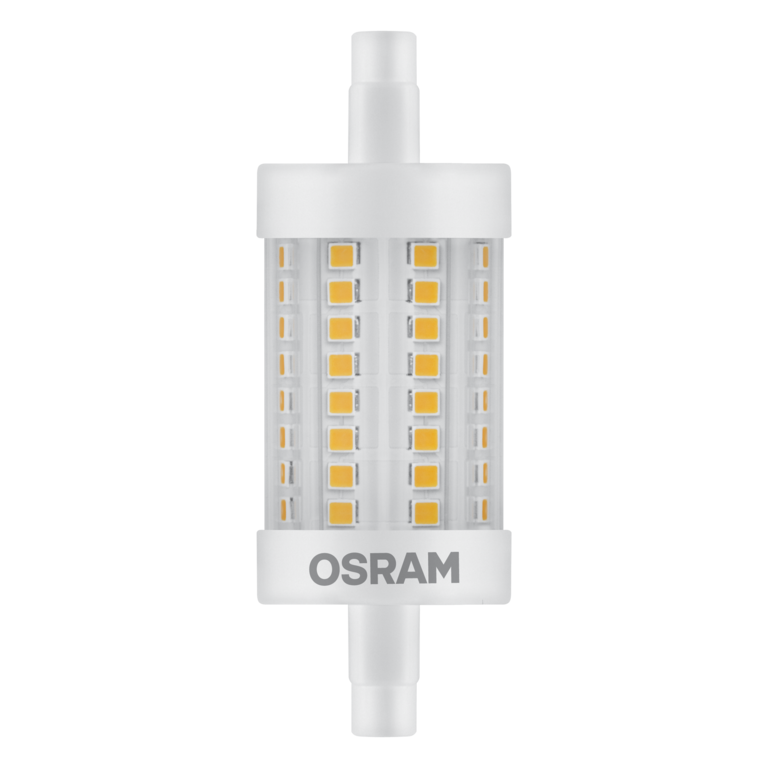

Product Image, Upright, White BG
LED LINE R7s 78mm TIF (1.52 MB)
Product line drawing with letters
PG LED LINE R7s 78mm SVG (30.18 KB)
Product line drawing with numbers
LED LINE R7s 78mmx29mm SVG (36.74 KB)
Product line drawing - technical
LED LINE R7s 78mmx29mm SVG (29.41 KB)

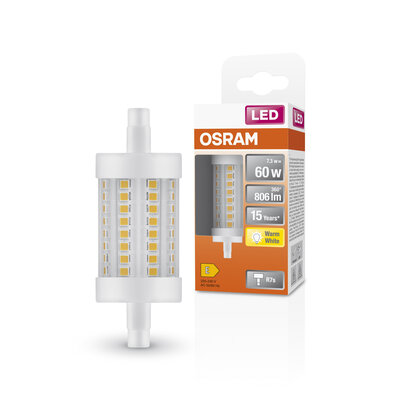

Combo Shot = Product Beauty Shot + Packaging Image
LED ST LINE 78 60 7.3W 827 CL R7S MiCh JPG (1.49 MB)

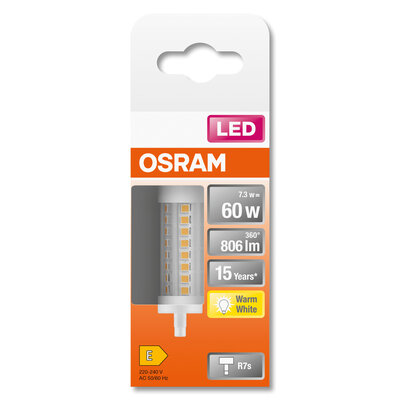

Packaging image, frontal
LED ST LINE 78 60 7W 8 27 CL R7S MiCh TIF (1.75 MB)

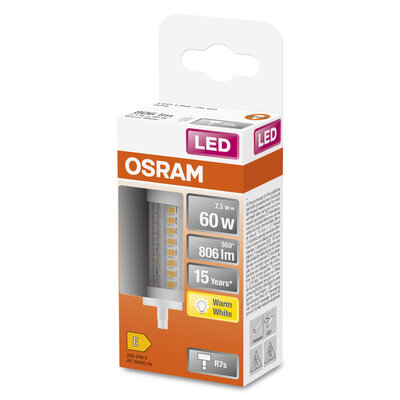

Packaging image, spacial
LED ST LINE 78 60 7W 8 27 CL R7S MiCh TIF (1.42 MB)
Energy label
EL-4058075432598-AC320 94 PDF (21.33 KB)
Energy label
EL-4058075432598-AC457 82 PDF (21.45 KB)
Energy label
EL-4058075432598-AC195 89 PDF (21.51 KB)
Logos and Pictos
E left SVG (1.9 KB)
Logos and Pictos
E left BW SVG (1.07 KB)
Logos and Pictos
E right SVG (1.86 KB)
Logos and Pictos
E right BW SVG (1.07 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 2700K PNG (103.24 KB)
