Professional

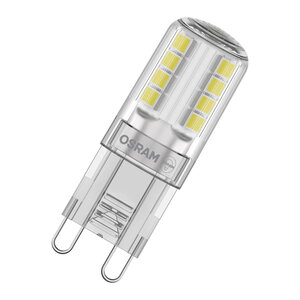

LED PIN G9

LED PIN G9

Choose your product version

1.9W 827 Clear G9

2.6W 827 Clear G9

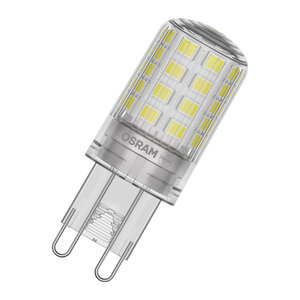

4.2W 827 Clear G9

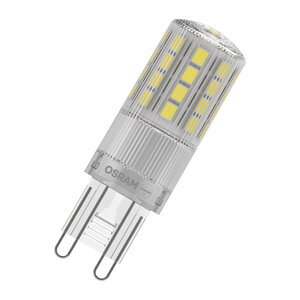

4.5W 827 Clear G9

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED PIN 20 300° 1.9W 827 Clear G9 G9 1.9 W 220…240 V 15000 h 200 lm 20 W 300 ° No
LED PIN 30 300° 2.6W 827 Clear G9 G9 2.6 W 220…240 V 15000 h 320 lm 30 W 300 ° No
LED PIN 40 300° 4.2W 827 Clear G9 G9 4.2 W 220…240 V 15000 h 470 lm 40 W 300 ° No
LED PIN 48 320° 4.5W 827 Clear G9 G9 4.5 W 220…240 V 15000 h 600 lm 48 W 320 ° No


LED PIN 20 300° 1.9W 827 Clear G9

Product benefits
  • Good all-around light emission
  • Long lifetime of up to 15,000 h
  • Ideal for decorative and free-burning applications
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 1.9 W
Construction wattage 1.90 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 20 W
Nominal current 16 mA
Type of current AC
Inrush current 5.85 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 102
Max. lamp number on MCB B16 A 128
Total harmonic distortion ≤ 200 %
Power factor λ > 0.40

Photometrical data

Luminous flux 200 lm
Nominal useful luminous flux 90° 200 lm
Luminous efficacy 105 lm/W
Lumen main.fact.at end of nom.life time 0.93
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 43.00 mm
Diameter 14.00 mm
Maximum diameter 14 mm
Product weight 5.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 84.1 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.93

Additional product data

Base (standard designation) G9
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 2.00 kWh/1000h
Type of protection IP20
Standards CE, EAC, UKCA
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDPIN20 CL 1,9

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G9
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Claim of equivalent power Yes
Length 43.00 mm
Height 14.00 mm
Width 14.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 6
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.4
LED light source replaces a fluorescent light source No
EPREL ID 1403251,522874,1856551
Product benefits
  • Good all-around light emission
  • Long lifetime of up to 15,000 h
  • Ideal for decorative and free-burning applications
  • Three year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • LED alternative to conventional high voltage lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075449831 Folding box
2		 20 mm x 49 mm x 95 mm 17.00 g 0.09 dm³
4058075432307 Folding box
1		 20 mm x 49 mm x 95 mm 12.00 g 0.09 dm³
4058075626317 Shipping box
6		 109 mm x 79 mm x 104 mm 88.00 g 0.90 dm³
4058075626416 Shipping box
12		 109 mm x 79 mm x 104 mm 134.00 g 0.90 dm³
4058075432314 Shipping box
10		 119 mm x 109 mm x 104 mm 151.00 g 1.35 dm³
4058075449855 Shipping box
160
4058075626324 Shipping box
48		 236 mm x 176 mm x 237 mm 1154.00 g 9.84 dm³
4058075626423 Shipping box
96		 236 mm x 176 mm x 237 mm 1394.00 g 9.84 dm³
4058075432321 Shipping box
80

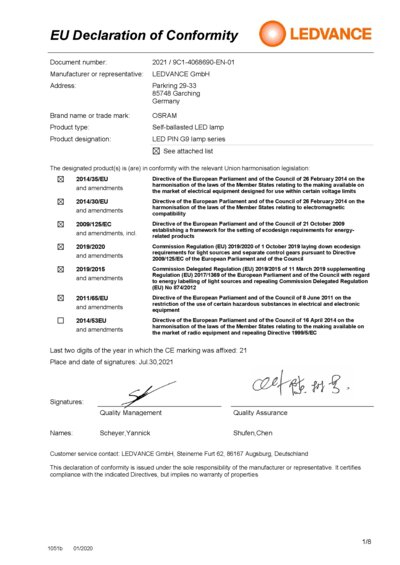

Declarations of conformity
LED PIN 40 NON DIM G9 PDF (282.51 KB)
Declarations of conformity
LED PIN G9 PDF (301.4 KB)

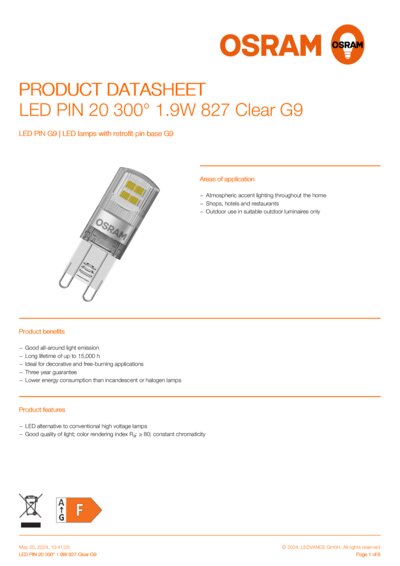

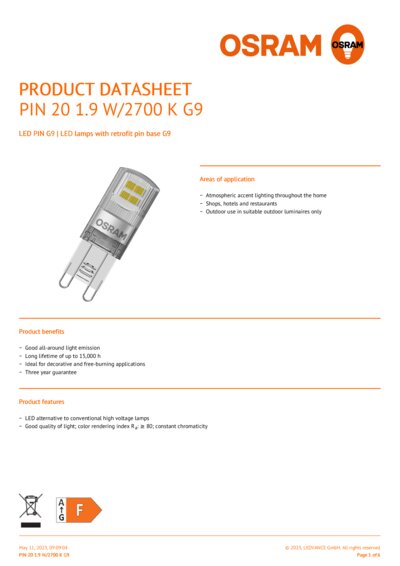

PRODUCT DATASHEET
PIN201.9W2700KG9en PDF (505.28 KB)
PRODUCT DATASHEET
PIN201.9W2700KG9en PDF (504.78 KB)
Product Datasheet -> old version of Product
LEDPIN20300°1.9W827Cle arG9en PDF (507.28 KB)
Product Datasheet -> old version of Product
LEDPIN20300°1.9W827Cle arG9en PDF (507.14 KB)

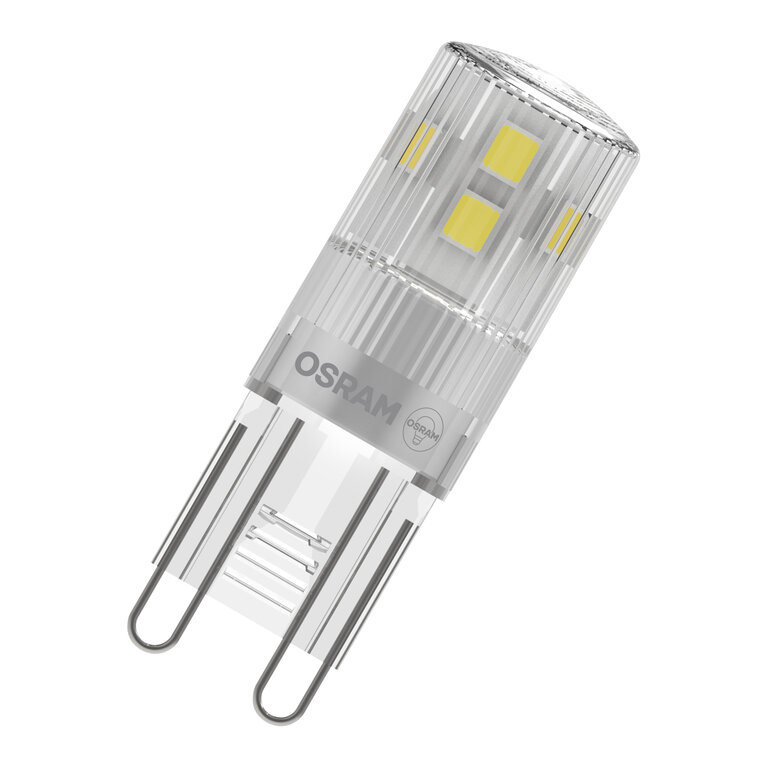

Product Image, Diagonal with OSRAM LOGO, White BG
LED PIN20 230V Clear G 9 Plastic JPG (1.25 MB)

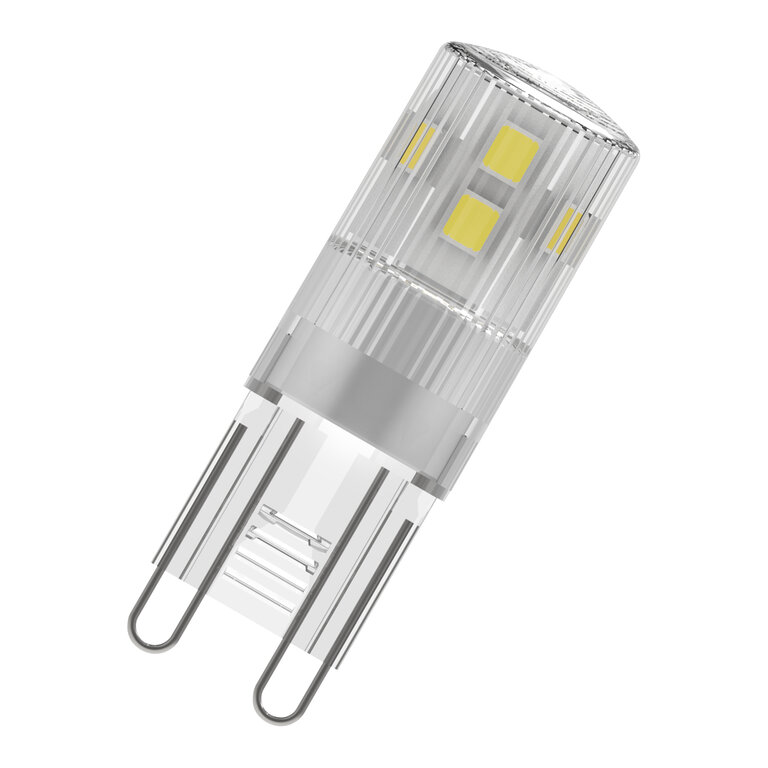

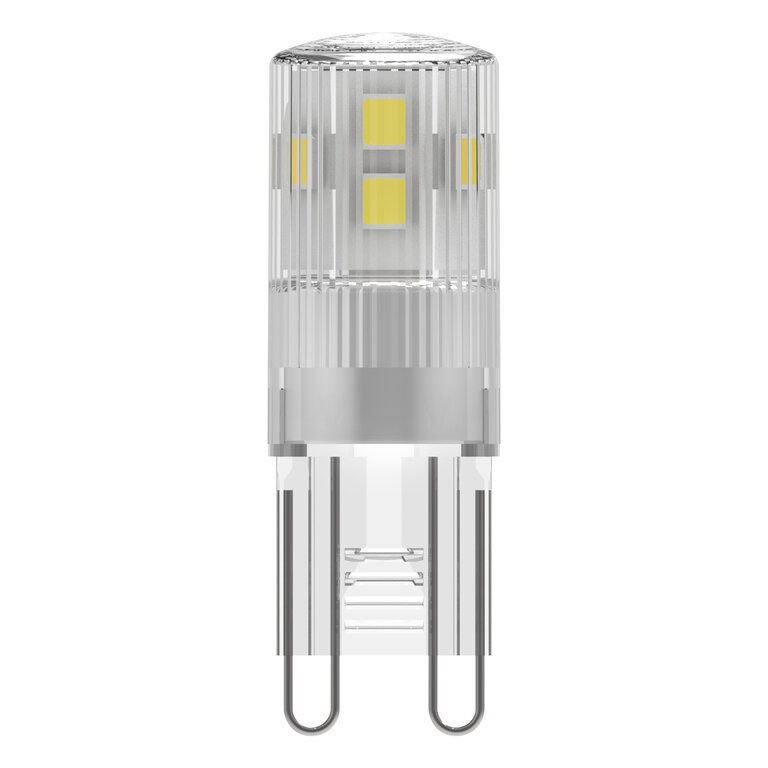

Product Image, Diagonal, White BG
LED PIN20 230V Clear G 9 Plastic JPG (1.24 MB)

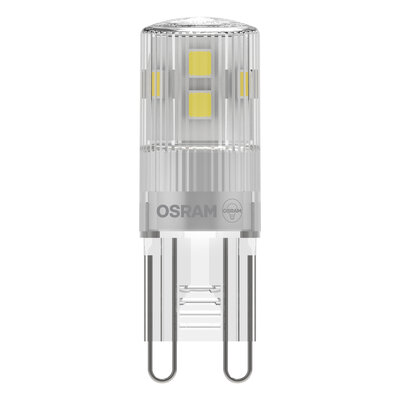

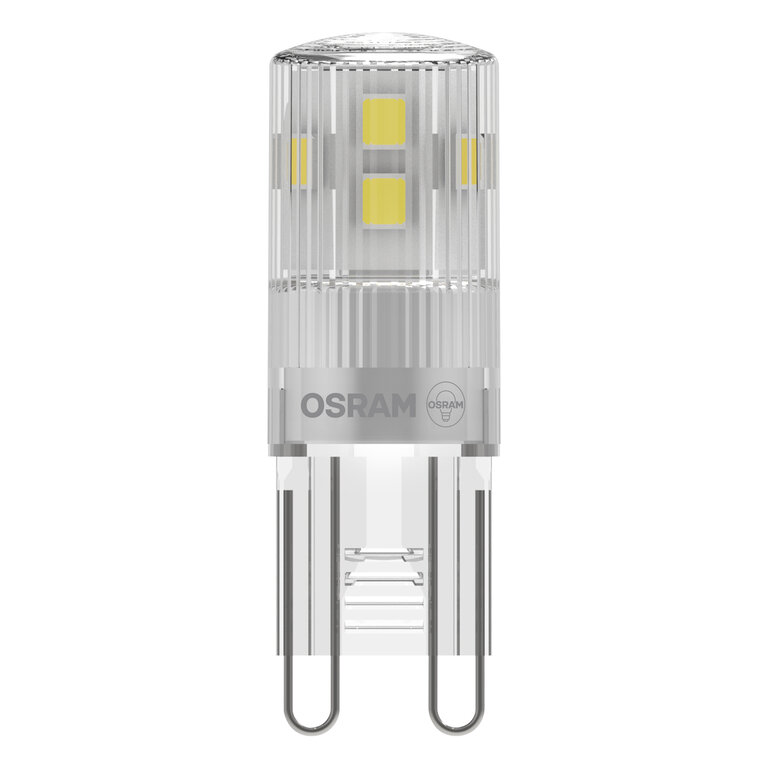

Product Image, Upright with Osram LOGO, White BG
LED PIN20 230V Clear G 9 Plastic JPG (1.1 MB)
Product Image, Upright, White BG
LED PIN20 230V Clear G 9 Plastic JPG (1.09 MB)
Product line drawing with letters
LED PIN20 230V Clear G 9 Plastic SVG (10.39 KB)
Product line drawing with numbers
LED PIN20 230V Clear G 9 Plastic SVG (15.93 KB)
Product line drawing - technical
LED PIN20 230V Clear G 9 Plastic SVG (6.22 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LEDPIN20 CL 1,9W-827 2 30V G9 FS1 OSRAM JPG (955.56 KB)

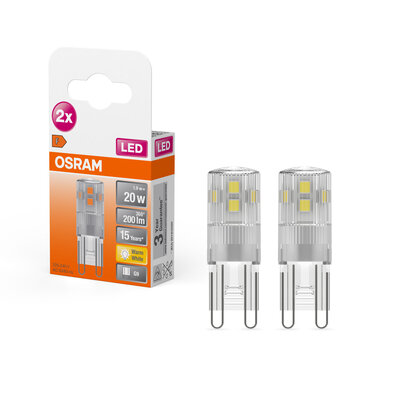

Combo Shot = Product Beauty Shot + Packaging Image
FC2 LED ST PIN 20 1.9W 827 CL G9 JPG (1.06 MB)

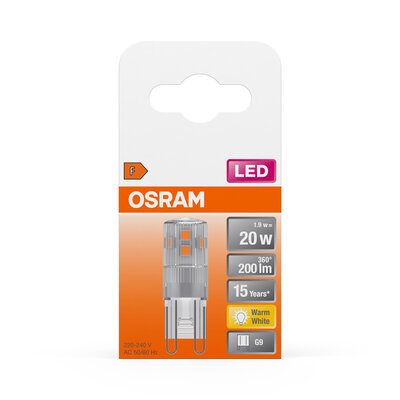

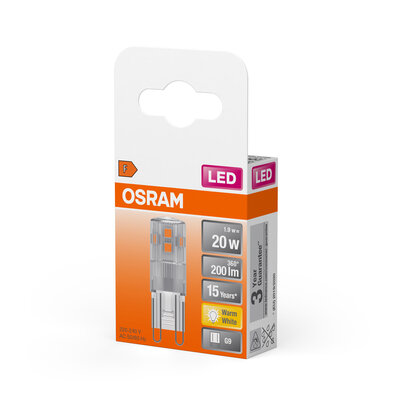

Packaging image, frontal
LED ST PIN 20 1.9W 827 CL G9 MiCh TIF (818.36 KB)

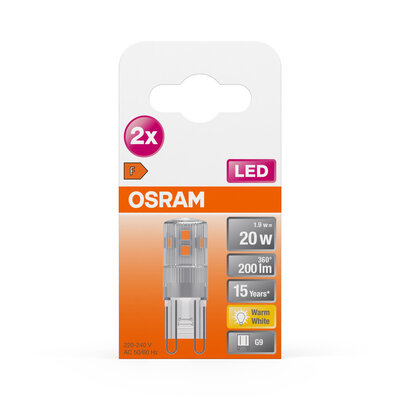

Packaging image, frontal
LED ST PIN 20 1.9W 827 CL G9 MiCh TIF (837.84 KB)

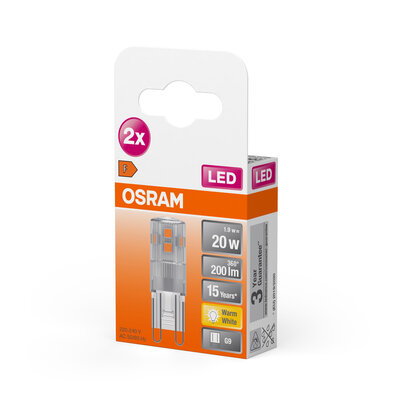

Packaging image, spacial
LED ST PIN 20 1.9W 827 CL G9 MiCh TIF (861.48 KB)
Packaging image, spacial
LED ST PIN 20 1.9W 827 CL G9 MiCh TIF (879.12 KB)
Energy label
EL-4058075432307-AC321 09 PDF (21.28 KB)
Energy label
EL-4058075432307-AC247 51 PDF (21.21 KB)
Energy label
EL-4058075432307-AC589 45 PDF (21.58 KB)
Energy label
EL-4058075449831-AC321 09 PDF (21.28 KB)
Energy label
EL-4058075449831-AC247 51 PDF (21.21 KB)
Energy label
EL-4058075449831-AC589 45 PDF (21.58 KB)
Logos and Pictos
F left SVG (1.83 KB)
Logos and Pictos
F left BW SVG (1.07 KB)
Logos and Pictos
F right SVG (1.81 KB)
Logos and Pictos
F right BW SVG (1.06 KB)

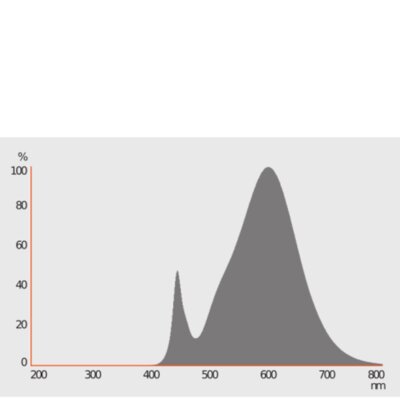

Spectral power distribution
349927_2700K_Evl_5630. eps PNG (83.87 KB)
EAN EFO number
4058075432307 3730098
