PARATHOM® DIM LED PIN G9

PARATHOM DIM LED PIN G9

Choose your product version

32 3.5 W/2700 K G9

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
P DIM PIN 32 3.5 W/2700 K G9 G9 3.5 W 220…240 V 25000 h 350 lm 32 W 300 ° Yes


P DIM PIN 32 3.5 W/2700 K G9

Product benefits
  • Good all-around light emission
  • Very long lifetime of up to 25,000 h
  • Ideal for decorative and free-burning applications
  • Five year guarantee
  • Lower energy consumption than incandescent or halogen lamps
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 3.5 W
Construction wattage 3.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 32 W
Nominal current 16 mA
Type of current AC
Inrush current 0.02 A
Operating frequency 50 Hz
Mains frequency 50 Hz
Power factor λ 0.90

Photometrical data

Luminous flux 350 lm
Nominal useful luminous flux 90° 350 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 58.00 mm
Diameter 20,0 mm
Maximum diameter 20 mm
Product weight 10.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 88 °C

Lifespan

Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G9
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear

Capabilities

Dimmable Yes

Certificates & Standards

Energy efficiency class A++ 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, CB, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)

Country-specific categorizations

ILCOS DRT/C-3,5/827-220-240-G9-20/58
Order reference LEDPPIN32D CL 3

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G9
Length 58.00 mm
Height 20,0 mm
Width 20,0 mm
Product benefits
  • Good all-around light emission
  • Very long lifetime of up to 25,000 h
  • Ideal for decorative and free-burning applications
  • Five year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • LED alternative to high voltage halogen lamps
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075811553 Folding box
1		 37 mm x 140 mm x 120 mm 15.00 g 0.62 dm³
4058075811560 Shipping box
20		 150 mm x 122 mm x 77 mm 301.00 g 1.41 dm³
4058075042520 Shipping box
120		 256 mm x 160 mm x 248 mm 2151.00 g 10.16 dm³
Declarations of conformity

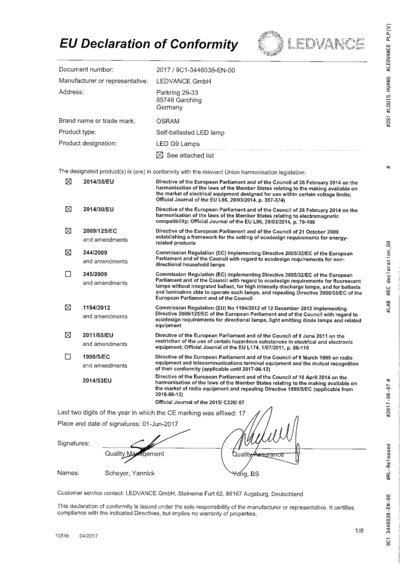

EC declaration G9 20, G9 30, G9 40, G9 32DIM PDF (599.63 KB)

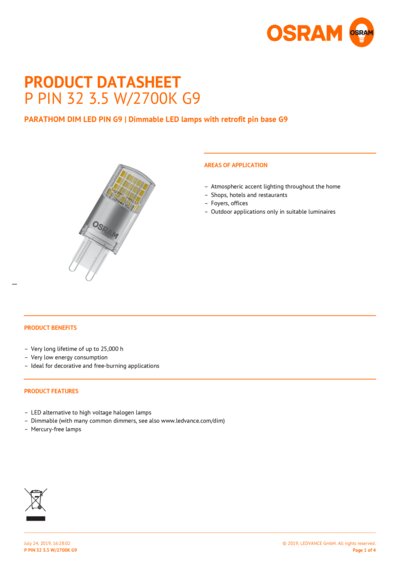

PRODUCT DATASHEET
P PIN 32 3.5 W 2700K G 9 DATASHEET PDF (234.38 KB)

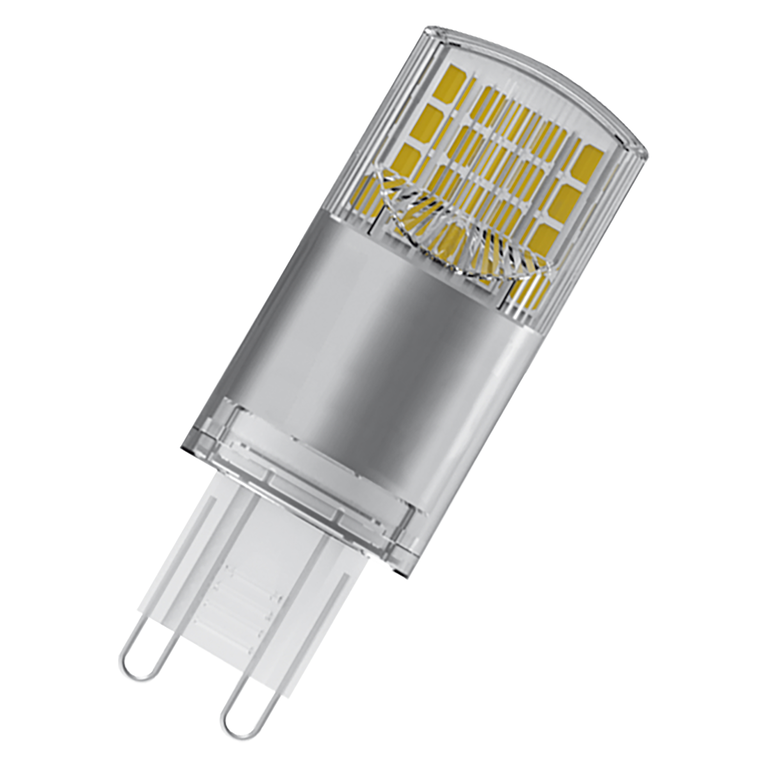

Product Image, Diagonal with OSRAM LOGO, White BG
LED PIN 40 32 DIM G9 C L TIF (1.28 MB)
Product Image, Diagonal, White BG
LED PIN 40 32 DIM G9 C L TIF (1.27 MB)

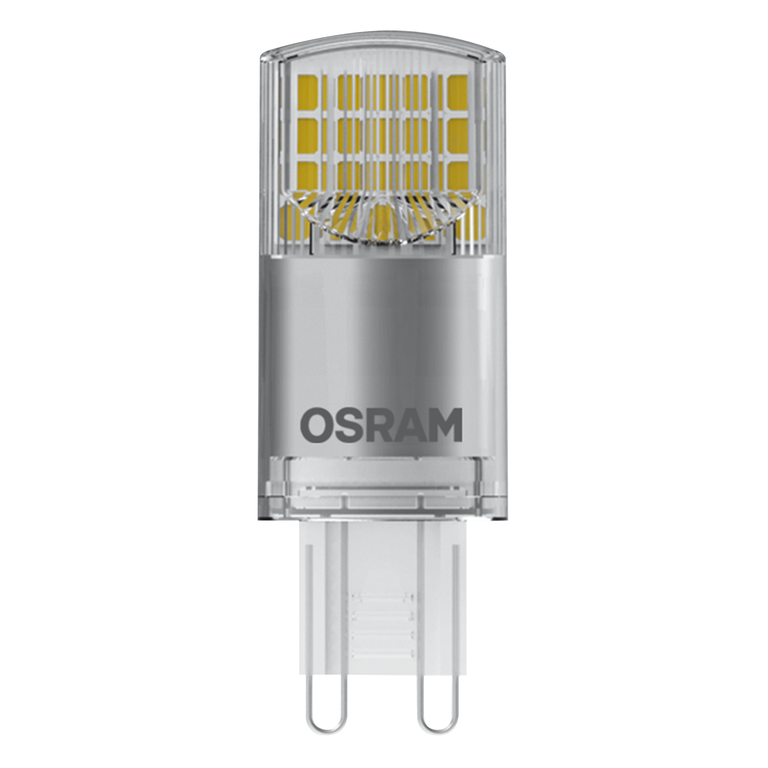

Product Image, Upright with Osram LOGO, White BG
LED PIN 40 + 32 DIM G9 clear TIF (26.18 MB)

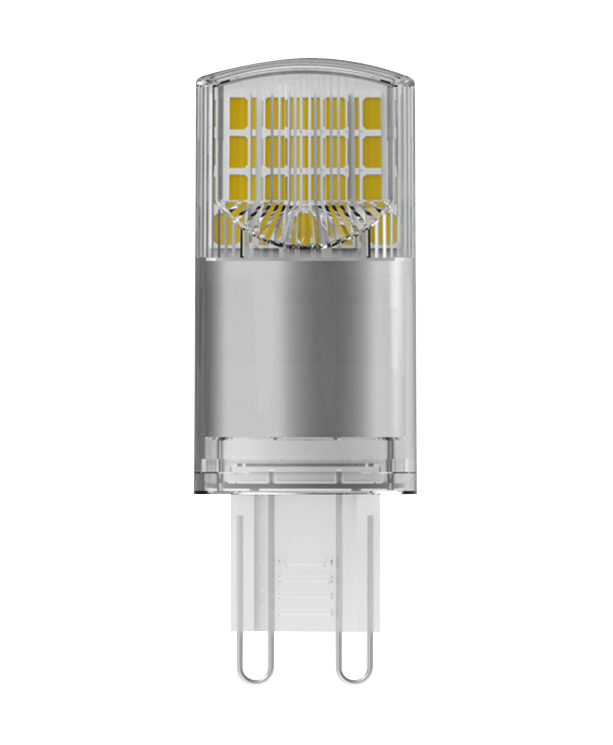

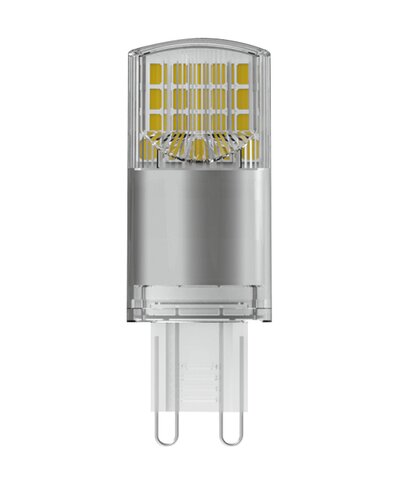

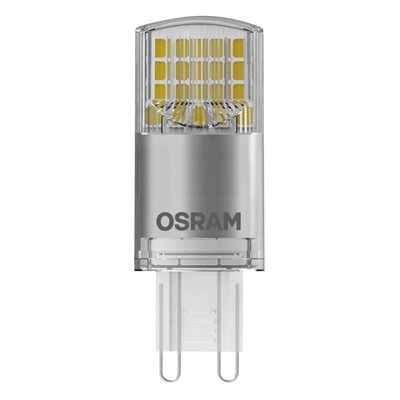

Product Image, Upright, White BG
LED PIN 40 + 32 DIM G9 clear TIF (1.39 MB)

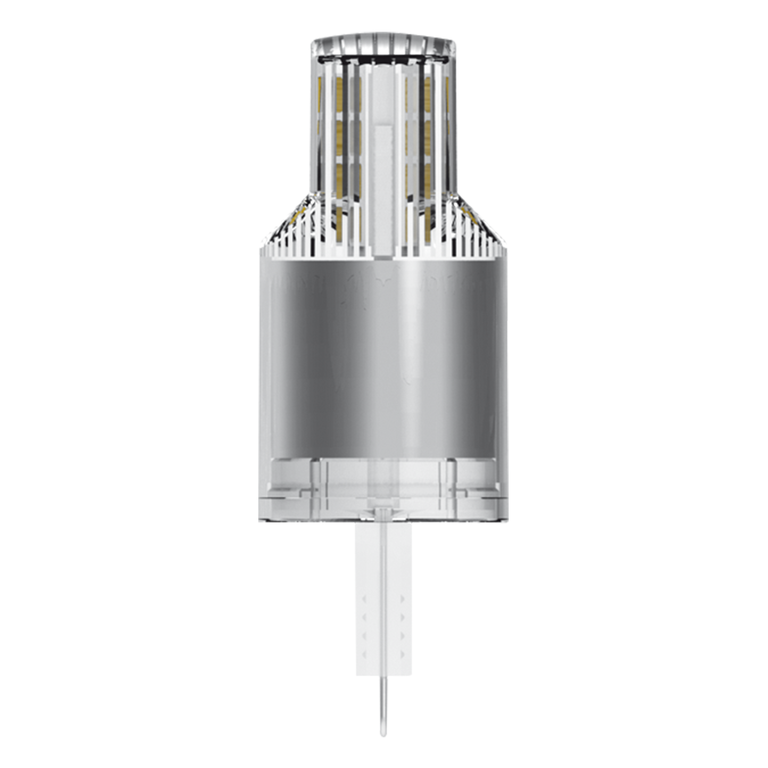

Product Image, Upright, White BG, Alternativ Image
LED PIN 40 + 32 DIM G9 clear TIF (26.18 MB)
Product line drawing with letters
LED PIN 40 + 32 DIM G9 clear SVG (7.58 KB)
Packaging image, frontal
PARA DIM PIN 32 3.5W 8 27 CL G9 MiCh Front TIF (2.54 MB)
Packaging image, spacial
PARA DIM PIN 32 3.5W 8 27 CL G9 MiCh Side TIF (3.45 MB)
Logos and Pictos
F left SVG (1.83 KB)
Logos and Pictos
F left BW SVG (1.07 KB)
Logos and Pictos
F right SVG (1.81 KB)
Logos and Pictos
F right BW SVG (1.06 KB)
EAN SEG number STK number EFO number ELDAS number
4058075811553 8293102 4730952 3760182 941159770
