Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Beam angle	Dimmable
SP T8 CC 20 W/ 1200 mm	G13	20 W	100…240 V	50000 h	1800 lm	110 °	No
SP T8 CC 20 W/1660 K 1200 mm	G13	20 W	100…240 (NO STX V	25000 h	1800 lm	40 W	110 °	No

SP T8 CC 20 W/ 1200 mm

Product benefits

Excellent UV filter at 520 nm
Short payback period thanks to low energy consumption and maintenance costs
Very long lifetime of up to 25,000 h
Large input voltage range: 100…240 Vac

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	20 W
Construction wattage	20.00 W
Nominal voltage	100…240 V
Nominal current	184 mA
Type of current	AC
Operating frequency	50/60 Hz
Mains frequency	50/60 Hz
Power factor λ	0.90

Photometrical data

Luminous flux	1800 lm
Luminous efficacy	90 lm/W
Lumen main.fact.at end of nom.life time	0.70
Light color (designation)	Yellow
Standard deviation of color matching	≤6 sdcm

Light technical data

Beam angle	110 °
Starting time	< 0.5 s

Dimensions & Weight

Overall length	1213.60 mm
Diameter	28.00 mm
Product weight	137.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+45 °C
Maximum temperature at tc test point	95 °C

Lifespan

Number of switching cycles

100000

Additional product data

Base (standard designation)	G13
Mercury content	0.0 mg

Capabilities

Dimmable

Country-specific categorizations

Order reference

LEDSPT8-1.2M20W

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface)	G13
Length	1213.60 mm
Height	28.00 mm
Width	28.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Excellent UV filter at 520 nm
Short payback period thanks to low energy consumption and maintenance costs
Very long lifetime of up to 25,000 h
Large input voltage range: 100…240 Vac

Areas of application

Microchip fabrication plants
Where UV and blue components have to be reduced to the absolute minimum

Product features

LED alternative to conventional lamps
Luminous efficacy: up to 90 lm/W
Mercury-free and RoHS compliant

Safety advice

Replacement required after reaching the average service life (L70/B50).
Under standard conditions acc. IEC (natural aging, 25 - 40°C ambient temperature), a typical increase of the emitted radiation power in the wavelength range < 520 nm about 3 mW/klm per 10,000 hours of operation was determined. This corresponds to approx. 0.1% of the total emitted radiation power. This increase depends on the specific operation conditions. For applications in photo sensitive areas, routine maintenance is necessary. This must include verification of the amount of short wavelength light emitted, and, if required, lamp replacement.

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075404823	Folding box 1	30 mm x 30 mm x 1,222 mm	200.00 g	1.10 dm³
4058075404830	Shipping box 25	1,262 mm x 172 mm x 180 mm	5779.00 g	39.07 dm³

Product images and graphics

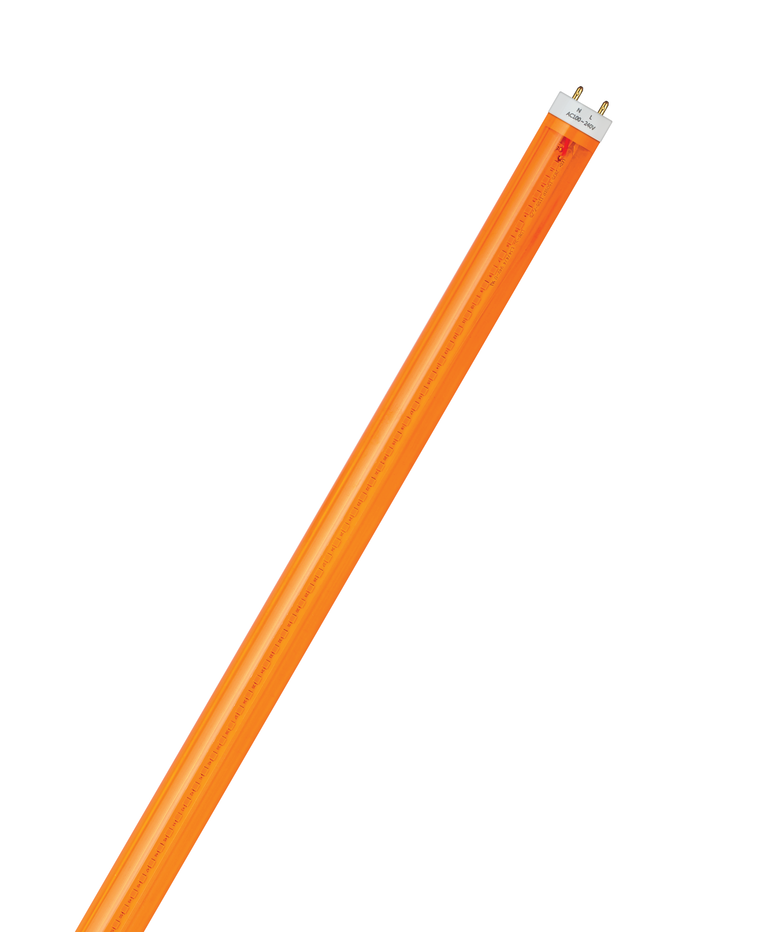

Product Image, Diagonal, White BG
LED SP T8 1.2M Yellow G13 TIF (47.52 MB)

Prod.line drw, front, no dimensions
LED STAR+ T8 1.2M G13 SVG (3.73 KB)

LED STAR+ CHIP Control T8

20 W/ 1200 mm

20 W/1660 K 1200 mm
