Professional
LED TUBE® T9 EM

LED TUBE T9 EM

Choose your product version

212 mm 11 W 830

212 mm 11 W 840

212 mm 11 W 865

300 mm 16 W 830

300 mm 16 W 840

300 mm 16 W 865

400 mm 20 W 830

400 mm 20 W 840

400 mm 20 W 865

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T9 C 22 EM 212 mm 11 W 830 G10q 11 W 220…240 V 15000 h 1170 lm 22 W › 110.00 ° No
LED TUBE T9 C 22 EM 212 mm 11 W 840 G10q 11 W 220…240 V 15000 h 1300 lm 22 W › 110.00 ° No
LED TUBE T9 C 22 EM 212 mm 11 W 865 G10q 11 W 220…240 V 15000 h 1300 lm 22 W › 110.00 ° No
LED TUBE T9 C 32 EM 300 mm 16 W 830 G10q 16 W 220…240 V 15000 h 1800 lm 32 W › 110.00 ° No
LED TUBE T9 C 32 EM 300 mm 16 W 840 G10q 16 W 220…240 V 15000 h 2000 lm 32 W › 110.00 ° No
LED TUBE T9 C 32 EM 300 mm 16 W 865 G10q 16 W 220…240 V 15000 h 2000 lm 32 W › 110.00 ° No
LED TUBE T9 C 40 EM 400 mm 20 W 830 G10q 20 W 220…240 V 15000 h 2250 lm 40 W › 110.00 ° No
LED TUBE T9 C 40 EM 400 mm 20 W 840 G10q 20 W 220…240 V 15000 h 2500 lm 40 W › 110.00 ° No
LED TUBE T9 C 40 EM 400 mm 20 W 865 G10q 20 W 220…240 V 15000 h 2500 lm 40 W › 110.00 ° No


LED TUBE T9 C 22 EM 212 mm 11 W 830

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 50% (compared to T9 fluorescent lamp on CCG)
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 11 W
Construction wattage 11.00 W
Nominal voltage 220…240 V
Operating mode CCG, AC Mains
Nominal current 81 mA
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Total harmonic distortion < 42 %
Power factor λ > 0.50

Photometrical data

Luminous flux 1170 lm
Luminous efficacy 106 lm/W
Light color (designation) Warm white
Color temperature 3000 K
Color rendering index Ra > 80
Light color 830
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle › 110.00 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 212.00 mm
Diameter 30.00 mm
Tube diameter 30 mm
Product weight 166.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Lifespan

Number of switching cycles 10000

Additional product data

Base (standard designation) G10q
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LEDTUBE T9C EM

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G10q
Length 212.00 mm
Height 30.00 mm
Width 30.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 50% (compared to T9 fluorescent lamp on CCG)
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Corridors, stairways, parking garages
  • Domestic applications
  • Decorative applications
Product features
  • LED alternative to classic T9 fluorescent lamps in CCG luminaires
  • Uniform illumination
  • Lifetime: up to 15,000 h
  • Mercury-free and RoHS compliant
Safety advice
  • Not suitable for operation with electronic control gear.
References / Links
  • For current information see www.ledvance.com/osram-led-tube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854332289 Folding box
1		 38 mm x 220 mm x 260 mm 242.00 g 2.17 dm³
4099854332296 Shipping box
10		 397 mm x 251 mm x 300 mm 2840.00 g 29.89 dm³

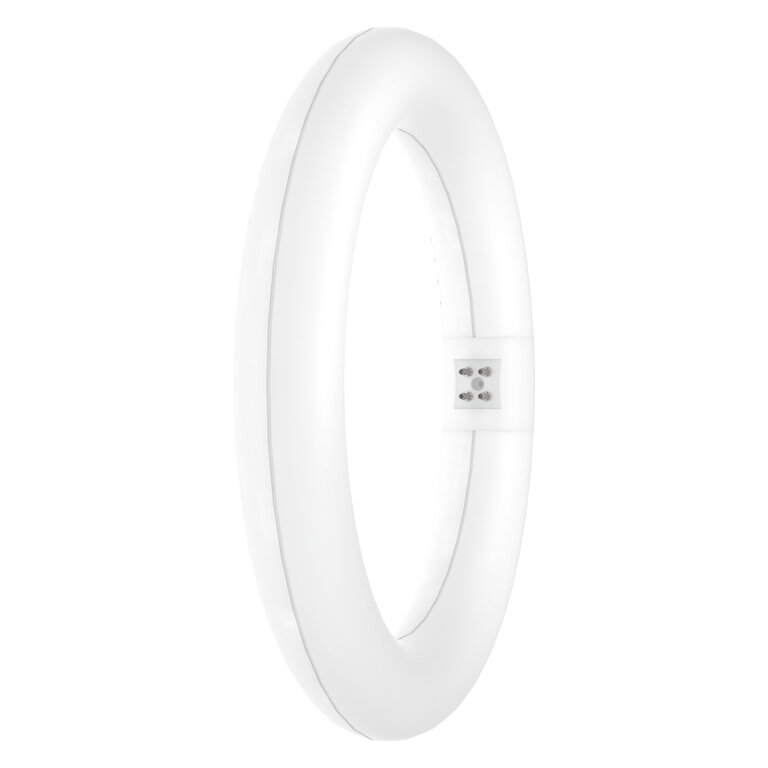

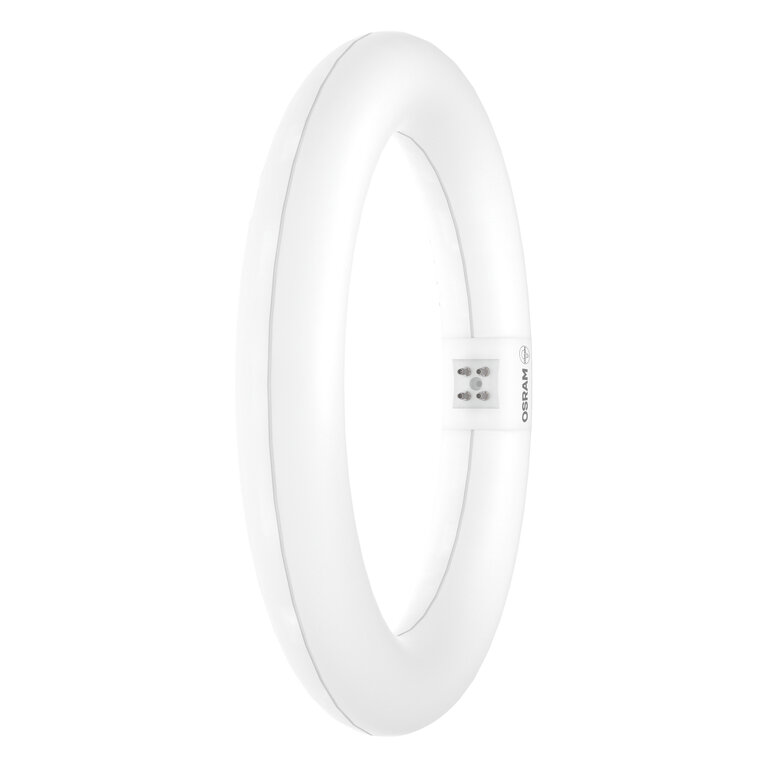

Product Image, Diagonal with OSRAM LOGO, White BG
LEDTUBE T9C EM 22 G10Q JPG (1 MB)

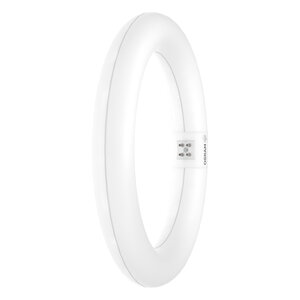

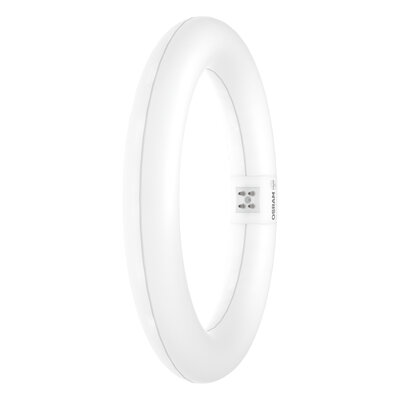

Product Image, Diagonal, White BG
LEDTUBE T9C EM 22 12W G10Q JPG (448.36 KB)

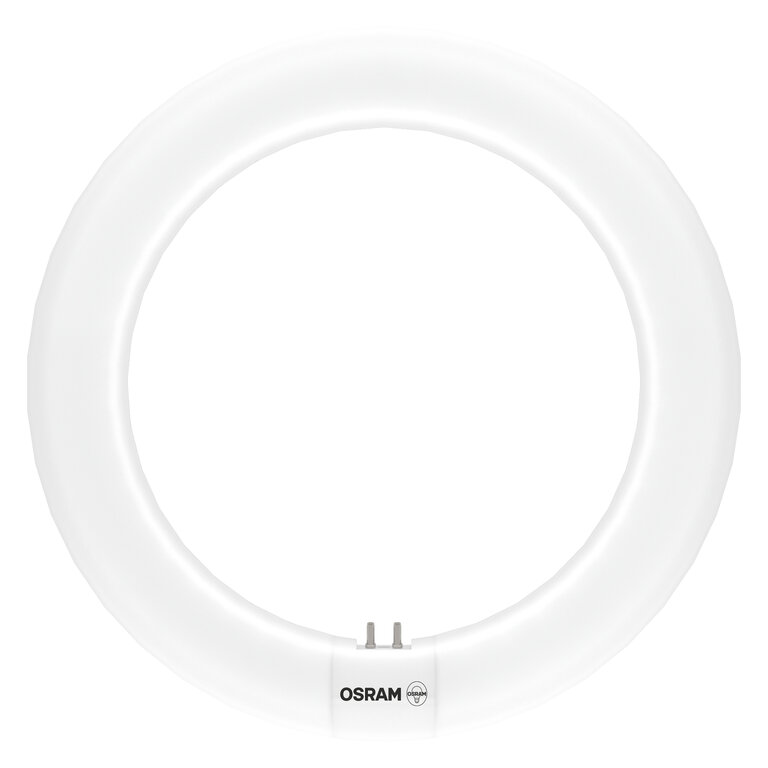

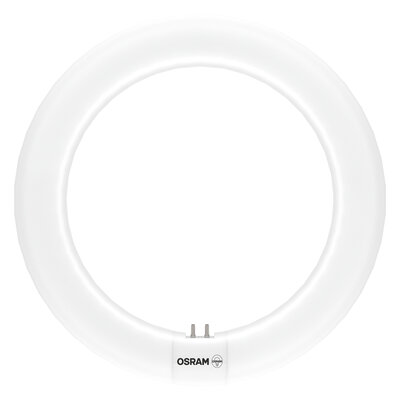

Product Image, Upright with Osram LOGO, White BG
LEDTUBE T9C EM 22 12W G10Q     OSRAM JPG (600.01 KB)

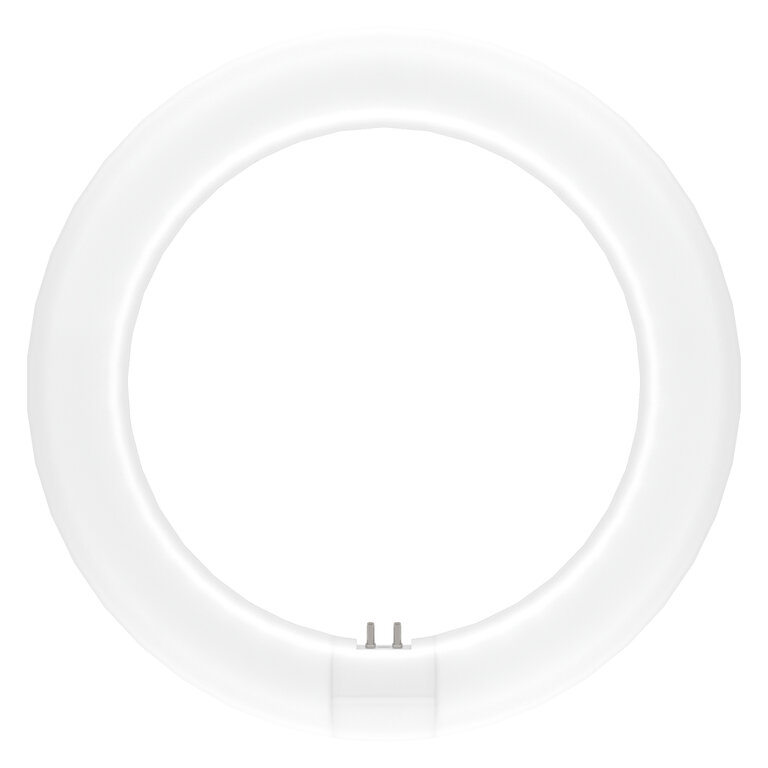

Product Image, Upright, White BG
LEDTUBE T9C EM 22 12W G10Q JPG (583.79 KB)
Product line drawing with letters
LEDTUBE T9C EM 22 12W G10Q     OSRAM SVG (83.27 KB)
Product line drawing with numbers
LEDTUBE T9C EM 22 12W G10Q     OSRAM SVG (85.59 KB)
Product line drawing - technical
LEDTUBE T9C EM 22 12W G10Q     OSRAM SVG (80.73 KB)
IES file (IES)
LEDTUBE T9C EM 22 3000 G10Q IES (41.23 KB)
