SubstiTUBE T5 220-240V AC

SubstiTUBE T5 220-240V AC

Choose your product version

8 W/4000 K 549.00 mm

8 W/6500 K 549.00 mm

8 W/3000 K 549.00 mm

8 W/3000 K 549.00 mm

8 W/4000 K 563.00 mm

8 W/6500 K 563.00 mm

15 W/4000 K 1149.00 mm

15 W/6500 K 1149.00 mm

16 W/3000 K 1149.00 mm

16 W/3000 K 1149.00 mm

16 W/4000 K 1163.00 mm

16 W/6500 K 1163.00 mm

18 W/6500 K 1463.00 mm

26 W/4000 K 1463.00 mm

26 W/6500 K 1463.00 mm

37 W/4000 K 1463.00 mm

37 W/6500 K 1463.00 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Beam angle Dimmable
ST5HE-AC 8 W/4000 K 549.00 mm G5 8 W 220…240 V 30000 h 960 lm 180 ° No
ST5HE-AC 8 W/6500 K 549.00 mm G5 8 W 220…240 V 30000 h 960 lm 180 ° No
ST5HE14-AC 8 W/3000 K 549.00 mm G5 8 W 220…240 V 50000 h 1080 lm 180 ° No
ST5HE14-AC 8 W/3000 K 549.00 mm G5 8 W 220…240 V 50000 h 1080 lm 180 ° No
ST5HE14-AC 8 W/4000 K 563.00 mm G5 8 W 220…240 V 50000 h 1200 lm 14 W 190 ° No
ST5HE14-AC 8 W/6500 K 563.00 mm G5 8 W 220…240 V 50000 h 1200 lm 14 W 190 ° No
ST5HE-AC 15 W/4000 K 1149.00 mm G5 15 W 220…240 V 30000 h 1800 lm 180 ° No
ST5HE-AC 15 W/6500 K 1149.00 mm G5 15 W 220…240 V 30000 h 1800 lm 180 ° No
ST5HE28-AC 16 W/3000 K 1149.00 mm G5 16 W 220…240 V 50000 h 2160 lm 180 ° No
ST5HE28-AC 16 W/3000 K 1149.00 mm G5 16 W 220…240 V 50000 h 2160 lm 180 ° No
ST5HE28-AC 16 W/4000 K 1163.00 mm G5 16 W 220…240 V 50000 h 2400 lm 28 W 190 ° No
ST5HE28-AC 16 W/6500 K 1163.00 mm G5 16 W 220…240 V 50000 h 2400 lm 28 W 190 ° No
ST5HE35-AC 18 W/6500 K 1463.00 mm G5 18 W 220…240 V 50000 h 2800 lm 35 W 190 ° No
ST5HO49-AC 26 W/4000 K 1463.00 mm G5 26 W 220…240 V 50000 h 4000 lm 49 W 190 ° No
ST5HO49-AC 26 W/6500 K 1463.00 mm G5 26 W 220…240 V 50000 h 4000 lm 49 W 190 ° No
ST5HO80-AC 37 W/4000 K 1463.00 mm G5 37 W 220…240 V 50000 h 5600 lm 80 W 190 ° No
ST5HO80-AC 37 W/6500 K 1463.00 mm G5 37 W 220…240 V 50000 h 5600 lm 80 W 190 ° No


ST5HE-AC 8 W/4000 K 549.00 mm

Product benefits
  • No bending thanks to glass technology
  • Shatter protection thanks to special PET coating
  • High luminous flux for sophisticated lighting tasks
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8 W
Construction wattage 8.00 W
Nominal voltage 220…240 V
Nominal current 37 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Total harmonic distortion ≤ 20 %
Power factor λ > 0.90

Photometrical data

Luminous flux 960 lm
Luminous efficacy 120 lm/W
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra > 80
Light color 840
Standard deviation of color matching ≤5 sdcm

Light technical data

Beam angle 180 °

Dimensions & Weight

Overall length 549.00 mm
Diameter 16.00 mm
Maximum diameter 19 mm
Product weight 80.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Lifespan

Number of switching cycles 30000

Additional product data

Base (standard designation) G5
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards CE

Country-specific categorizations

Order reference ST5HEV-0.6M 8W/

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G5
Length 549.00 mm
Height 16.00 mm
Width 16.00 mm
Product benefits
  • No bending thanks to glass technology
  • Shatter protection thanks to special PET coating
  • High luminous flux for sophisticated lighting tasks
Areas of application
  • Offices, public buildings
  • Supermarkets and department stores
  • Industry
  • General illumination within ambient temperatures from -20…+45 °C
Product features
  • LED replacement for T5 fluorescent lamps with G5 base on AC mains
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
  • High color consistency: ≤ 5 SDCM
  • Lifetime: up to 50,000 h
  • Low flicker according to EU 2019/2020
  • Type of protection: IP20
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc max temperature on the product prior to installation.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075556393 Sleeve
1		 565 mm x 20 mm x 24 mm 93.00 g 0.27 dm³
4058075556409 Shipping box
10		 618 mm x 153 mm x 80 mm 1194.00 g 7.56 dm³

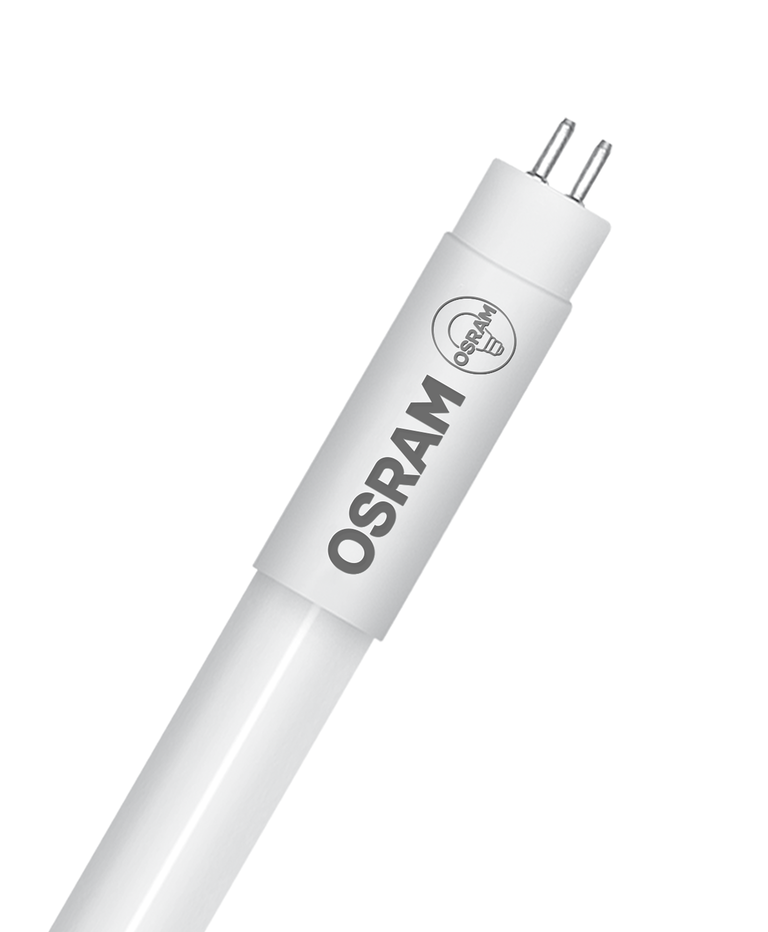

Product Image, Diagonal with OSRAM LOGO, White BG
T5 OSRAM SubstiTube TIF (146.04 MB)

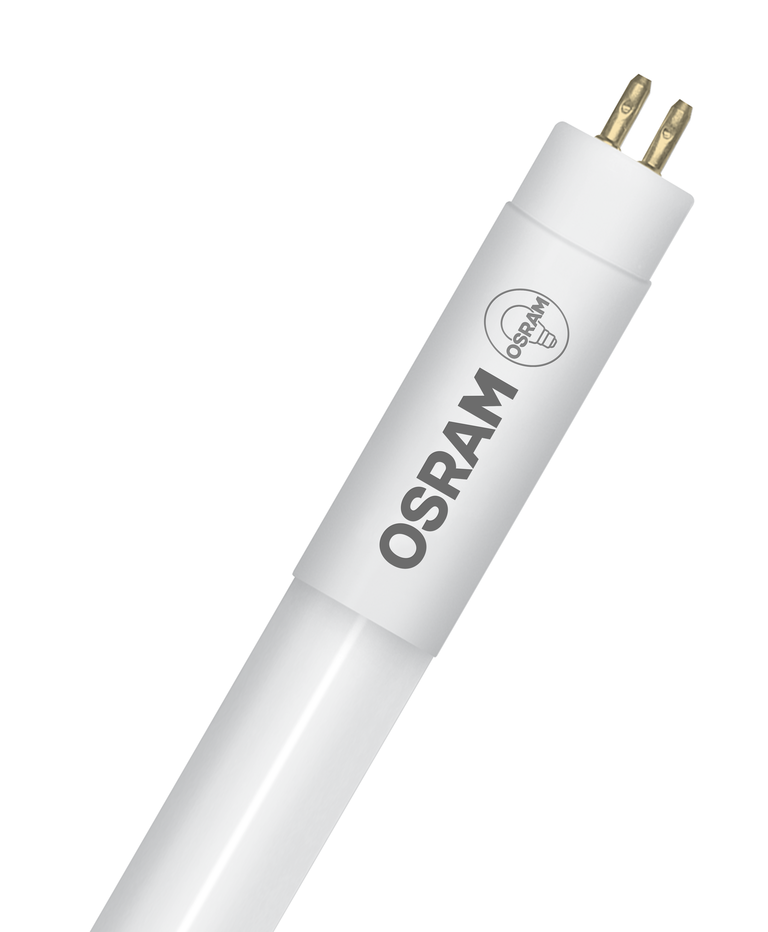

Product Image, Diagonal, White BG, Alternativ Image
T5 LED tube TIF (72.64 MB)

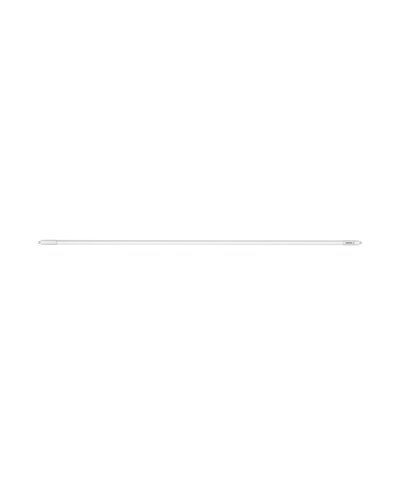

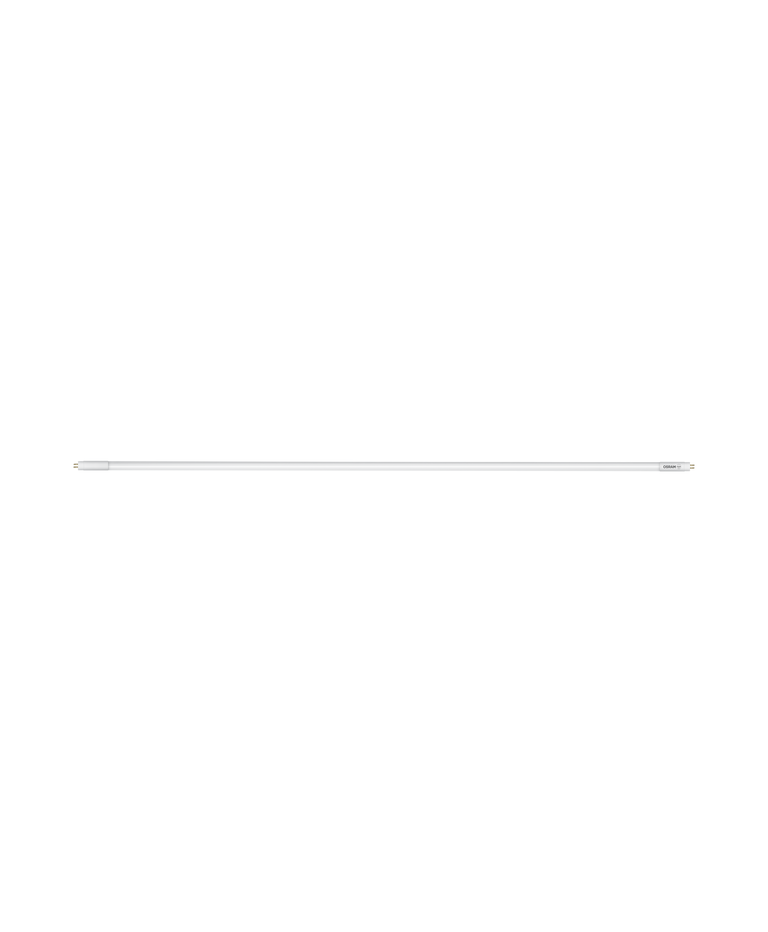

Product Image, Horizontal with OSRAM LOGO, White BG
T5 LED tube TIF (72.64 MB)

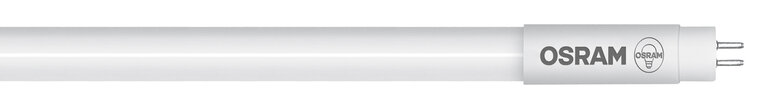

Product Image, Horizontal with OSRAM LOGO, White BG
T5 OSRAM SubstiTube ho rizontal JPG (122.66 KB)

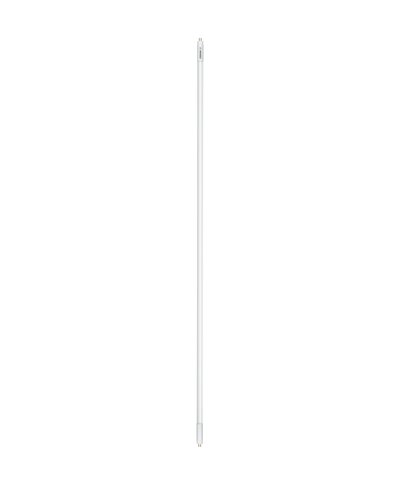

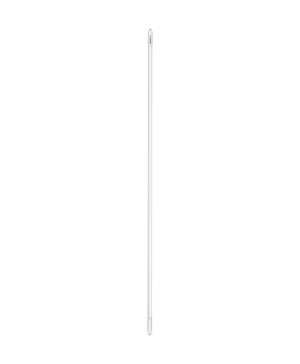

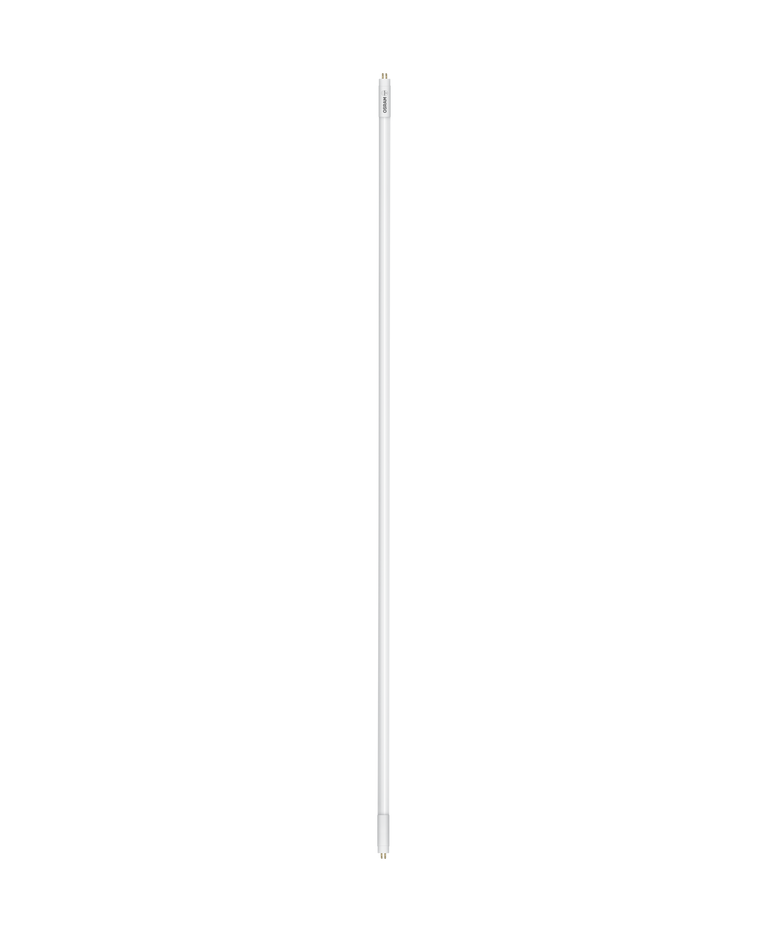

Product Image, Upright with Osram LOGO, White BG
