SubstiTUBE T5 100-240V AC

SubstiTUBE T5 100-240V AC

Choose your product version

8 W/3000 K 549 mm

8 W/4000 K 549 mm

8 W/6500 K 549 mm

16 W/3000 K 1149 mm

16 W/4000 K 1149 mm

16 W/6500 K 1149 mm

18 W/3000 K 1449 mm

18 W/4000 K 1449 mm

18 W/6500 K 1449 mm

26 W/4000 K 1449 mm

26 W/4000 K 1149 mm

26 W/6500 K 1449 mm

26 W/6500 K 1149 mm

37 W/4000 K 1449 mm

37 W/6500 K 1449 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Beam angle Dimmable
ST5HE14-AC 8 W/3000 K 549 mm G5 8 W 100…240 V 50000 h 1080 lm › 160.00 ° No
ST5HE14-AC 8 W/4000 K 549 mm G5 8 W 100…240 V 50000 h 1200 lm › 160.00 ° No
ST5HE14-AC 8 W/6500 K 549 mm G5 8 W 100…240 V 50000 h 1200 lm › 160.00 ° No
ST5HE28-AC 16 W/3000 K 1149 mm G5 16 W 100…240 V 50000 h 2150 lm › 160.00 ° No
ST5HE28-AC 16 W/4000 K 1149 mm G5 16 W 100…240 V 50000 h 2400 lm › 160.00 ° No
ST5HE28-AC 16 W/6500 K 1149 mm G5 16 W 100…240 V 50000 h 2400 lm › 160.00 ° No
ST5HE35-AC 18 W/3000 K 1449 mm G5 18 W 100…240 V 50000 h 2550 lm › 160.00 ° No
ST5HE35-AC 18 W/4000 K 1449 mm G5 18 W 100…240 V 50000 h 2800 lm › 160.00 ° No
ST5HE35-AC 18 W/6500 K 1449 mm G5 18 W 100…240 V 50000 h 2800 lm › 160.00 ° No
ST5HO49-AC 26 W/4000 K 1449 mm G5 26 W 100…240 V 50000 h 4000 lm › 160.00 ° No
ST5HO54-AC 26 W/4000 K 1149 mm G5 26 W 100…240 V 50000 h 4000 lm › 160.00 ° No
ST5HO49-AC 26 W/6500 K 1449 mm G5 26 W 100…240 V 50000 h 4000 lm › 160.00 ° No
ST5HO54-AC 26 W/6500 K 1149 mm G5 26 W 100…240 V 50000 h 4000 lm › 160.00 ° No
ST5HO80-AC 37 W/4000 K 1449 mm G5 37 W 100…240 V 50000 h 5600 lm › 160.00 ° No
ST5HO80-AC 37 W/6500 K 1449 mm G5 37 W 100…240 V 50000 h 5600 lm › 160.00 ° No


ST5HE14-AC 8 W/3000 K 549 mm

Product benefits
  • Quick, simple and safe replacement for traditional T5 Fluorescent tube
  • Reduced operational cost due to lower energy consumption
  • Lower maintenance cost thanks to longer lifetime than traditional Fluorescent
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8 W
Construction wattage 8.00 W
Nominal voltage 100…240 V
Operating mode AC
Nominal current 85 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Total harmonic distortion < 20 %
Power factor λ > 0.90

Photometrical data

Luminous flux 1080 lm
Luminous efficacy 135 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra > 80
Light color 830
Standard deviation of color matching ≤5 sdcm

Light technical data

Beam angle › 160.00 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 549.00 mm
Diameter 16.50 mm
Product weight 200.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C
Maximum temperature at tc test point 50 °C

Lifespan

Lifespan L70/B50 at 25 °C 50000 h

Additional product data

Base (standard designation) G5
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards CB, IEC62776

Country-specific categorizations

Order reference ST5HE14-0.6M 8W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Light source cap-type (or other electric interface) G5
Length 549.00 mm
Height 16.50 mm
Width 16.50 mm
Product benefits
  • Quick, simple and safe replacement for traditional T5 Fluorescent tube
  • Reduced operational cost due to lower energy consumption
  • Lower maintenance cost thanks to longer lifetime than traditional Fluorescent
Areas of application
  • Train stations
  • Offices
  • Underground stations
  • Supermarkets and department stores
  • Parking lots, warehouses, production areas
  • General illumination within ambient temperatures from -20…+45 °C
Product features
  • LED replacement for T5 fluorescent lamps with G5 base on AC mains
  • Long lifetime of up to 50,000h (L70B50)
  • Luminous efficacy: up to 150 lm/W
  • Glass tube with protection film
  • Input voltage: AC 100-240 V
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854098482 Sleeve
1		 565 mm x 20 mm x 24 mm 213.00 g 0.27 dm³
4099854098499 Shipping box
10		 645 mm x 140 mm x 85 mm 2358.00 g 7.68 dm³
Product Image, Diagonal with OSRAM LOGO, White BG
T5 OSRAM SubstiTube TIF (146.04 MB)
Product Image, Horizontal with OSRAM LOGO, White BG
T5 LED tube TIF (72.64 MB)
Product Image, Upright with Osram LOGO, White BG
T5 LED tube TIF (72.64 MB)

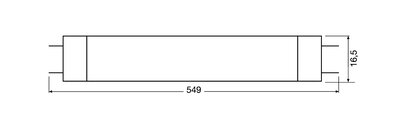

Product line drawing with numbers
ST5 0.6M PNG (16.39 KB)
IES file (IES)
ST 5HE 14 0.6M 8W 830 IES (43.96 KB)
LDC typ polar
ST 5HE 14 0.6M 8W 830 SVG (19.98 KB)
