Professional
LEDTUBE T8 ECO EM

LEDTUBE T8 ECO EM

Choose your product version

9 W/3000 K 600 mm

9 W/4000 K 600 mm

9 W/6500 K 600 mm

18 W/3000 K 1200 mm

18 W/4000 K 1200 mm

18 W/6500 K 1200 mm

20 W/3000 K 1500 mm

20 W/4000 K 1500 mm

20 W/6500 K 1500 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Beam angle Dimmable
LEDTUBE T8 EM ECO 9 W/3000 K 600 mm G13 9 W 220…240 V 15000 h 855 lm › 180.00 ° No
LEDTUBE T8 EM ECO 9 W/4000 K 600 mm G13 9 W 220…240 V 15000 h 900 lm › 180.00 ° No
LEDTUBE T8 EM ECO 9 W/6500 K 600 mm G13 9 W 220…240 V 15000 h 900 lm › 180.00 ° No
LEDTUBE T8 EM ECO 18 W/3000 K 1200 mm G13 18 W 220…240 V 15000 h 1710 lm › 180.00 ° No
LEDTUBE T8 EM ECO 18 W/4000 K 1200 mm G13 18 W 220…240 V 15000 h 1800 lm › 180.00 ° No
LEDTUBE T8 EM ECO 18 W/6500 K 1200 mm G13 18 W 220…240 V 15000 h 1800 lm › 180.00 ° No
LEDTUBE T8 EM ECO 20 W/3000 K 1500 mm G13 20 W 220…240 V 15000 h 1900 lm › 180.00 ° No
LEDTUBE T8 EM ECO 20 W/4000 K 1500 mm G13 20 W 220…240 V 15000 h 2000 lm › 180.00 ° No
LEDTUBE T8 EM ECO 20 W/6500 K 1500 mm G13 20 W 220…240 V 15000 h 2000 lm › 180.00 ° No


LEDTUBE T8 EM ECO 9 W/3000 K 600 mm

Product benefits
  • High luminous flux for sophisticated lighting tasks
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Lower maintenance cost thanks to longer lifetime than traditional Fluorescent
  • Low initial investment
  • High color rendition (Ra≥80) with excellent color fidelity for a true lighting effect
  • Mercury-free
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50

Photometrical data

Luminous flux 855 lm
Luminous efficacy 95 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle › 180.00 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 604.00 mm
Diameter 28.00 mm
Maximum diameter 28 mm
Product weight 95.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C
Maximum temperature at tc test point < 75 °C

Lifespan

Lifespan L70/B50 at 25 °C 15000 h

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards IEC62776

Country-specific categorizations

Order reference LEDTUBE T8 E 60

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Light source cap-type (or other electric interface) G13
Length 604.00 mm
Height 28.00 mm
Width 28.00 mm
Product benefits
  • High luminous flux for sophisticated lighting tasks
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Lower maintenance cost thanks to longer lifetime than traditional Fluorescent
  • Low initial investment
  • High color rendition (Ra≥80) with excellent color fidelity for a true lighting effect
  • Mercury-free
Areas of application
  • Train stations
  • Offices, schools
  • Underground stations
  • Supermarkets and department stores
  • Parking lots & Alleys
  • Warehouses
Product features
  • Direct replacement for fluorescent lamps with G13 base
  • Long lifetime: up to 15,000 h
  • SDCM ≤6, provides excellent light quality
  • High quality consistency thanks to automatic production
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854239663 Sleeve
1		 655 mm x 28 mm x 28 mm 103.00 g 0.52 dm³
4099854239670 Shipping box
25		 700 mm x 168 mm x 170 mm 3081.00 g 19.99 dm³

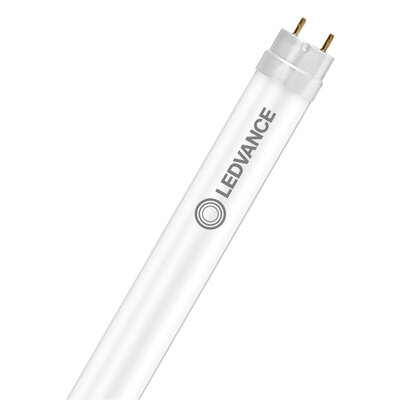

Product Image, Diagonal with LEDVANCE LOGO, White BG
LEDTUBE T8 JPG (931.24 KB)

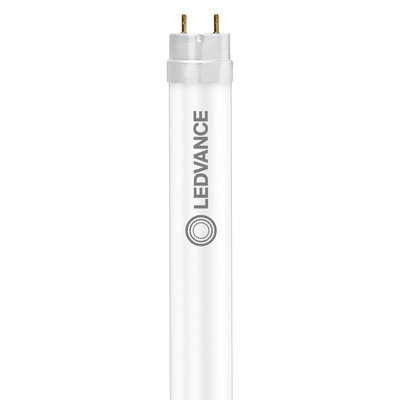

Product Image, Upright with LEDVANCE LOGO, White BG
LEDTUBE T8 JPG (900.82 KB)
Prod.line drw, front, no dimensions
LED STAR+ T8 1.2M G13 SVG (3.73 KB)
IES file (IES)
LEDTUBE T8EME 600 9W83 0 IES (10.02 KB)
LDT file (Eulumdat)
LEDTUBE T8EME 600 9W83 0 LDT (6.53 KB)
LDC typ polar
LEDTUBE T8EME 600 9W83 0 SVG (20.38 KB)
