Professional
SubstiTUBE T8 EM PRO

SubstiTUBE T8 EM PRO

Choose your product version

5.1 W/3000 K 500 mm

5.1 W/4000 K 500 mm

5.1 W/6500 K 500 mm

6.3 W/3000 K 600 mm

6.3 W/4000 K 600 mm

6.3 W/6500 K 600 mm

9.7 W/3000 K 900 mm

9.7 W/4000 K 900 mm

9.7 W/6500 K 900 mm

11.4 W/3000 K 1100 mm

11.4 W/4000 K 1100 mm

11.4 W/6500 K 1100 mm

12 W/3000 K 1200 mm

12 W/4000 K 1200 mm

12 W/6500 K 1200 mm

17.7 W/3000 K 1500 mm

17.7 W/4000 K 1500 mm

17.7 W/6500 K 1500 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LEDTUBE T8 EM S 5.1 W/3000 K 500 mm G13 5.1 W 220…240 V 75000 h 810 lm 15 W 190 ° No
LEDTUBE T8 EM S 5.1 W/4000 K 500 mm G13 5.1 W 220…240 V 75000 h 900 lm 15 W 190 ° No
LEDTUBE T8 EM S 5.1 W/6500 K 500 mm G13 5.1 W 220…240 V 75000 h 900 lm 15 W 190 ° No
LEDTUBE T8 EM S 6.3 W/3000 K 600 mm G13 6.3 W 220…240 V 75000 h 990 lm 18 W 190 ° No
LEDTUBE T8 EM S 6.3 W/4000 K 600 mm G13 6.3 W 220…240 V 75000 h 1100 lm 18 W 190 ° No
LEDTUBE T8 EM S 6.3 W/6500 K 600 mm G13 6.3 W 220…240 V 75000 h 1100 lm 18 W 190 ° No
LEDTUBE T8 EM S 9.7 W/3000 K 900 mm G13 9.7 W 220…240 V 75000 h 1530 lm 30 W 190 ° No
LEDTUBE T8 EM S 9.7 W/4000 K 900 mm G13 9.7 W 220…240 V 75000 h 1700 lm 30 W 190 ° No
LEDTUBE T8 EM S 9.7 W/6500 K 900 mm G13 9.7 W 220…240 V 75000 h 1700 lm 30 W 190 ° No
LEDTUBE T8 EM S 11.4 W/3000 K 1100 mm G13 11.4 W 220…240 V 75000 h 1800 lm 38 W 190 ° No
LEDTUBE T8 EM S 11.4 W/4000 K 1100 mm G13 11.4 W 220…240 V 75000 h 2000 lm 38 W 190 ° No
LEDTUBE T8 EM S 11.4 W/6500 K 1100 mm G13 11.4 W 220…240 V 75000 h 2000 lm 38 W 190 ° No
LEDTUBE T8 EM S 12 W/3000 K 1200 mm G13 12 W 220…240 V 75000 h 1890 lm 36 W 190 ° No
LEDTUBE T8 EM S 12 W/4000 K 1200 mm G13 12 W 220…240 V 75000 h 2100 lm 36 W 190 ° No
LEDTUBE T8 EM S 12 W/6500 K 1200 mm G13 12 W 220…240 V 75000 h 2100 lm 36 W 190 ° No
LEDTUBE T8 EM S 17.7 W/3000 K 1500 mm G13 17.7 W 220…240 V 75000 h 2790 lm 58 W 190 ° No
LEDTUBE T8 EM S 17.7 W/4000 K 1500 mm G13 17.7 W 220…240 V 75000 h 3100 lm 58 W 190 ° No
LEDTUBE T8 EM S 17.7 W/6500 K 1500 mm G13 17.7 W 220…240 V 75000 h 3100 lm 58 W 190 ° No


LEDTUBE T8 EM S 5.1 W/3000 K 500 mm

Product benefits
  • No bending thanks to glass tube
  • Shatter protection thanks to special PET coating
  • Support the implementation of the HACCP concepts from production through to presentation
  • Very high resistance to switching loads
  • High luminous flux for sophisticated lighting tasks
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 68 % (compared to T8 fluorescent lamp on CCG)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 5.1 W
Construction wattage 5.10 W
Nominal voltage 220…240 V
Operating mode Conventional control gear (CCG), AC Mains
Nominal current 24 mA
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Total harmonic distortion ≤ 20 %
Power factor λ 0.90

Photometrical data

Luminous flux 810 lm
Luminous efficacy 158 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 450.00 mm
Diameter 26.70 mm
Maximum diameter 27 mm
Product weight 78.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point <75 °C

Lifespan

Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class D
Energy consumption 6.00 kWh/1000h
Type of protection IP20
Standards CB
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference LEDTUBE T8 EM S

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G13
Correlated colour temperature type SINGLE_VALUE
Length 450.00 mm
Height 26.70 mm
Width 26.70 mm
EPREL ID 1334050,1529740
Model number AC45340,AC51550

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass tube
  • Shatter protection thanks to special PET coating
  • Support the implementation of the HACCP concepts from production through to presentation
  • Very high resistance to switching loads
  • High luminous flux for sophisticated lighting tasks
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 68 % (compared to T8 fluorescent lamp on CCG)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+50 °C
  • Illumination of production areas
  • Traffic zones and corridors
  • Supermarkets and department stores
  • Industry
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
  • Low flicker according to EU 2019-2020 (SVM ≤0.4 / PstLM ≤1)
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
  • VDE certified according to IEC62776
  • Single and tandem operation on conventional control gear (0.6 m version)
  • Type of protection: IP20
Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • Disconnect mains before installation.
  • Not suitable for emergency lighting.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854087967 Sleeve
1		 550 mm x 29 mm x 29 mm 95.00 g 0.46 dm³
4099854087974 Shipping box
10		 580 mm x 180 mm x 95 mm 1214.00 g 9.92 dm³
4099854153921 Shipping box
10		 580 mm x 180 mm x 95 mm 1214.00 g 9.92 dm³

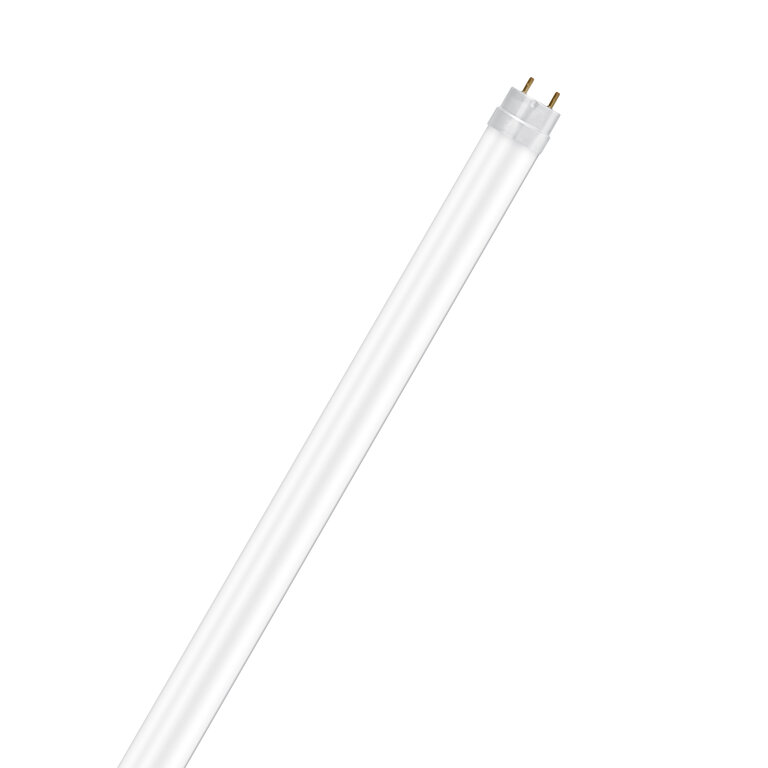

Product Image, Diagonal, White BG
LED TUBE T8 EM JPG (769.9 KB)

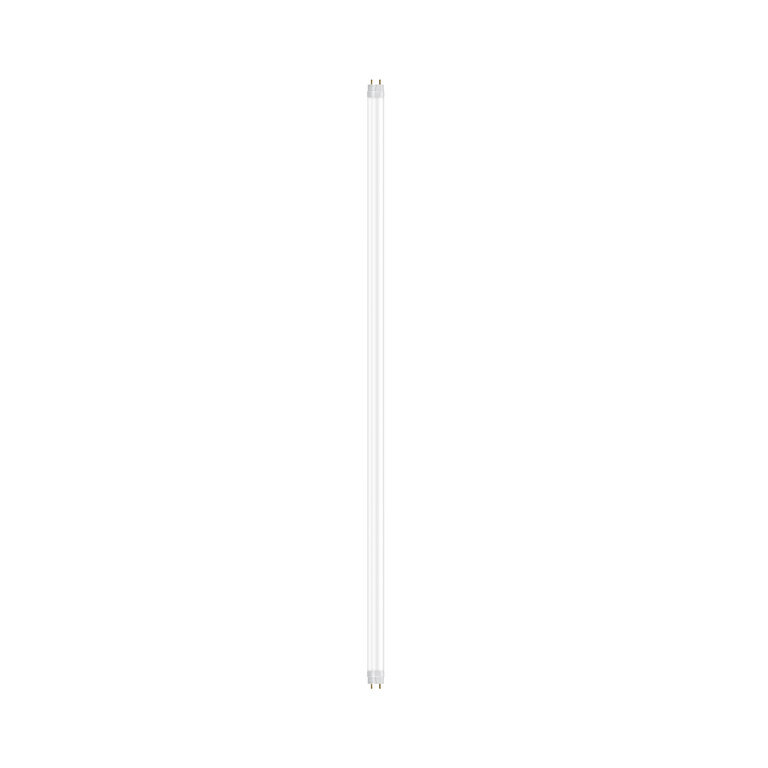

Product Image, Upright, White BG
