SubstiTUBE T8 EM ADVANCED ULTRA OUTPUT

SubstiTUBE T8 EM ADVANCED ULTRA OUTPUT

Choose your product version

15.6 W/3000 K 1200 mm

15.6 W/4000 K 1200 mm

15.6 W/6500 K 1200 mm

23.1 W/3000 K 1500 mm

23.1 W/4000 K 1500 mm

23.1 W/6500 K 1500 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
ST8AUO-EM 15.6 W/3000 K 1200 mm G13 15.6 W 220…240 V 60000 h 2250 lm 36 W > 190 ° No
ST8AUO-EM 15.6 W/4000 K 1200 mm G13 15.6 W 220…240 V 60000 h 2500 lm 36 W > 190 ° No
ST8AUO-EM 15.6 W/6500 K 1200 mm G13 15.6 W 220…240 V 60000 h 2500 lm 36 W > 190 ° No
ST8AUO-EM 23.1 W/3000 K 1500 mm G13 23.1 W 220…240 V 60000 h 3330 lm 58 W > 190 ° No
ST8AUO-EM 23.1 W/4000 K 1500 mm G13 23.1 W 220…240 V 60000 h 3700 lm 58 W > 190 ° No
ST8AUO-EM 23.1 W/6500 K 1500 mm G13 23.1 W 220…240 V 60000 h 3700 lm 58 W > 190 ° No


ST8AUO-EM 15.6 W/3000 K 1200 mm

Product benefits
  • No bending thanks to glass tube
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 60 % (compared to T8 fluorescent lamp on CCG)
  • Very high resistance to switching loads
  • High luminous flux for sophisticated lighting tasks
  • Also suitable for operation at low temperatures
  • Instant-on light, therefore ideally suitable in combination with sensor technology
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 15.6 W
Construction wattage 15.60 W
Nominal voltage 220…240 V
Operating mode Conventional control gear (CCG), AC Mains
Nominal current 70 mA
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Total harmonic distortion ≤ 20 %
Power factor λ > 0.90

Photometrical data

Luminous flux 2250 lm
Luminous efficacy 144 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.80

Light technical data

Beam angle > 190 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 1212.00 mm
Diameter 25.30 mm
Maximum diameter 28 mm
Product weight 195.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point <75 °C

Lifespan

Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy consumption 16.00 kWh/1000h
Type of protection IP20
Standards CB
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference ST8AUO-1.2M 15,

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G13
Length 1212.00 mm
Height 25.30 mm
Width 25.30 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass tube
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 60 % (compared to T8 fluorescent lamp on CCG)
  • Very high resistance to switching loads
  • High luminous flux for sophisticated lighting tasks
  • Also suitable for operation at low temperatures
  • Instant-on light, therefore ideally suitable in combination with sensor technology
Areas of application
  • General illumination within ambient temperatures from -20…+50 °C
  • Illumination of production areas
  • Traffic zones and corridors
  • Supermarkets and department stores
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires or on AC mains
  • Low flicker according to EU 2019-2020 (SVM ≤0.4 / PstLM ≤1)
  • Tube made of glass
  • For especially uniform illumination
  • Mercury-free and RoHS compliant
  • Type of protection: IP20
Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854088186 Sleeve
1		 1,305 mm x 29 mm x 29 mm 224.00 g 1.10 dm³
4099854088193 Shipping box
10		 1,335 mm x 180 mm x 95 mm 2780.00 g 22.83 dm³
4099854154720 Shipping box
10		 1,335 mm x 180 mm x 95 mm 2780.00 g 22.83 dm³

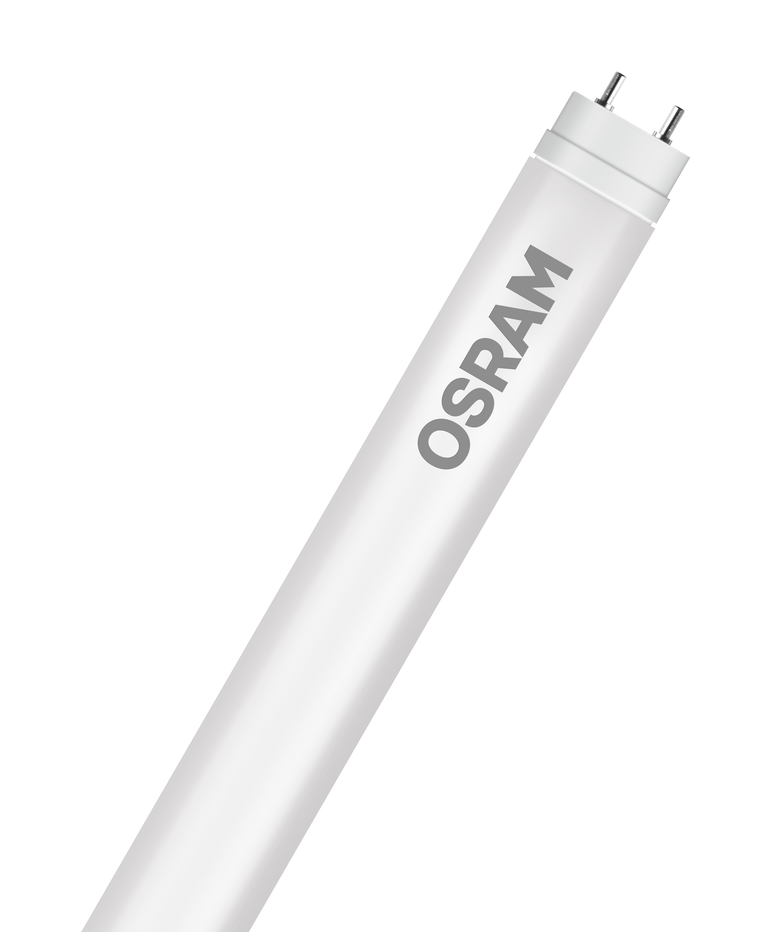

Product Image, Diagonal with OSRAM LOGO, White BG
607492_SubstiTUBE ST8- EM TIF (53.14 MB)

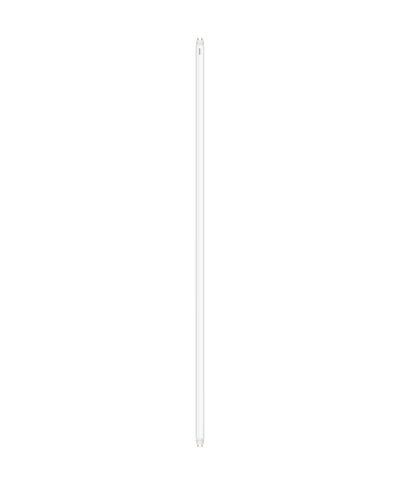

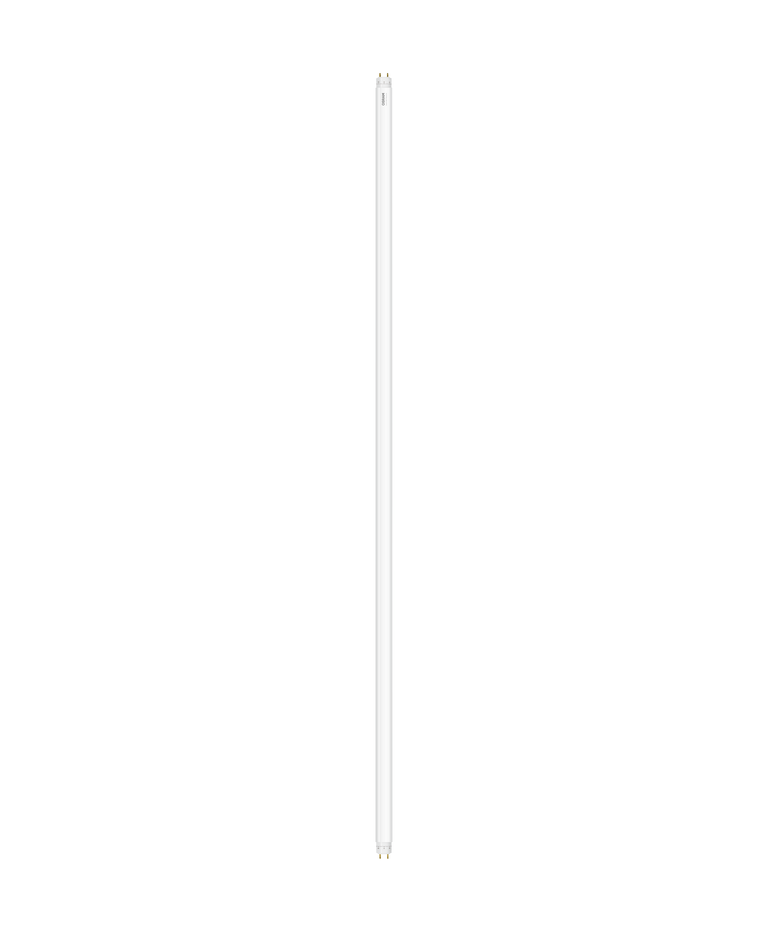

Product Image, Upright with Osram LOGO, White BG
