Professional

SubstiTUBE Advanced HE&HO

Choose your product version

7.3 W/3000 K 600 mm GEN12

7.3 W/4000 K 600 mm

7.3 W/4000 K 600 mm GEN12

7.3 W/6500 K 600 mm

7.3 W/6500 K 600 mm GEN12

14 W/3000 K 1200 mm GEN12

14 W/4000 K 1200 mm

14 W/4000 K 1200 mm GEN12

14 W/6500 K 1200 mm

14 W/6500 K 1200 mm GEN12

20.6 W/3000 K 1500 mm GEN12

20.6 W/4000 K 1500 mm

20.6 W/4000 K 1500 mm GEN12

20.6 W/6500 K 1500 mm

20.6 W/6500 K 1500 mm GEN12

22 W/3000 K 1200 mm GEN12

22 W/4000 K 1200 mm

22 W/6500 K 1200 mm

22 W/4000 K 1200 mm GEN12

22 W/6500 K 1200 mm GEN12

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
ST8A-EM 7.3 W/3000 K 600 mm GEN12 G13 7.3 W 220…240 V 60000 h 990 lm 18 W > 190 ° No
ST8A-EM 7.3 W/4000 K 600 mm G13 7.3 W 220…240 V 50000 h 1100 lm 18 W > 190 ° No
ST8A-EM 7.3 W/4000 K 600 mm GEN12 G13 7.3 W 220…240 V 60000 h 1100 lm 18 W > 190 ° No
ST8A-EM 7.3 W/6500 K 600 mm G13 7.3 W 220…240 V 50000 h 1100 lm 18 W > 190 ° No
ST8A-EM 7.3 W/6500 K 600 mm GEN12 G13 7.3 W 220…240 V 60000 h 1100 lm 18 W > 190 ° No
ST8A-EM 14 W/3000 K 1200 mm GEN12 G13 14 W 220…240 V 60000 h 1890 lm 36 W > 190 ° No
ST8A-EM 14 W/4000 K 1200 mm G13 14 W 220…240 V 50000 h 2100 lm 36 W > 190 ° No
ST8A-EM 14 W/4000 K 1200 mm GEN12 G13 14 W 220…240 V 60000 h 2100 lm 36 W > 190 ° No
ST8A-EM 14 W/6500 K 1200 mm G13 14 W 220…240 V 50000 h 2100 lm 36 W > 190 ° No
ST8A-EM 14 W/6500 K 1200 mm GEN12 G13 14 W 220…240 V 60000 h 2100 lm 36 W > 190 ° No
ST8A-EM 20.6 W/3000 K 1500 mm GEN12 G13 20.6 W 220…240 V 60000 h 2790 lm 58 W > 190 ° No
ST8A-EM 20.6 W/4000 K 1500 mm G13 20.6 W 220…240 V 50000 h 3100 lm 58 W > 190 ° No
ST8A-EM 20.6 W/4000 K 1500 mm GEN12 G13 20.6 W 220…240 V 60000 h 3100 lm 58 W > 190 ° No
ST8A-EM 20.6 W/6500 K 1500 mm G13 20.6 W 220…240 V 50000 h 3100 lm 58 W > 190 ° No
ST8A-EM 20.6 W/6500 K 1500 mm GEN12 G13 20.6 W 220…240 V 60000 h 3100 lm 58 W > 190 ° No
ST8A-EM 22 W/3000 K 1200 mm GEN12 G13 22 W 220…240 V 60000 h 2790 lm 36 W > 190 ° No
ST8A-EM 22 W/4000 K 1200 mm G13 22 W 220…240 V 50000 h 2800 lm 22 W 160 ° No
ST8A-EM 22 W/6500 K 1200 mm G13 22 W 220…240 V 50000 h 2800 lm 22 W 160 ° No
ST8A-EM 22 W/4000 K 1200 mm GEN12 G13 22 W 220…240 V 60000 h 3100 lm 36 W > 190 ° No
ST8A-EM 22 W/6500 K 1200 mm GEN12 G13 22 W 220…240 V 60000 h 3100 lm 36 W > 190 ° No


ST8A-EM 7.3 W/4000 K 600 mm

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 60 % (compared to T8 fluorescent lamp on CCG)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Very high resistance to switching loads
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7.3 W
Construction wattage 7.30 W
Nominal voltage 220…240 V
Nominal current 36 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Total harmonic distortion < 20 %
Power factor λ 0.90

Photometrical data

Luminous flux 1100 lm
Luminous efficacy 150 lm/W
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840
Standard deviation of color matching ≤5 sdcm

Light technical data

Beam angle > 190 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 603.00 mm
Diameter 26.70 mm
Maximum diameter 28 mm
Product weight 100.00 g

Temperatures & operating conditions

Ambient temperature range -25…+50 °C
Maximum temperature at tc test point 75 °C

Lifespan

Number of switching cycles 200000

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards CE; VDE
Photobiological safety group acc. to EN62778 RG0

Country-specific categorizations

Order reference ST8A-0.6M 7,3W/

LOGISTICAL DATA

Temperature range at storage -25…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G13
Length 603.00 mm
Height 26.70 mm
Width 26.70 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 60 % (compared to T8 fluorescent lamp on CCG)
  • Instant-on light, therefore ideally suitable in combination with sensor technology
  • Very high resistance to switching loads
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+50 °C
  • Illumination of production areas
  • Traffic zones and corridors
  • Supermarkets and department stores
  • Industry
Product features
  • LED replacement for conventional compact fluorescent lamps for use in CCG luminaires or on AC mains
  • Bright, robust and durable
  • Uniform illumination
  • Single and tandem operation on conventional control gear (0.6 m version)
  • Tube made of glass
  • Mercury-free and RoHS compliant
  • Type of protection: IP20
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075471627 Sleeve
1		 695 mm x 29 mm x 29 mm 121.00 g 0.58 dm³
4058075471634 Shipping box
10		 742 mm x 210 mm x 115 mm 1639.00 g 17.92 dm³
4099854020605 Shipping box
10		 725 mm x 180 mm x 95 mm 1502.00 g 12.40 dm³

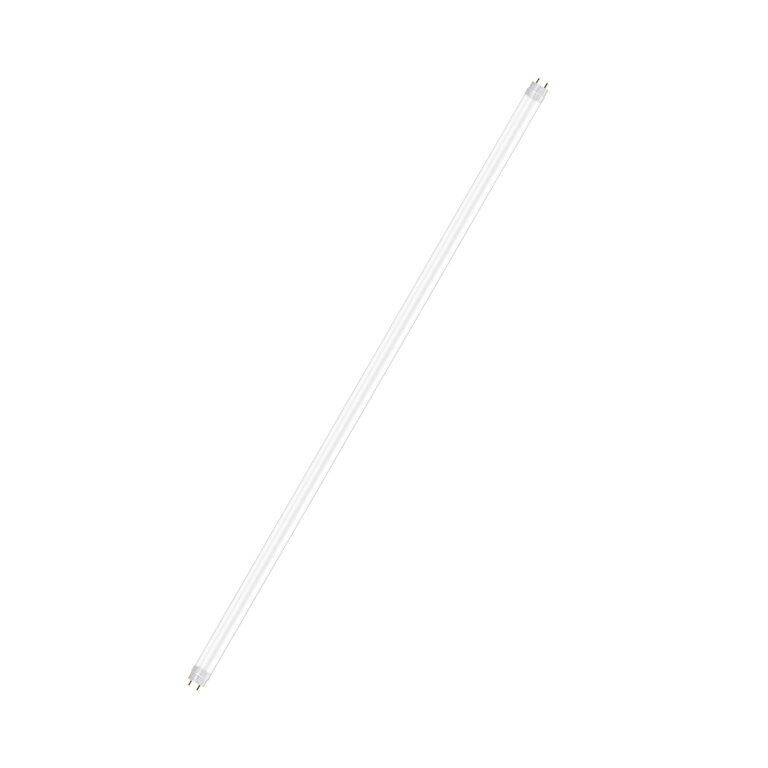

Product image: white background, diagonal with OSRAM logo
LED SubstiTUBE ST8P - 1.2m - 18W - 840 - EM JPG (915.08 KB)

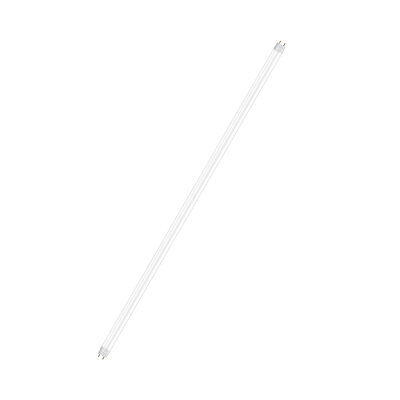

Product image: white background, diagonal
LED TUBE T8 EM JPG (769.9 KB)

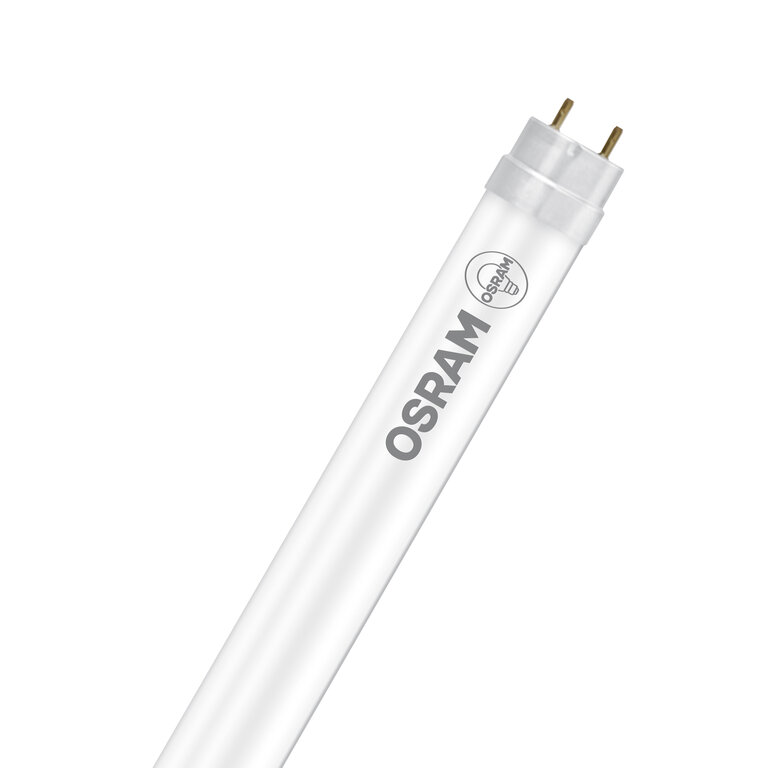

Product image: white background, diagonal, alternative image
LED SubstiTUBE ST8P - 1.2m - 18W - 840 - EM JPG (683.01 KB)

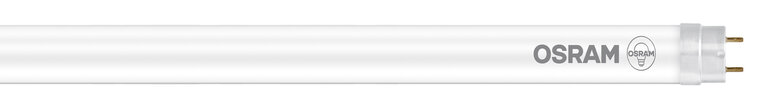

Product image: white background, horizontal, OSRAM logo
LED SubstiTUBE ST8P - 1.2m - 18W - 840 - EM horizontal JPG (135.08 KB)

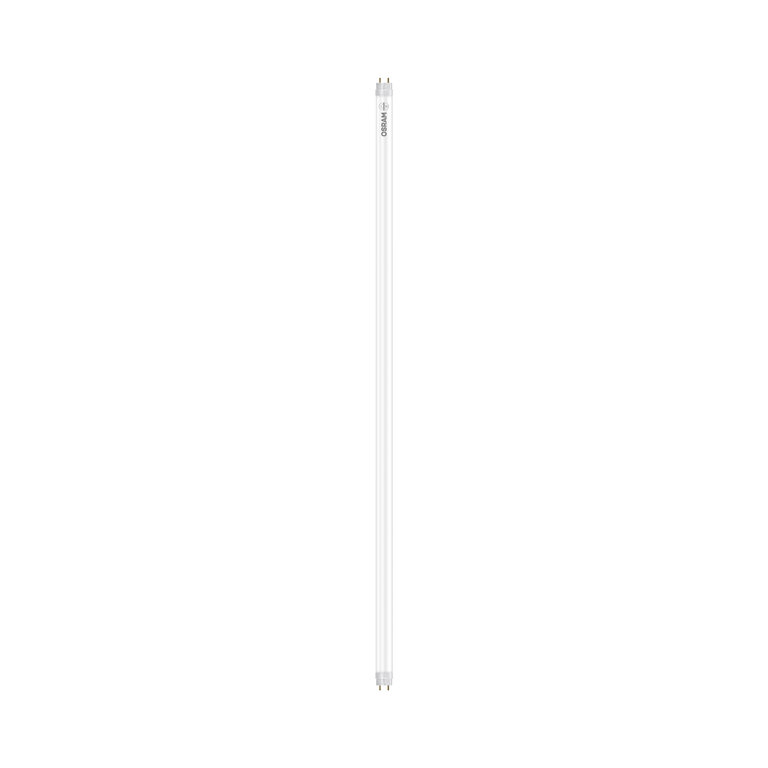

Product image: white background, upright, OSRAM logo
LED SubstiTUBE ST8P - 1.2m - 18W - 840 - EM JPG (656.82 KB)

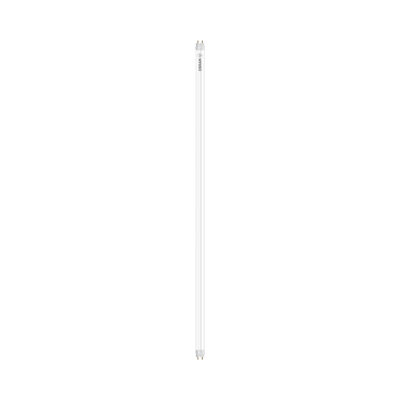

Product image: white background, upright
LED TUBE T8 EM JPG (650.51 KB)
Product line drawing with letters
338276_SubstiTUBE Basi c ST8-HB SVG (8.95 KB)
Product line drawing - technical
638401_Technical drawi ng TC point LED TUBE T 8 EM SVG (22 KB)
IES file (IES)
LED SubstiTUBE ST8A - 0.6m – 7.3W - EM IES (4.17 KB)
