Professional
SubstiTUBE Eco

SubstiTUBE Eco

Choose your product version

9 W/3000 K 600 mm

9 W/4000 K 600 mm

9 W/6500 K 600 mm

18 W/3000 K 1200 mm

18 W/4000 K 1200 mm

18 W/6500 K 1200 mm

20 W/3000 K 1500 mm

20 W/4000 K 1500 mm

20 W/6500 K 1500 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Beam angle Dimmable
ST8E-EM 9 W/3000 K 600 mm G13 9 W 220…240 V 15000 h 855 lm › 180.00 ° No
ST8E-EM 9 W/4000 K 600 mm G13 9 W 220…240 V 15000 h 900 lm › 180.00 ° No
ST8E-EM 9 W/6500 K 600 mm G13 9 W 220…240 V 15000 h 900 lm › 180.00 ° No
ST8E-EM 18 W/3000 K 1200 mm G13 18 W 220…240 V 15000 h 1710 lm › 180.00 ° No
ST8E-EM 18 W/4000 K 1200 mm G13 18 W 220…240 V 15000 h 1800 lm › 180.00 ° No
ST8E-EM 18 W/6500 K 1200 mm G13 18 W 220…240 V 15000 h 1800 lm › 180.00 ° No
ST8E-EM 20 W/3000 K 1500 mm G13 20 W 220…240 V 15000 h 1900 lm › 180.00 ° No
ST8E-EM 20 W/4000 K 1500 mm G13 20 W 220…240 V 15000 h 2000 lm › 180.00 ° No
ST8E-EM 20 W/6500 K 1500 mm G13 20 W 220…240 V 15000 h 2000 lm › 180.00 ° No


ST8E-EM 9 W/3000 K 600 mm

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Very high resistance to switching loads
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.50

Photometrical data

Luminous flux 855 lm
Luminous efficacy 95 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Standard deviation of color matching ≤6 sdcm

Light technical data

Beam angle › 180.00 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 604.00 mm
Diameter 28.00 mm
Maximum diameter 28 mm
Product weight 95.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C
Maximum temperature at tc test point < 75 °C

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20

Country-specific categorizations

Order reference ST8E-0.6M 9W/83

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G13
Length 604.00 mm
Height 28.00 mm
Width 28.00 mm
Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Very high resistance to switching loads
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Corridors, stairways, parking garages
  • Train stations
  • Underground stations
  • Supermarkets and department stores
  • Industry
  • Warehouses
  • Hospitality
Product features
  • T8 LED tube made of glass with G13 base
  • High color consistency: < 6 SDCM
  • Lifetime: up to 15,000 h
  • Mercury-free lamps
  • Color rendering index Ra: ≥ 80
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075429420 Sleeve
1		 655 mm x 28 mm x 28 mm 129.00 g 0.51 dm³
4099854238109 Shipping box
25		 700 mm x 168 mm x 170 mm 3081.00 g 19.99 dm³
4058075429437 Shipping box
25		 700 mm x 168 mm x 170 mm 3730.00 g 19.99 dm³

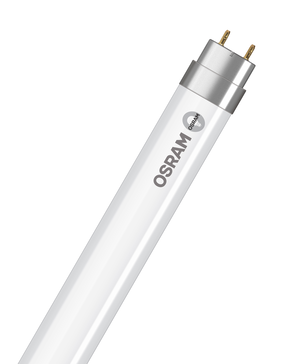

Product Image, Diagonal with OSRAM LOGO, White BG
LED ST8V G7 FR G13 TIF (1.7 MB)
Prod.line drw, front, no dimensions
LED STAR+ T8 1.2M G13 SVG (3.73 KB)

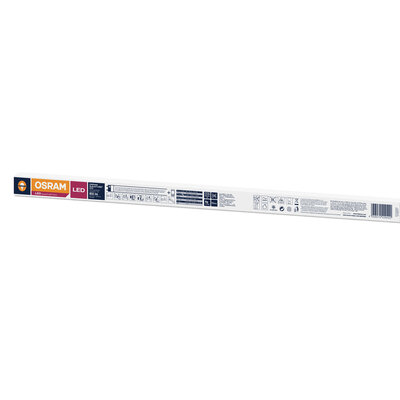

Packaging image, spacial
OSRAM LED T8 TUBE 2FT 9W WW JPG (959.74 KB)
