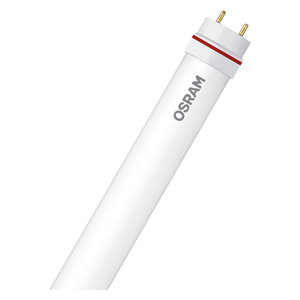

SubstiTUBE® Advanced EM T8 PC

SubstiTUBE Advanced EM T8 PC

Choose your product version

8 W/3000 K 600 mm

8 W/4000 K 600 mm

8 W/6500 K 600 mm

14 W/3000 K 1200 mm

14 W/4000 K 1200 mm

14 W/6500 K 1200 mm

14.7 W/3000 K 1200 mm

14.7 W/4000 K 1200 mm

14.7 W/6500 K 1200 mm

24 W/3000 K 1500 mm

24 W/4000 K 1500 mm

24 W/6500 K 1500 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Beam angle Dimmable
ST8A-EM 8 W/3000 K 600 mm G13 8 W 220…240 V 70000 h 945 lm 140.00 ° No
ST8A-EM 8 W/4000 K 600 mm G13 8 W 220…240 V 70000 h 1050 lm 140.00 ° No
ST8A-EM 8 W/6500 K 600 mm G13 8 W 220…240 V 70000 h 1050 lm 140.00 ° No
ST8A-EM 14 W/3000 K 1200 mm G13 14 W 220…240 V 70000 h 1890 lm 140.00 ° No
ST8A-EM 14 W/4000 K 1200 mm G13 14 W 220…240 V 70000 h 2100 lm 140.00 ° No
ST8A-EM 14 W/6500 K 1200 mm G13 14 W 220…240 V 70000 h 2100 lm 140.00 ° No
ST8A-EM 14.7 W/3000 K 1200 mm G13 14.7 W 220…240 V 70000 h 2250 lm 140.00 ° No
ST8A-EM 14.7 W/4000 K 1200 mm G13 14.7 W 220…240 V 70000 h 2500 lm 140.00 ° No
ST8A-EM 14.7 W/6500 K 1200 mm G13 14.7 W 220…240 V 70000 h 2500 lm 140.00 ° No
ST8A-EM 24 W/3000 K 1500 mm G13 24 W 220…240 V 70000 h 3330 lm 140.00 ° No
ST8A-EM 24 W/4000 K 1500 mm G13 24 W 220…240 V 70000 h 3700 lm 140.00 ° No
ST8A-EM 24 W/6500 K 1500 mm G13 24 W 220…240 V 70000 h 3700 lm 140.00 ° No


ST8A-EM 8 W/3000 K 600 mm

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Lower maintenance cost thanks to longer lifetime than traditional Fluorescent
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8 W
Construction wattage 8.00 W
Nominal voltage 220…240 V
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.90

Photometrical data

Luminous flux 945 lm
Luminous efficacy 118 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra > 80
Light color 830
Standard deviation of color matching ≤5 sdcm

Light technical data

Beam angle 140.00 °
Starting time < 0.5 s

Dimensions & Weight

Overall length 600.00 mm
Diameter 28.00 mm
Product weight 95.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point <75 °C

Lifespan

Lifespan L70/B50 at 25 °C 70000 h
Number of switching cycles 100000

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Country-specific categorizations

Order reference ST8A-0.6M 8W/83

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Light source cap-type (or other electric interface) G13
Length 600.00 mm
Height 28.00 mm
Width 28.00 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Quick, simple and safe replacement without rewiring
  • Lower maintenance cost thanks to longer lifetime than traditional Fluorescent
Areas of application
  • Illumination of production areas
  • Supermarkets and department stores
  • Industry
  • Train stations
  • General illumination within ambient temperatures from -20…+50 °C
  • Offices
  • Underground stations
  • Warehouses
  • Parking lots, warehouses, production areas, stairways
Product features
  • T8 LED tube made of plastic with G13 base
  • Retrofit existing T8 lamps on EM ballast or mains
  • Polycarbonate tube body with PC end-cap
  • Lifetime: up to 70.000 h
Equipment / Accessories
  • Suitable for operation with low-loss and conventional control gears
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854304286 Sleeve
1		 655 mm x 28 mm x 28 mm 114.00 g 0.52 dm³
4099854304293 Shipping box
10		 695 mm x 160 mm x 90 mm 1463.00 g 10.01 dm³

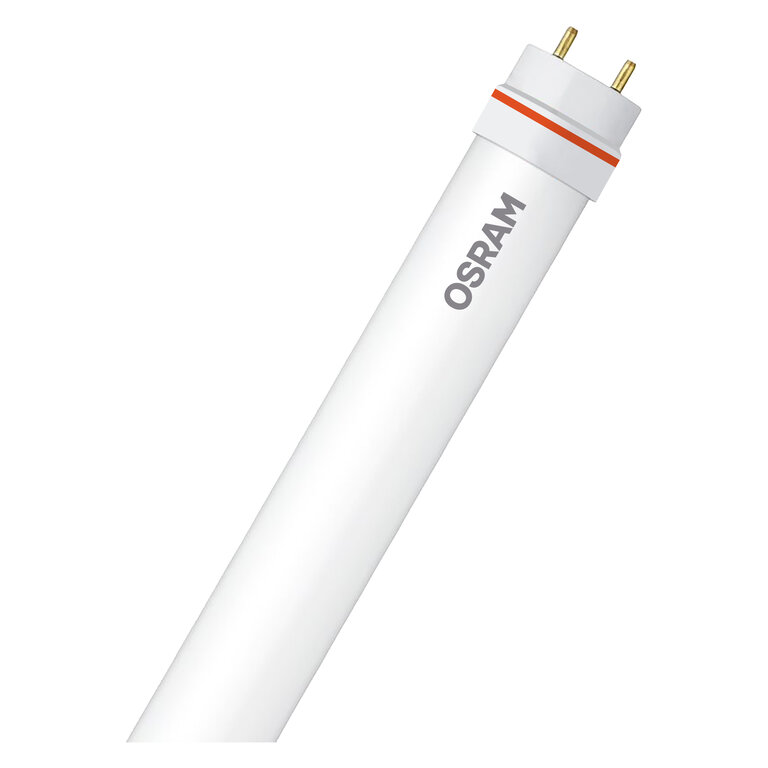

Product Image, Diagonal with OSRAM LOGO, White BG
ST8A EMPC Orange OSRAM JPG (840.1 KB)
Product line drawing with letters
338276_SubstiTUBE Basi c ST8-HB SVG (8.95 KB)
