Product description	Base (standard designation)	Nominal wattage	Nominal voltage	Nominal lamp life time	Nominal luminous flux	Claimed equiv. conventional lamp power	Beam angle	Dimmable
ST8V-0.6M 8 W/3000 K 600 mm	G13	8 W	230 V	30000 h	850 lm	18 W	› 160.00 °	No
ST8V-0.6M 8 W/4000 K 600 mm	G13	8 W	230 V	30000 h	900 lm	18 W	› 160.00 °	No
ST8V-0.6M 8 W/6500 K 600 mm	G13	8 W	230 V	30000 h	900 lm	18 W	› 160.00 °	No
ST8V-1.2M 16 W/3000 K 1200 mm	G13	16 W	230 V	30000 h	1700 lm	36 W	› 160.00 °	No
ST8V-1.2M 16 W/3000 K 1200 mm	G13	16 W	230 V	30000 h	1700 lm	36 W	› 160.00 °	No
ST8V-1.2M 16 W/4000 K 1200 mm	G13	16 W	230 V	30000 h	1800 lm	36 W	› 160.00 °	No
ST8V-1.2M 16 W/4000 K 1200 mm	G13	16 W	230 V	30000 h	1800 lm	36 W	› 160.00 °	No
ST8V-1.2M 16 W/6500 K 1200 mm	G13	16 W	230 V	30000 h	1800 lm	36 W	› 160.00 °	No
ST8V-1.2M 16 W/6500 K 1200 mm	G13	16 W	230 V	30000 h	1800 lm	36 W	› 160.00 °	No

ST8V-0.6M 8 W/3000 K 600 mm

Quick, simple and safe replacement of fluorescent lamps without rewiring the CCG
Realistic color rendering thanks high color saturation and excellent color rendering index
Outstanding quality of light
Lower maintenance cost thanks to longer lifetime than traditional Fluorescent
Correct operation even at low temperatures
RoHS-conformity
Mercury-free
High color rendition (Ra≥80) with excellent color fidelity for a true lighting effect

Luminous flux	850 lm
Luminous efficacy	106 lm/W
Light color (designation)	Warm White
Color temperature	3000 K
Color rendering index Ra	> 80
Light color	830
Standard deviation of color matching	≤6 sdcm

Beam angle	› 160.00 °
Starting time	< 0.5 s

Ambient temperature range

-20…+45 °C

Lifespan L70/B50 at 25 °C	30000 h
Number of switching cycles	100000

Dimmable

Type of protection

IP20

Order reference

ST8V-0.6M 8W/83

Lighting technology used	LED
Light source cap-type (or other electric interface)	G13
Length	604.00 mm
Height	28.00 mm
Width	28.00 mm

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Quick, simple and safe replacement of fluorescent lamps without rewiring the CCG
Realistic color rendering thanks high color saturation and excellent color rendering index
Outstanding quality of light
Lower maintenance cost thanks to longer lifetime than traditional Fluorescent
Correct operation even at low temperatures
RoHS-conformity
Mercury-free
High color rendition (Ra≥80) with excellent color fidelity for a true lighting effect

Areas of application

Product features

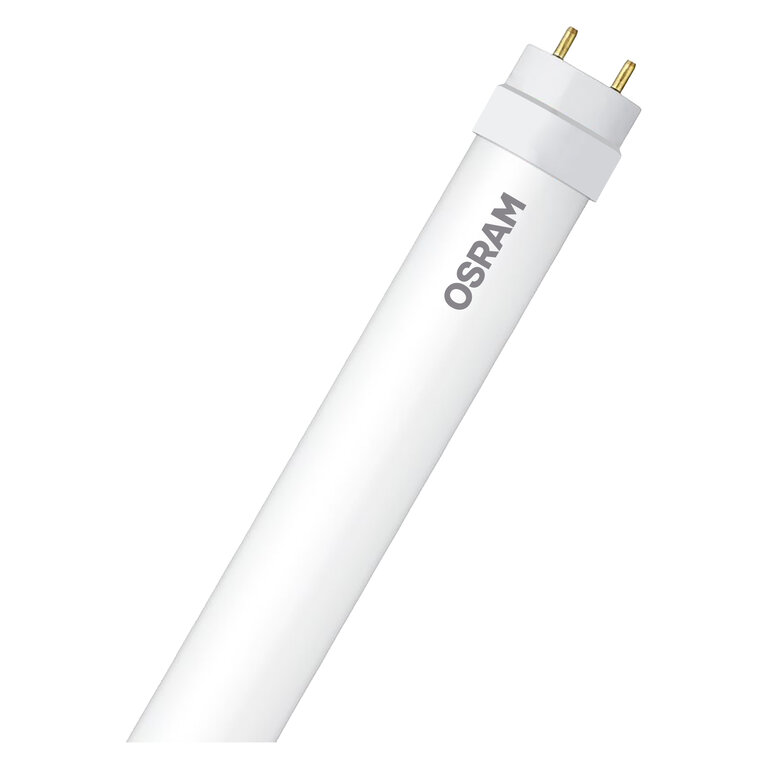

LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG luminaires
Lifetime: up to 30,000 h
High luminous efficacy: up to 112 lm/W
