SubstiTUBE Advanced DC T8

SubstiTUBE Advanced DC T8

Choose your product version

18 W/4000 K 1200 mm

18 W/5700 K 1200 mm

18 W/6500 K 1200 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Beam angle Dimmable
ST8A-DC 18 W/4000 K 1200 mm G13 18 W 38 V 50000 h 2100 lm 150 ° Yes
ST8A-DC 18 W/5700 K 1200 mm G13 18 W 38 V 50000 h 2100 lm 150 ° Yes
ST8A-DC 18 W/6500 K 1200 mm G13 18 W 38 V 50000 h 2100 lm 150 ° Yes


ST8A-DC 18 W/4000 K 1200 mm

Product benefits
  • Energy savings of up to 50 % compared to conventional T8 fluorescent lamps
  • Instant 100 % light, no warm-up time
  • Low flicker light thanks to LED driver LVED PRO 20/220-240/550 CS
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18 W
Construction wattage 18.00 W
Nominal voltage 38 V
Nominal current 500 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ > 0.90

Photometrical data

Luminous flux 2100 lm
Luminous efficacy 116 lm/W
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra ≥80
Light color 840

Light technical data

Beam angle 150 °

Dimensions & Weight

Overall length 1213.60 mm
Diameter 25.80 mm
Product weight 126.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Lifespan

Number of switching cycles 100000

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg

Capabilities

Dimmable Yes

Country-specific categorizations

Order reference ST8A-1.2M 18W/8

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G13
Length 1213.60 mm
Height 25.80 mm
Width 25.80 mm

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings of up to 50 % compared to conventional T8 fluorescent lamps
  • Instant 100 % light, no warm-up time
  • Low flicker light thanks to LED driver LVED PRO 20/220-240/550 CS
Areas of application
  • Offices, public buildings
  • Corridors, stairways, parking garages
  • Shops
  • General illumination within ambient temperatures from -20…+45 °C
Product features
  • Replacement for fluorescent lamps with G13 base
  • Suitable only for operation with LED driver
  • Dimmable with LED driver LVED PRO 20/220-240/550 CS
  • High color consistency
  • Mercury-free and RoHS compliant
  • Luminous efficacy: up to 116 lm/W
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075208179 Sleeve
1		 1,212 mm x 30 mm x 30 mm 149.00 g 1.09 dm³
4058075208186 Shipping box
25		 1,275 mm x 185 mm x 185 mm 4617.00 g 43.64 dm³

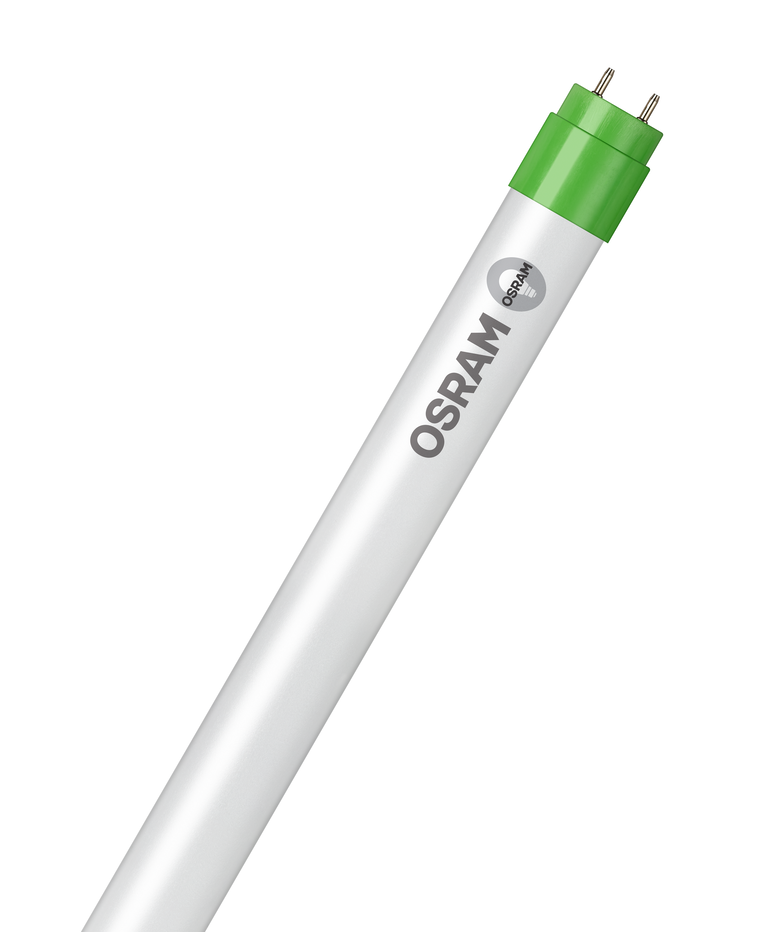

Product Image, Diagonal with OSRAM LOGO, White BG
SubstiTUBE T8 Advanced DC APM TIF (16.53 MB)
Prod.line drw, front, no dimensions
LED STAR+ T8 1.2M G13 SVG (3.73 KB)
IES file (IES)
IES files_AC13802 ST8A -1.2M 18W840 DC IES (1.24 KB)
