Professional
SUBSTITUBE ECO T8

SUBSTITUBE ECO T8

Choose your product version

9 W/3000 K 600 MM

9 W/4000 K 600 MM

9 W/6500 K 600 MM

10 W/3000 K 600 MM

10 W/4000 K 600 MM

10 W/6500 K 600 MM

18 W/3000 K 1200 MM

18 W/4000 K 1200 MM

18 W/6500 K 1200 MM

20 W/3000 K 1200 MM

20 W/4000 K 1200 MM

20 W/6500 K 1200 MM

22 W/3000 K 1200 MM

22 W/4000 K 1200 MM

22 W/6500 K 1200 MM

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Dimmable
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 9 W/3000 K 600 MM G13 9 W 220…240 V 15000 h 900 lm 18 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 9 W/4000 K 600 MM G13 9 W 220…240 V 15000 h 1000 lm 18 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 9 W/6500 K 600 MM G13 9 W 220…240 V 15000 h 1000 lm 18 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 10 W/3000 K 600 MM G13 10 W 220…240 V 15000 h 945 lm 18 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 10 W/4000 K 600 MM G13 10 W 220…240 V 15000 h 1050 lm 18 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 10 W/6500 K 600 MM G13 10 W 220…240 V 15000 h 1050 lm 18 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 18 W/3000 K 1200 MM G13 18 W 220…240 V 15000 h 1620 lm 36 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 18 W/4000 K 1200 MM G13 18 W 220…240 V 15000 h 1800 lm 36 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 18 W/6500 K 1200 MM G13 18 W 220…240 V 15000 h 1800 lm 36 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 20 W/3000 K 1200 MM G13 20 W 220…240 V 15000 h 1890 lm 36 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 20 W/4000 K 1200 MM G13 20 W 220…240 V 15000 h 2100 lm 36 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 20 W/6500 K 1200 MM G13 20 W 220…240 V 15000 h 2100 lm 36 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 22 W/3000 K 1200 MM G13 22 W 220…240 V 15000 h 2250 lm 36 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 22 W/4000 K 1200 MM G13 22 W 220…240 V 15000 h 2500 lm 36 W No
SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 22 W/6500 K 1200 MM G13 22 W 220…240 V 15000 h 2500 lm 36 W No


SUBSTITUBE ECO DE T8 WITH SAFETY GUARD PIN 9 W/3000 K 600 MM

Product benefits
  • High luminous flux for sophisticated lighting tasks
  • Easy installation
  • High luminous efficacy compared with standard lamps
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 9 W
Construction wattage 9.00 W
Nominal voltage 220…240 V
Nominal current 70 mA
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz

Photometrical data

Luminous flux 900 lm
Luminous efficacy 100 lm/W
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤6 sdcm

Light technical data

Starting time < 0.5 s

Dimensions & Weight

Overall length 600.00 mm
Diameter 28.00 mm
Maximum diameter 28 mm
Product weight 96.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C
Maximum temperature at tc test point <75 °C

Lifespan

Number of switching cycles 50000

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Type of protection IP20
Standards ROHS, EMC

Country-specific categorizations

Order reference ST8E-0.6M 9W/83

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Light source cap-type (or other electric interface) G13
Length 600.00 mm
Height 28.00 mm
Width 28.00 mm
Product benefits
  • High luminous flux for sophisticated lighting tasks
  • Easy installation
  • High luminous efficacy compared with standard lamps
Areas of application
  • Train stations
  • Offices
  • Underground stations
  • Supermarkets and department stores
  • Parking lots, warehouses, production areas, stairways
Product features
  • T8 LED tube made of glass with G13 base
  • Double-end input design
  • Mercury-free lamps
  • Type of protection: IP20
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854204968 Sleeve
1		 610 mm x 28 mm x 28 mm 127.00 g 0.48 dm³
4099854204975 Shipping box
25		 660 mm x 167 mm x 185 mm 4156.00 g 20.39 dm³

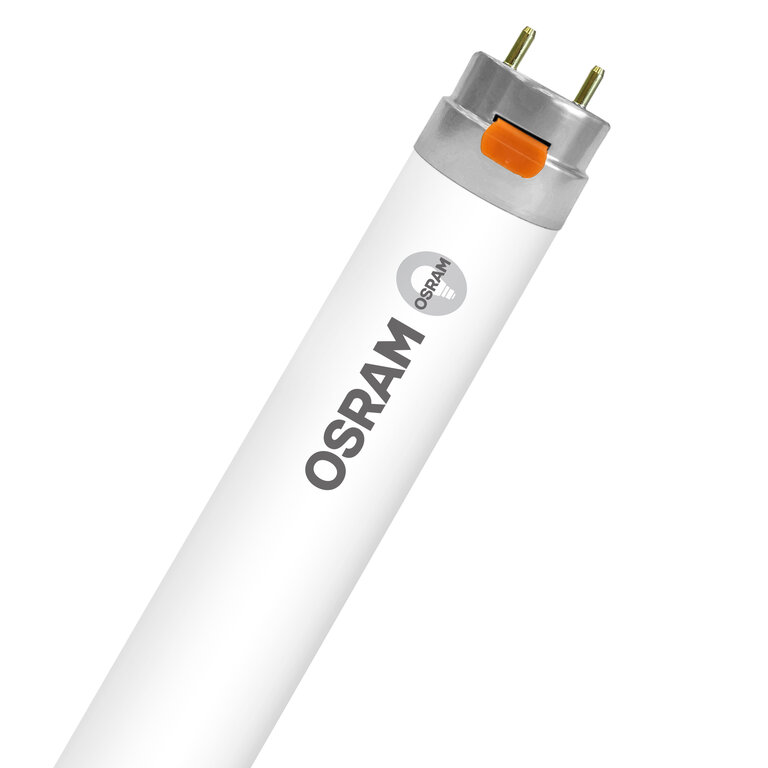

Product Image, Diagonal with OSRAM LOGO, White BG
ST8E 0.6M 1.2M Silver end cap JPG (720.07 KB)

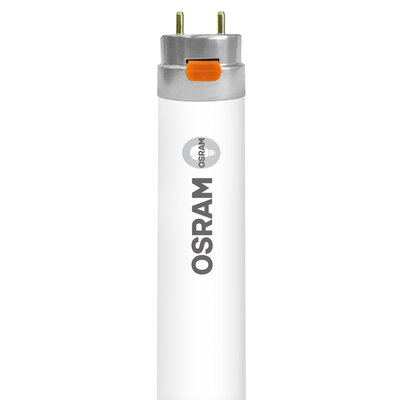

Product Image, Diagonal with OSRAM LOGO, White BG
ST8E 0.6M 1.2M Silver end cap JPG (907.06 KB)

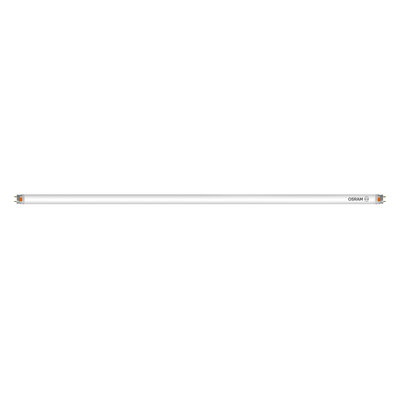

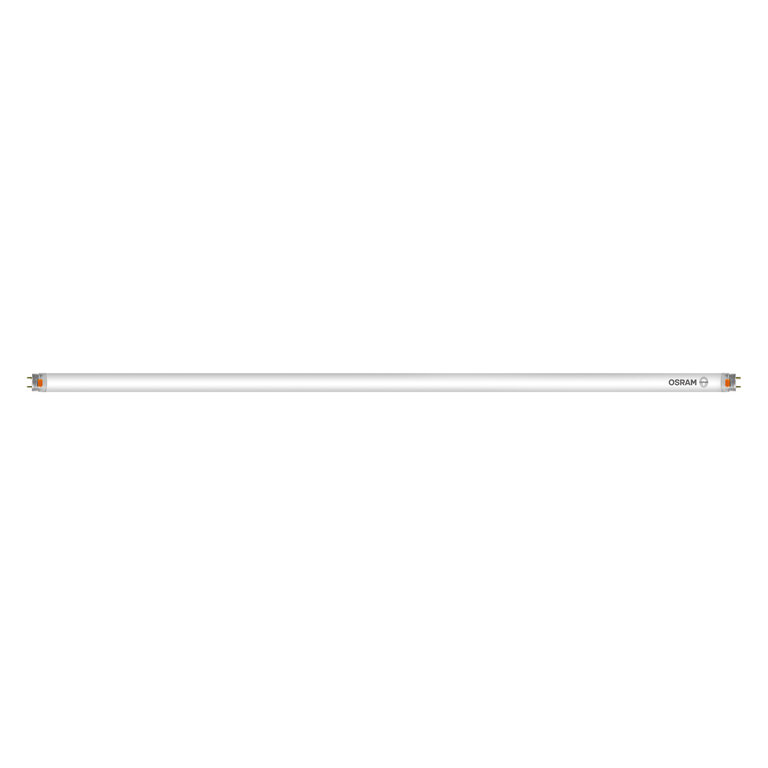

Product Image, Horizontal with OSRAM LOGO, White BG
ST8E DE Silver T8 WITH Orange SAFETY GUARD P IN JPG (670.62 KB)
Product Image, Horizontal with OSRAM LOGO, White BG
ST8E 0.6M 1.2M Silver end cap JPG (670.63 KB)

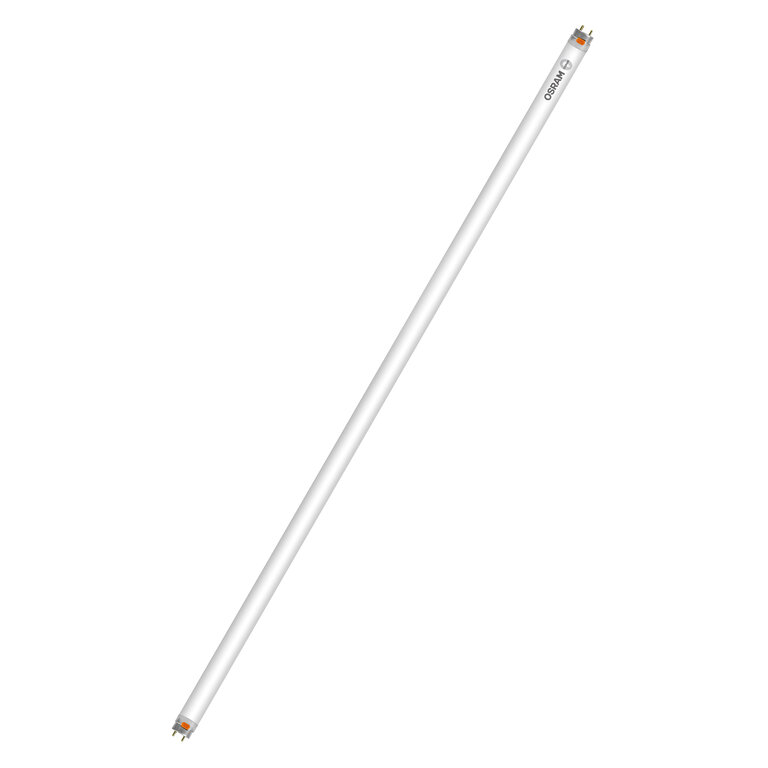

Product Image, Upright with Osram LOGO, White BG
ST8E 0.6M 1.2M Silver end cap JPG (862.86 KB)
Prod.line drw, front, no dimensions
338275_SubstiTUBE Basi c ST8-HB SVG (3.88 KB)
IES file (IES)
ST8E 0.6M 9W 830 230VA C DE IES (10.05 KB)
LDT file (Eulumdat)
ST8E 0.6M 9W 830 230VA C DE LDT (6.51 KB)
LDC typ polar
ST8E 0.6M 9W 830 230VA C DE SVG (20.38 KB)
