SubstiTUBE T5 220-240V AC

Choose your product version

Phase out

8 W/4000 K 549 mm

Phase out

8 W/6500 K 549 mm

Phase out

16 W/4000 K 1163 mm

Phase out

16 W/6500 K 1163 mm

Phase out

18 W/4000 K 1463 mm

Phase out

18 W/6500 K 1463 mm

Phase out

26 W/4000 K 1163 mm

Phase out

26 W/4000 K 1463 mm

Phase out

26 W/6500 K 1163 mm

Phase out

26 W/6500 K 1463 mm

Phase out

37 W/6500 K 1463 mm

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
SubstiTUBE T5 AC HE14 8 W/4000 K 549 mm G5 8 W 220…240 V 50000 h 1200 lm 14 W 160 ° No
SubstiTUBE T5 AC HE14 8 W/6500 K 549 mm G5 8 W 220…240 V 50000 h 1200 lm 14 W 160 ° No
SubstiTUBE T5 AC HE28 16 W/4000 K 1163 mm G5 16 W 220…240 V 50000 h 2400 lm 28 W 160 ° No
SubstiTUBE T5 AC HE28 16 W/6500 K 1163 mm G5 16 W 220…240 V 50000 h 2400 lm 28 W 160 ° No
SubstiTUBE T5 AC HE35 18 W/4000 K 1463 mm G5 18 W 220…240 V 50000 h 2800 lm 35 W 160 ° No
SubstiTUBE T5 AC HE35 18 W/6500 K 1463 mm G5 18 W 220…240 V 50000 h 2800 lm 35 W 160 ° No
SubstiTUBE T5 AC HO54 26 W/4000 K 1163 mm G5 26 W 220…240 V 50000 h 4000 lm 54 W 160 ° No
SubstiTUBE T5 AC HO49 26 W/4000 K 1463 mm G5 26 W 220…240 V 50000 h 4000 lm 49 W 160 ° No
SubstiTUBE T5 AC HO54 26 W/6500 K 1163 mm G5 26 W 220…240 V 50000 h 4000 lm 54 W 160 ° No
SubstiTUBE T5 AC HO49 26 W/6500 K 1463 mm G5 26 W 220…240 V 50000 h 4000 lm 49 W 160 ° No
SubstiTUBE T5 AC HO80 37 W/6500 K 1463 mm G5 37 W 220…240 V 50000 h 5600 lm 80 W 160 ° No
Phase out


SubstiTUBE T5 AC HE14 8 W/4000 K 549 mm

Product benefits
  • No bending thanks to glass technology
  • Shatter protection thanks to special PET coating
  • High luminous flux for sophisticated lighting tasks
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 8 W
Construction wattage 8.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 37 mA
Type of current AC
Inrush current 3.7 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 122
Max. lamp number on MCB B16 A 170
Total harmonic distortion < 20 %
Power factor λ > 0.90

Photometrical data

Luminous flux 1200 lm
Luminous efficacy 150 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 83
Light color 840
Standard deviation of color matching ≤5 sdcm
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 160 °
Warm-up time (60 %) ‹ 2.00 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 563.00 mm
Length with base excl. base pins/connection 549.00 mm
Diameter 19.00 mm
Product weight 80.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C
Maximum temperature at tc test point 60 °C

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Number of switching cycles 50000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G5
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class D 1)
Energy consumption 8.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T5 AC H

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G5
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS 0 W
Claim of equivalent power No
Length 563.00 mm
Height 19.00 mm
Width 19.00 mm
Chromaticity coordinate x 0.381
Chromaticity coordinate y 0.379
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 642855
Model number AC35140

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass technology
  • Shatter protection thanks to special PET coating
  • High luminous flux for sophisticated lighting tasks
Areas of application
  • Offices, public buildings
  • Supermarkets and department stores
  • Industry
  • General illumination within ambient temperatures from -20…+45 °C
Product features
  • LED replacement for T5 fluorescent lamps with G5 base on AC mains
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
  • High color consistency: ≤ 5 sdcm
  • Lifetime up to 50,000 h
  • Low flicker according to EU 2019/2020
  • Type of protection: IP20
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • After rewiring of a luminaire the installer will be responsible for all technical and safety consequences.
  • All electrical connections must be made by a qualified person.
  • Disconnect mains before installation.
  • Not suitable for emergency lighting.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075543560 Sleeve
1		 565 mm x 20 mm x 24 mm 93.00 g 0.27 dm³
4058075543577 Shipping box
10		 618 mm x 153 mm x 80 mm 1197.00 g 7.56 dm³
User instruction / safety instructions

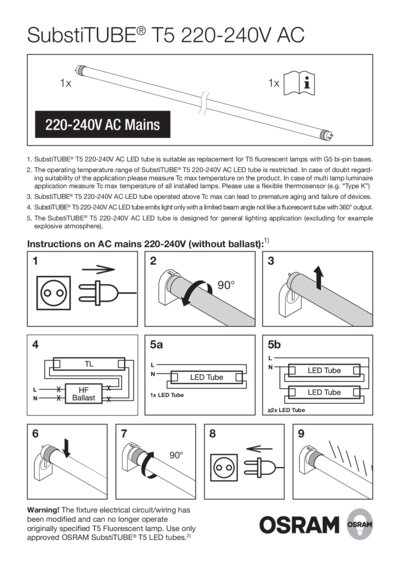

SubstiTUBE T5 220-240V AC PDF (3.12 MB)
Extended installation guide

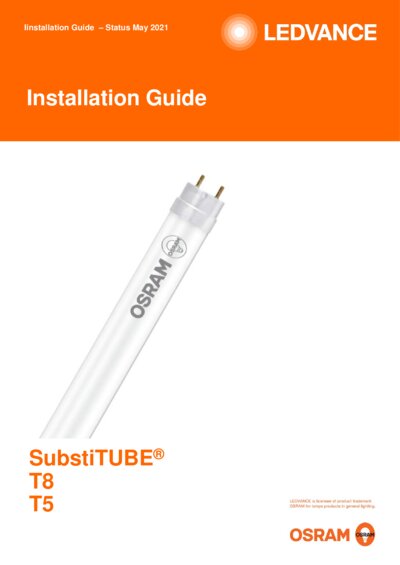

SubstiTUBE® T8 T5 PDF (1.23 MB)
Declarations of conformity

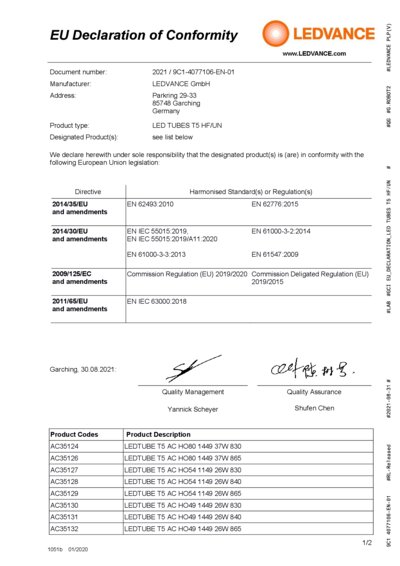

LEDTUBE T5 AC PDF (41.43 KB)
Product image: white background, diagonal with OSRAM logo
T5 OSRAM SubstiTube TIF (146.04 MB)
Product image: white background, diagonal, alternative image
T5 LED tube TIF (72.64 MB)
Product image: white background, horizontal, OSRAM logo
T5 LED tube TIF (72.64 MB)
Product image: white background, horizontal, OSRAM logo
T5 OSRAM SubstiTube ho rizontal JPG (122.66 KB)
Product image: white background, upright, OSRAM logo
T5 LED tube TIF (72.64 MB)
Product line drawing with letters
product drawings T5 SVG (8.95 KB)
Product line drawing with numbers
ST5H14 0.6M 220-240V A C G5 OSRAM SVG (39.38 KB)
Catalog info 6

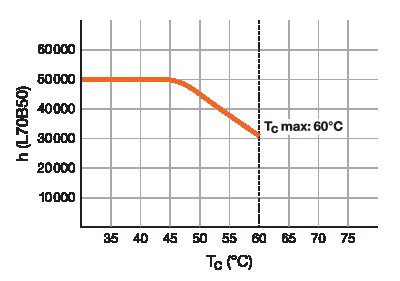

LIFETIME CURVE TC_ST5H E14 0.6m 8W 220-240V A C EPS (1.29 MB)
Energy label
EL-4058075543560-AC351 40 PDF (21.58 KB)
Logos and pictos
D left SVG (1.8 KB)
Logos and pictos
D left BW SVG (1.07 KB)
Logos and pictos
D right SVG (1.77 KB)
Logos and pictos
D right BW SVG (1.07 KB)
IES file (IES)
ST5HE14 0.6M 8W 840 22 0-240V AC G5 OSRAM IES (4.18 KB)
LDT file (Eulumdat)
ST5HE14 0.6M 8W 840 22 0-240V AC G5 OSRAM LDT (9.76 KB)

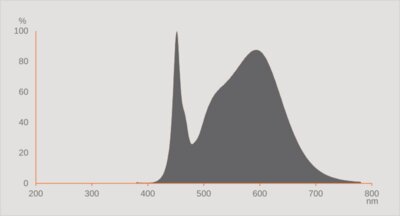

Spectral power distribution
EPREL data spectral di agram PROF LEDr 4000K PNG (116.83 KB)
