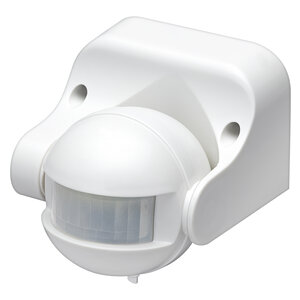

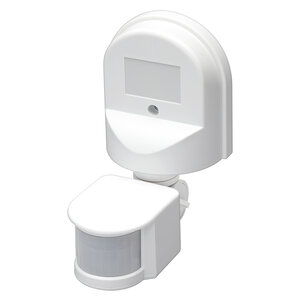

LED VALUE PIR Motion Sensor - Wall Mounted

LED VALUE PIR Motion Sensor - Wall Mounted

Choose your product version



MS-SV INF-WS-AD 180 220-240 V IP44 A

Product benefits

PRODUCT DETAILS

Electrical data

Nominal voltage 220…240 V
Mains frequency 50…60 Hz

Dimensions & Weight

Length 86.50 mm
Width 65.50 mm
Height 83.00 mm
Product weight 117.6 g

Colors & materials

Product color White

Temperatures & operating conditions

Ambient temperature range -20…+45 °C

Capabilities

Dimmable No
Maximum installation height 1.8…2.5 m
Detection area 12 m 1)
Detection angle 180 °

1) Maximum diameter

Certificates & Standards

Protection class II
Type of protection IP44

LOGISTICAL DATA

Temperature range at storage -35…+55 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Areas of application
  • Suitable for indoor and sheltered outdoor areas
  • Offices
  • Corridors
  • Stairways
  • Residential interiors
  • Commercial buildings
Product features
  • 180° motion sensor (passive infrared technology)
  • Wall surface mounting
  • Timer function
  • Adjustable illuminance from 10 lx to 2000 lx via dip switch
  • Photocell detector available for daylight detection
  • Input voltage: 220…240 VAC
  • Operating frequency: 50/60 Hz
  • Ambient temperature in operation: -20…+45 °C
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075373037 Folding box
1
92 mm x 75 mm x 107 mm 148.00 g 0.74 dm³
4058075373044 Shipping box
10
387 mm x 196 mm x 127 mm 1696.00 g 9.63 dm³
EAN AU model number
4058075373037 LDVSENSORPIRWSAD180A
