LED ECO DAMPPROOF HOUSING GEN2

LED ECO DAMPPROOF HOUSING GEN2

Choose your product version

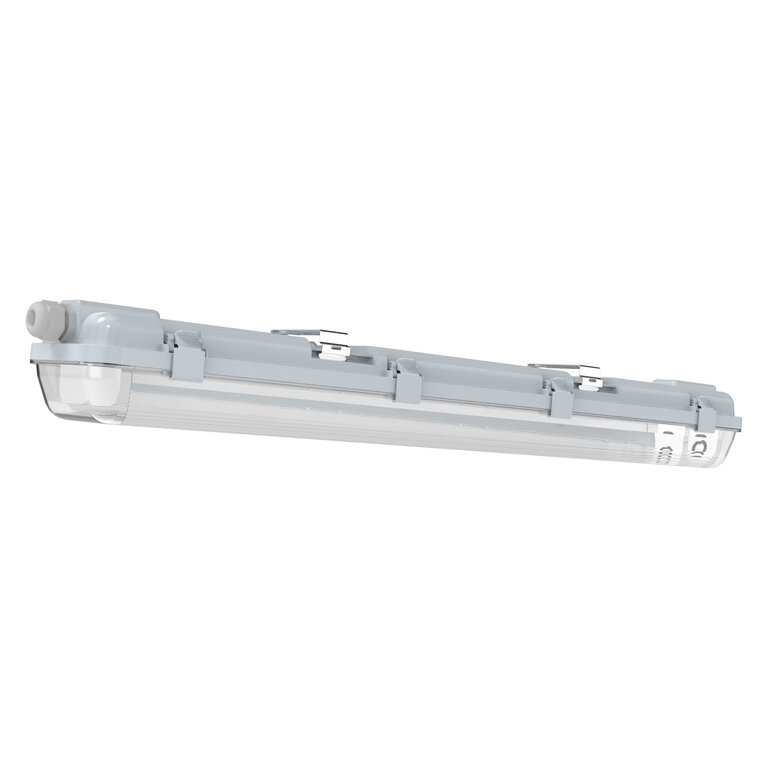

LED ECO DAMPPROOF HOUSING 600 2XLAMP

Product benefits
  • UV stabilized, impact resistant polycarbonate diffuser and body
  • PC clips and stainless-steel clips
  • Fused design to offer protection when inserting traditional T8 florescent tubes by mistake
  • Designed to work with IEC 62776 compliant LED T8 with AC input on one end

PRODUCT DETAILS

Dimensions & Weight

Length 651.00 mm
Height 70.00 mm
Width 105.00 mm
Product weight 636.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Type of connection Terminal, 2-Pole (L, N)
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Product benefits
  • UV stabilized, impact resistant polycarbonate diffuser and body
  • PC clips and stainless-steel clips
  • Fused design to offer protection when inserting traditional T8 florescent tubes by mistake
  • Designed to work with IEC 62776 compliant LED T8 with AC input on one end
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • 2 series to choose from: with and without metal tray in the housing
  • Available with: 2 ft, 4 ft and 5 ft
  • 70 mm full height housing design in all models
  • Available in 1 lamp & 2 lamps versions
  • Type of protection: IP65
  • Impact resistance: IK08
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075544284 Folding box
1
110 mm x 79 mm x 655 mm 814.00 g 5.69 dm³
4058075544291 Shipping box
6
672 mm x 236 mm x 265 mm 5501.00 g 42.03 dm³
