Professional
LED ECO DAMPPROOF HOUSING GEN2 WMT

LED ECO DAMPPROOF HOUSING GEN2 WMT

Choose your product version

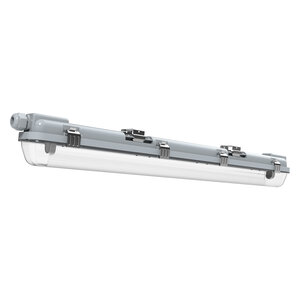

LED ECO DAMPPROOF HOUSING 06X1 WMT

Product benefits
  • UV stabilized, impact resistant polycarbonate diffuser and body
  • PC clips and stainless-steel clips
  • Fused design to offer protection when inserting traditional T8 florescent tubes by mistake
  • Designed to work with IEC 62776 compliant LED T8 with AC input on one end

PRODUCT DETAILS

Dimensions & Weight

Length 651.00 mm
Height 70.00 mm
Width 64.00 mm
Product weight 580.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Type of connection Terminal, 2-Pole (L, N)
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling, Wall

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • UV stabilized, impact resistant polycarbonate diffuser and body
  • PC clips and stainless-steel clips
  • Fused design to offer protection when inserting traditional T8 florescent tubes by mistake
  • Designed to work with IEC 62776 compliant LED T8 with AC input on one end
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • 2 series to choose from: with and without metal tray in the housing
  • Available with: 2 ft, 4 ft and 5 ft
  • 70 mm full height housing design in all models
  • Available in 1 lamp & 2 lamps versions
  • Type of protection: IP65
  • Impact resistance: IK08
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075548701 Folding box
1
72 mm x 79 mm x 655 mm 758.00 g 3.73 dm³
4058075548718 Shipping box
9
672 mm x 236 mm x 265 mm 7439.00 g 42.03 dm³
