Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| DL ALU DN 150 14 W 3000 K IP44/IP20 WT | 14.00 W | 100000 | 100 ° | 1190 lm | No |
| DL ALU DN 150 14 W 4000 K IP44/IP20 WT | 14.00 W | 100000 | 100 ° | 1260 lm | No |
| DL ALU DN 150 14W 6500 K IP44/IP20 WT | 14.00 W | 100000 | 100 ° | 1330 lm | No |
| DL ALU DN 200 25 W 3000 K IP44/IP20 WT | 25.00 W | 100000 | 100 ° | 2250 lm | No |
| DL ALU DN 200 25 W 4000 K IP44/IP20 WT | 25.00 W | 100000 | 100 ° | 2370 lm | No |
| DL ALU DN 200 25 W 6500 K IP44/IP20 WT | 25.00 W | 100000 | 100 ° | 2370 lm | No |
| DL ALU DN 200 35 W 3000 K IP44/IP20 WT | 35.00 W | 100000 | 100 ° | 2975 lm | No |
| DL ALU DN 200 35 W 4000 K IP44/IP20 WT | 35.00 W | 100000 | 100 ° | 3150 lm | No |
| DL ALU DN 200 35 W 6500 K IP44/IP20 WT | 35.00 W | 100000 | 100 ° | 3150 lm | No |
| Nominal wattage | 14.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 100 mA |
| Inrush current | 4 A |
| Max. number of luminaires per miniature circuit breaker B16 | 128 |
| Max. number of luminaires per miniature circuit breaker C10 | 80 |
| Max. number of luminaires per miniature circuit breaker C16 | 128 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
| Luminous flux | 1190 lm |
| Luminous efficacy | 85 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 100 ° |
| Diameter | 160.00 mm |
| Height | 52.00 mm |
| Product weight | 360.00 g |
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screwless terminal, 2-Pole |
| Type of protection | IP44/IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 150 mm |
| Mounting depth | 100 mm |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 45000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 300 mA |
| ECG - Output ripple current | < 45 % |
| ECG - Length | 83 mm |
| ECG - Width | 39 mm |
| ECG - Height | 28 mm |

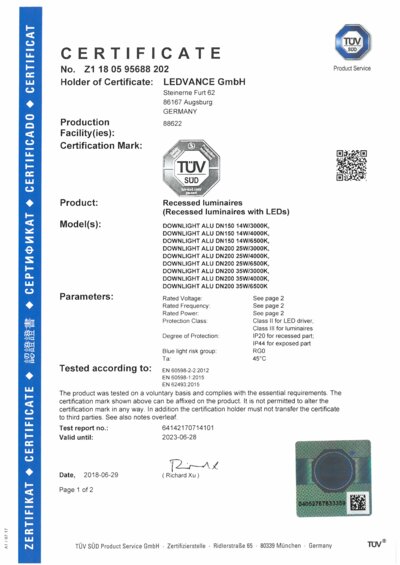

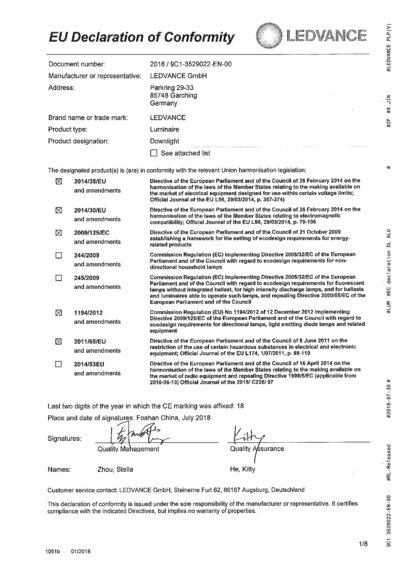

| Standards | CE, CB, ENEC, TÜV SÜD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Number of illuminants | Not relevant |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075091436 | Folding box 1 |
175 mm x 175 mm x 85 mm | 480.00 g | 2.60 dm³ |
| 4058075091443 | Shipping box 8 |
365 mm x 365 mm x 185 mm | 4090.00 g | 24.65 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
EM CONVERSION BOX | 4058075237025 |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075091436 | 7470495 | 4231836 | 3201669 | 941400000 |
