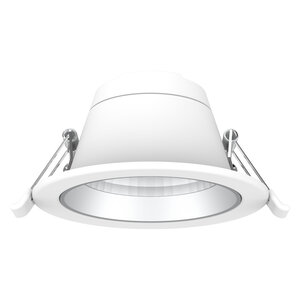

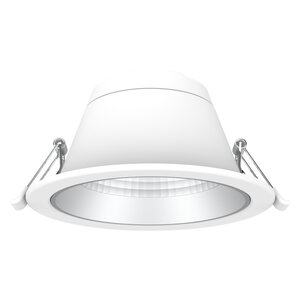

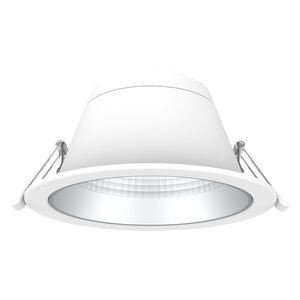

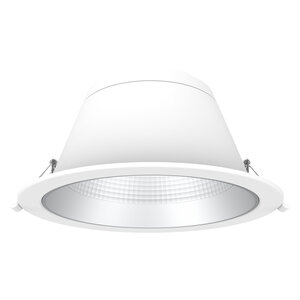

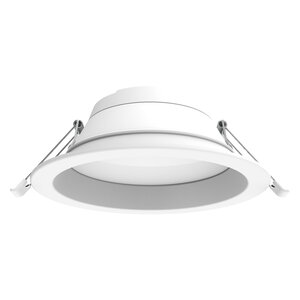

LED VALUE DOWNLIGHT ALU GEN2

Choose your product version

OVERVIEW

Product description Nominal wattage Beam angle Dimmable
10.00 W 105 ° No
10.00 W 80 ° No
15.00 W 105 ° No
15.00 W 80 ° No
20.00 W 105 ° No
20.00 W 80 ° No
35.00 W 105 ° No
35.00 W 80 ° No


Product benefits
  • Selectable color temperature: 3000K or 4000K or 6500K

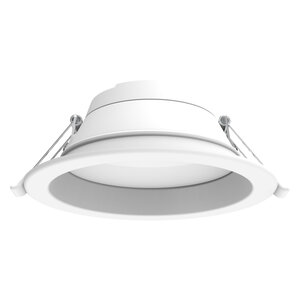

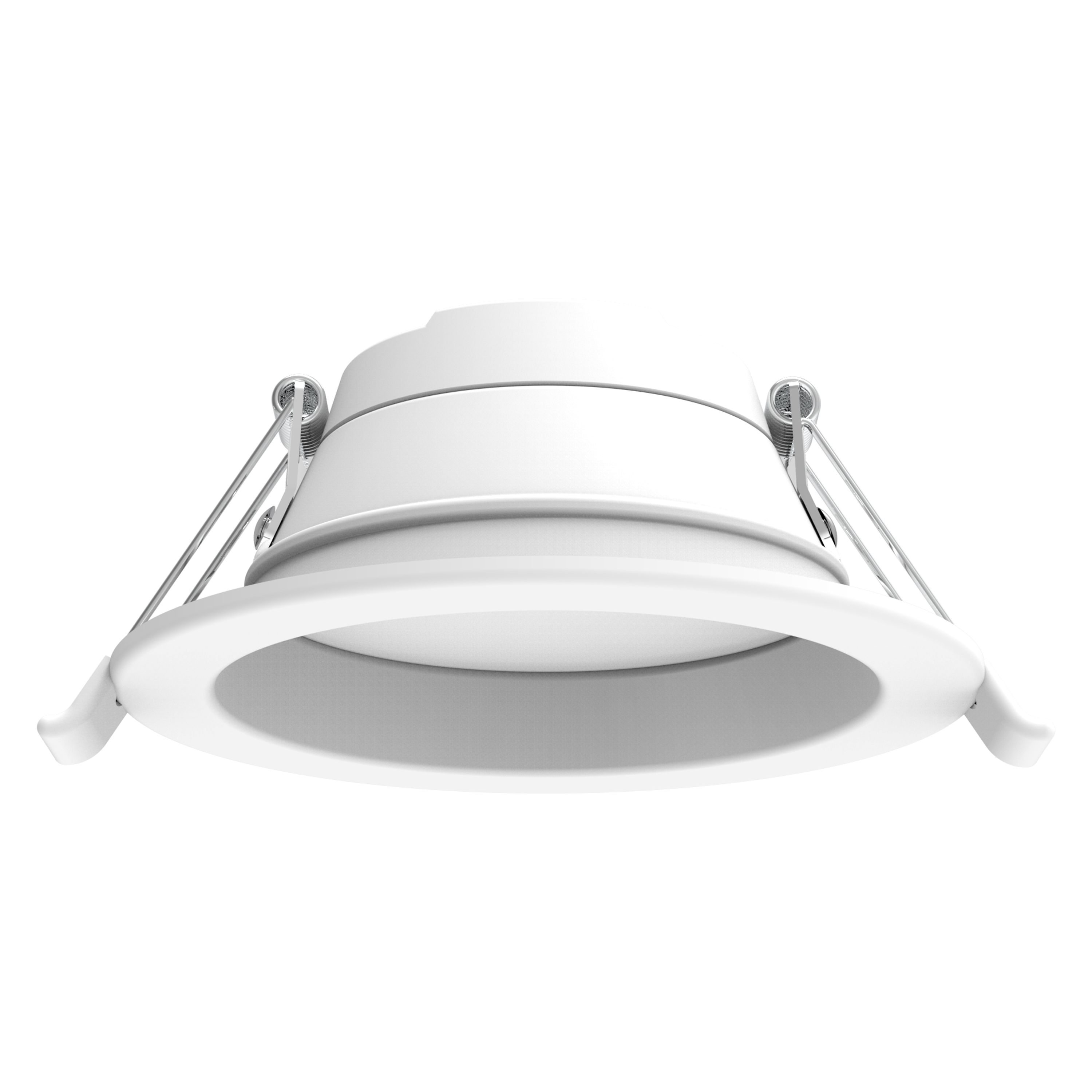

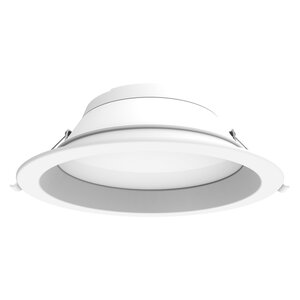

  • Two versions for structure selection: diffusor version, reflector version
  • Luminous flux output of up to 4200 lm
  • IP54 rating for the front side of reflector version, indicating water resistance
  • Flicker-free driver, ensuring a stable and comfortable lighting experience
  • Safety compliance certificates: CB, EU RoHS 2.0, indicating adherence to safety and environmental regulations

PRODUCT DETAILS

Electrical data

Nominal wattage 10.00 W
Nominal voltage 100…277 V
Mains frequency 50…60 Hz
Protection class II

Photometrical data

Color rendering index Ra ≥80
Beam angle 105 °

Dimensions & Weight

Diameter 113.00 mm
Height 60.00 mm
Product weight 150.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Mercury content 0.0 mg

Application & Mounting

Type of protection IP20/IP40
Dimmable No
Mounting type Recessed
Replaceable light source No

Certificates & Standards

Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Selectable color temperature: 3000K or 4000K or 6500K
  • Two versions for structure selection: diffusor version, reflector version
  • Luminous flux output of up to 4200 lm
  • IP54 rating for the front side of reflector version, indicating water resistance
  • Flicker-free driver, ensuring a stable and comfortable lighting experience
  • Safety compliance certificates: CB, EU RoHS 2.0, indicating adherence to safety and environmental regulations
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854308413 Folding box
1
140 mm x 130 mm x 75 mm 200.00 g 1.37 dm³
4099854308420 Shipping box
24
410 mm x 300 mm x 325 mm 5300.00 g 39.98 dm³
