Professional

LED SUPERIOR SMART PRO DOWNLIGHT 1 CHANNEL

Choose your product version

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
LDSUP SMART PRO DL 105 8W 830BT 8.00 W 65 ° 817 lm Yes
LDSUP SMART PRO DL 105 8W 840BT 8.00 W 65 ° 860 lm Yes
LDSUP SMART PRO DL 105 8W 865BT 8.00 W 65 ° 860 lm Yes
LDSUP SMART PRO DL 150 12W830BT 12.00 W 65 ° 1284 lm Yes
LDSUP SMART PRO DL 150 12W840BT 12.00 W 65 ° 1356 lm Yes
LDSUP SMART PRO DL 150 12W865BT 12.00 W 65 ° 1356 lm Yes
LDSUP SMART PRO DL 150 16W830BT 16.00 W 65 ° 1682 lm Yes
LDSUP SMART PRO DL 150 16W840BT 16.00 W 65 ° 1770 lm Yes
LDSUP SMART PRO DL 150 16W865BT 16.00 W 65 ° 1770 lm Yes
LDSUP SMART PRO DL 190 16W830BT 16.00 W 65 ° 1805 lm Yes
LDSUP SMART PRO DL 190 16W840BT 16.00 W 65 ° 1900 lm Yes
LDSUP SMART PRO DL 190 16W865BT 16.00 W 65 ° 1900 lm Yes
LDSUP SMART PRO DL 190 20W830BT 20.00 W 65 ° 2220 lm Yes
LDSUP SMART PRO DL 190 20W840BT 20.00 W 65 ° 2400 lm Yes
LDSUP SMART PRO DL 190 20W865BT 20.00 W 65 ° 2400 lm Yes
LDSUP SMART PRO DL 190 29W830BT 29.00 W 65 ° 3250 lm Yes
LDSUP SMART PRO DL 190 29W840BT 29.00 W 65 ° 3500 lm Yes
LDSUP SMART PRO DL 190 29W865BT 29.00 W 65 ° 3500 lm Yes


LDSUP SMART PRO DL 105 8W 830BT

Product benefits
  • Suitable luminaire for SMART+PRO BLE Mesh light management system with low power, highly scalable and stable ecosystem
  • 1 output current channel
  • Die-cast aluminum housing for improved heat dissipation
  • Good glare reduction (UGR < 19) and cut off angle up to 30° for comfortable indoor lighting
  • External driver design allows for flexible change of control gear
  • Low maintenance and operation costs due to long lifetime of LED
  • Type of protection: IP54 (room side) provides additional protection against humidity

PRODUCT DETAILS

Electrical data

Nominal wattage 8.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 200 mA
Power factor λ > 0.80
Protection class II

Photometrical data

Luminous flux 817 lm
Luminous efficacy 102 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Beam angle 65 °

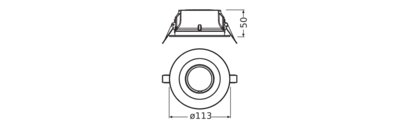

Dimensions & Weight

Diameter 112.00 mm
Height 50.00 mm
Product weight 300.00 g

Materials & Colors

Product color Gray/White
Housing color Gray/White
Body material Aluminum
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Type of protection IP20
Dimmable Yes
Type of dimming Bluetooth
Mounting type Recessed

Lifespan

Lifespan L70/B50 at 25 °C 50000 h

Certificates & Standards

Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Suitable luminaire for SMART+PRO BLE Mesh light management system with low power, highly scalable and stable ecosystem
  • 1 output current channel
  • Die-cast aluminum housing for improved heat dissipation
  • Good glare reduction (UGR < 19) and cut off angle up to 30° for comfortable indoor lighting
  • External driver design allows for flexible change of control gear
  • Low maintenance and operation costs due to long lifetime of LED
  • Type of protection: IP54 (room side) provides additional protection against humidity
Product features
  • Available with diameter: 4 inch, 6 inch and 8 inch
  • Available with color temperature: 3,000 K, 4,000 K, 6,500 K
  • Color rendering index Ra: > 80
  • Initial color consistency: < 5 SDCM
  • Long lifetime up to 50,000 h
  • LEDVANCE SMART+PRO app required for commissioning of the SMART+PRO system only (available for Android and iOS)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854390791 Folding box
1
174 mm x 74 mm x 177 mm 417.00 g 2.28 dm³
4099854390807 Shipping box
30
543 mm x 390 mm x 385 mm 13642.00 g 81.53 dm³
