LED VALUE SLIM DOWNLIGHT

LED VALUE SLIM DOWNLIGHT

Choose your product version

4 W/3000 K

4 W/3000 K

4 W/4000 K

4 W/4000 K

4 W/6500 K

4 W/6500 K

9 W/3000 K

9 W/3000 K

9 W/4000 K

9 W/4000 K

9 W/6500 K

9 W/6500 K

15 W/3000 K

15 W/3000 K

15 W/4000 K

15 W/4000 K

15 W/6500 K

15 W/6500 K

18 W/3000 K

18 W/3000 K

18 W/4000 K

18 W/4000 K

18 W/6500 K

18 W/6500 K

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LED Value Slim Downlight 4 W/3000 K 4.00 W 50000 120 ° 180 lm No
LED Value Slim Downlight 4 W/3000 K 4.00 W 50000 120 ° 180 lm No
LED Value Slim Downlight 4 W/4000 K 4.00 W 50000 120 ° 200 lm No
LED Value Slim Downlight 4 W/4000 K 4.00 W 50000 120 ° 200 lm No
LED Value Slim Downlight 4 W/6500 K 4.00 W 50000 120 ° 200 lm No
LED Value Slim Downlight 4 W/6500 K 4.00 W 50000 120 ° 200 lm No
LED Value Slim Downlight 9 W/3000 K 9.00 W 25000 120 ° 540 lm No
LED Value Slim Downlight 9 W/3000 K 9.00 W 25000 120 ° 540 lm No
LED Value Slim Downlight 9 W/4000 K 9.00 W 25000 120 ° 600 lm No
LED Value Slim Downlight 9 W/4000 K 9.00 W 25000 120 ° 600 lm No
LED Value Slim Downlight 9 W/6500 K 9.00 W 25000 120 ° 600 lm No
LED Value Slim Downlight 9 W/6500 K 9.00 W 25000 120 ° 600 lm No
LED Value Slim Downlight 15 W/3000 K 15.00 W 25000 120 ° 1080 lm No
LED Value Slim Downlight 15 W/3000 K 15.00 W 25000 120 ° 1080 lm No
LED Value Slim Downlight 15 W/4000 K 15.00 W 25000 120 ° 1200 lm No
LED Value Slim Downlight 15 W/4000 K 15.00 W 25000 120 ° 1200 lm No
LED Value Slim Downlight 15 W/6500 K 15.00 W 25000 120 ° 1200 lm No
LED Value Slim Downlight 15 W/6500 K 15.00 W 50000 120 ° 1200 lm No
LED Value Slim Downlight 18 W/3000 K 18.00 W 25000 120 ° 1440 lm No
LED Value Slim Downlight 18 W/3000 K 18.00 W 25000 120 ° 1440 lm No
LED Value Slim Downlight 18 W/4000 K 18.00 W 25000 120 ° 1600 lm No
LED Value Slim Downlight 18 W/4000 K 18.00 W 25000 120 ° 1600 lm No
LED Value Slim Downlight 18 W/6500 K 18.00 W 25000 120 ° 1600 lm No
LED Value Slim Downlight 18 W/6500 K 18.00 W 25000 120 ° 1600 lm No


LED Value Slim Downlight 15 W/3000 K

Product benefits
  • Die-cast aluminum housing for improved heat dissipation
  • No light can escape at the back of the luminaires thanks a special cover
  • Elegant design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 15.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ 0.50
Protection class II

Photometrical data

Luminous flux 1080 lm
Luminous efficacy 72 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra 80
Standard deviation of color matching ≤6 sdcm
Beam angle 120 °

Dimensions & Weight

Diameter 170.00 mm
Height 20.00 mm
Product weight 220.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Plastic
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -10…+50 °C
Temperature range at storage -20…+70 °C
Type of protection IP20
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 150 mm
Mounting depth 30 mm
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Product benefits
  • Die-cast aluminum housing for improved heat dissipation
  • No light can escape at the back of the luminaires thanks a special cover
  • Elegant design
Areas of application
  • Corridors, entrance areas
  • Foyers
  • Elevators
  • Retail
Product features
  • Product color: white
  • Available with color temperature: 3,000 K, 4,000 K, 6,500 K
  • Color rendering index Ra: > 80
  • High color consistency: ≤ 6 SDCM
  • Luminaire efficacy: up to 89 lm/W
  • Type of protection: IP20
  • Lifetime (L70/B50): up to 30,000 h
  • Protection class: II
  • Uniform illumination
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075314139 Folding box
1		 177 mm x 47 mm x 174 mm 287.00 g 1.45 dm³
4058075314146 Shipping box
20		 478 mm x 189 mm x 379 mm 6235.00 g 34.24 dm³
Product Image, Horizontal, White BG

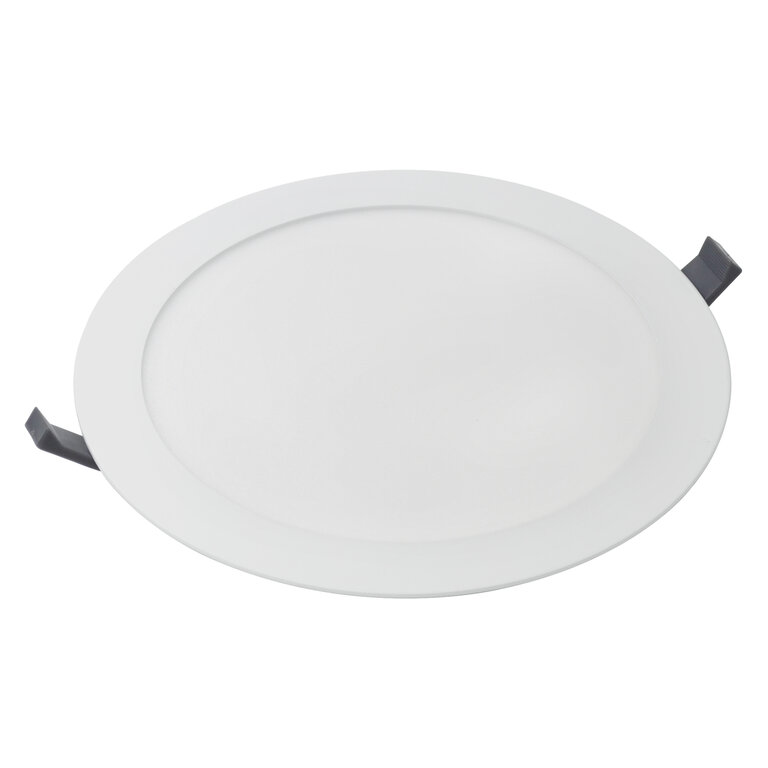

LED slim downlight/pan el Round JPG (1.21 MB)
Product line drawing with numbers
LDVAL SLIM Downlight R D 150 15W SVG (556.07 KB)
IES file (IES)
LDVAL SLIMDL RD 150 15 W 830 IES (11.26 KB)
