DOWNLIGHT SLIM ROUND

DOWNLIGHT SLIM ROUND

Choose your product version

105 6 W 3000 K WT

105 6 W 4000 K WT

105 6 W 6500 K WT

155 12 W 3000 K WT

155 12 W 4000 K WT

155 12 W 6500 K WT

210 18 W 3000 K WT

210 18 W 4000 K WT

210 18 W 6500 K WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DL SLIM DN 105 6 W 3000 K WT 6.00 W 50000 120 ° 420 lm No
DL SLIM DN 105 6 W 4000 K WT 6.00 W 50000 120 ° 430 lm No
DL SLIM DN 105 6 W 6500 K WT 6.00 W 50000 120 ° 430 lm No
DL SLIM DN 155 12 W 3000 K WT 12.00 W 50000 120 ° 1020 lm No
DL SLIM DN 155 12 W 4000 K WT 12.00 W 50000 120 ° 1020 lm No
DL SLIM DN 155 12 W 6500 K WT 12.00 W 50000 120 ° 1020 lm No
DL SLIM DN 210 18 W 3000 K WT 18.00 W 50000 120 ° 1530 lm No
DL SLIM DN 210 18 W 4000 K WT 18.00 W 50000 120 ° 1530 lm No
DL SLIM DN   210 18 W 6500 K WT 18.00 W 50000 120 ° 1530 lm No


DL SLIM DN 105 6 W 3000 K WT

Product benefits
  • Very slim housing
  • Low installation depth
  • High luminous efficacy
  • Energy savings up to 60 % (compared to luminaires that use CFL lamps)
  • Very homogenous light
  • Functional design
  • Easy installation with fast connection
  • Simple installation thanks to integrated driver
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 6.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 58 mA
Inrush current 6 A
Inrush current time Th50 120 µs
Max. number of luminaires per miniature circuit breaker B16 72
Max. number of luminaires per miniature circuit breaker C10 60
Max. number of luminaires per miniature circuit breaker C16 96
Power factor λ 0.50
Total harmonic distortion < 20 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 420 lm
Luminous efficacy 70 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °

Dimensions & Weight

Diameter 118.00 mm
Height 30.00 mm
Product weight 158.00 g

Materials & Colors

Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+50 °C
Temperature range at storage -30…+70 °C
Type of connection Screwless terminal, 2-Pole
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 105.00 mm
Mounting depth 50,0 mm
Replaceable light source (EPREL) Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Lifespan L80/B10 at 25 °C 20000 h 1)
Lifespan L90/B10 at 25 °C 12000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 180 mA
ECG - Output ripple current < 6.5 %

Certificates & Standards

Standards CE, CB, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

Additional product data

Number of illuminants Not relevant

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Very slim housing
  • Low installation depth
  • High luminous efficacy
  • Energy savings up to 60 % (compared to luminaires that use CFL lamps)
  • Very homogenous light
  • Functional design
  • Easy installation with fast connection
  • Simple installation thanks to integrated driver
Areas of application
  • Direct replacement for luminaires with compact fluorescent lamps
  • General illumination
  • Public areas
  • Stairways
  • Corridors
  • Foyers
  • Shops
Product features
  • Small visible bezel
  • Connector box with push wire terminal for tool-free connection
  • Light guide made of non-yellowing PMMA for long lifetime
Equipment / Accessories
  • Surface mounting frames available as accessories
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075078970 Folding box
1		 45 mm x 145 mm x 145 mm 192.00 g 0.95 dm³
4058075078987 Shipping box
6		 290 mm x 155 mm x 165 mm 1317.00 g 7.42 dm³
Product image Product name EAN
DL SLIM FRAME DN 105 WT 4058075079151

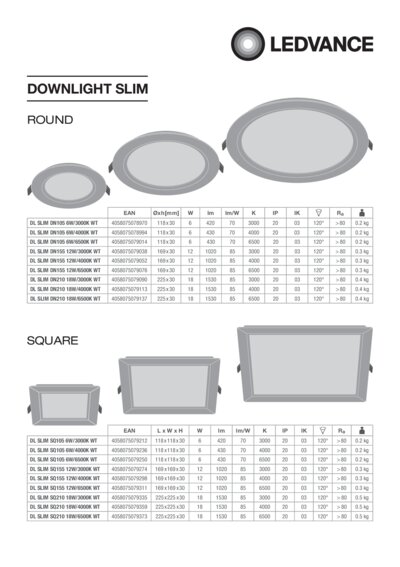

Extended installation guide
User Instruction Downl ight LED Slim PDF (3.43 MB)

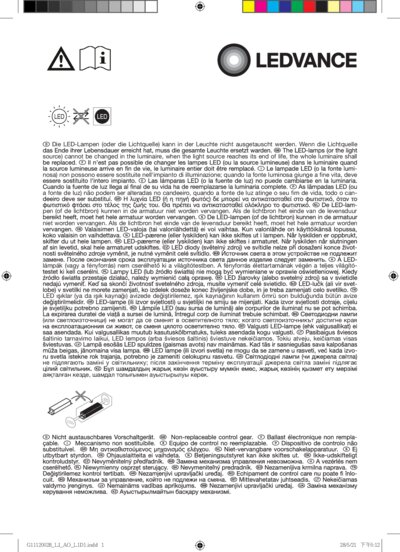

On-Pack-Info
Legal Insert Downlight Slim PDF (4.64 MB)

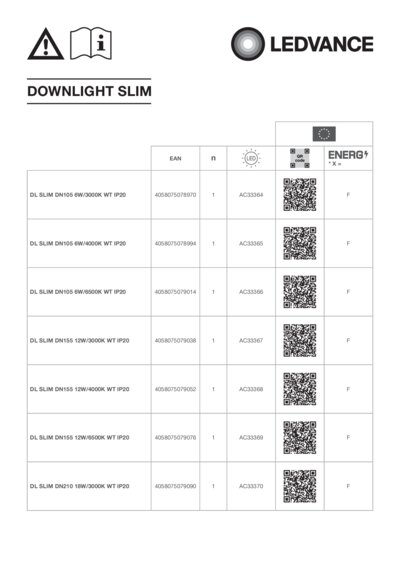

Legal information
LSI DL SLIM PDF (2.73 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

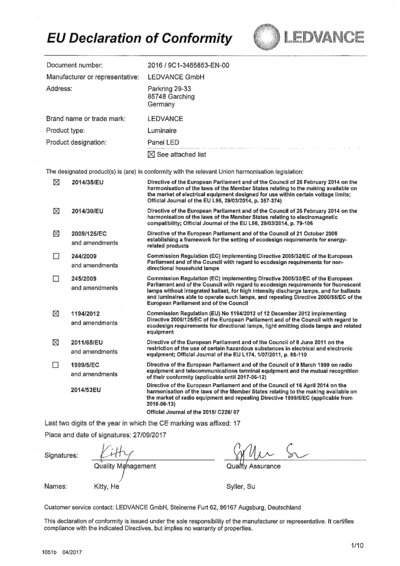

Declarations of conformity
CE Certificate downlig ht Slim PDF (924.61 KB)

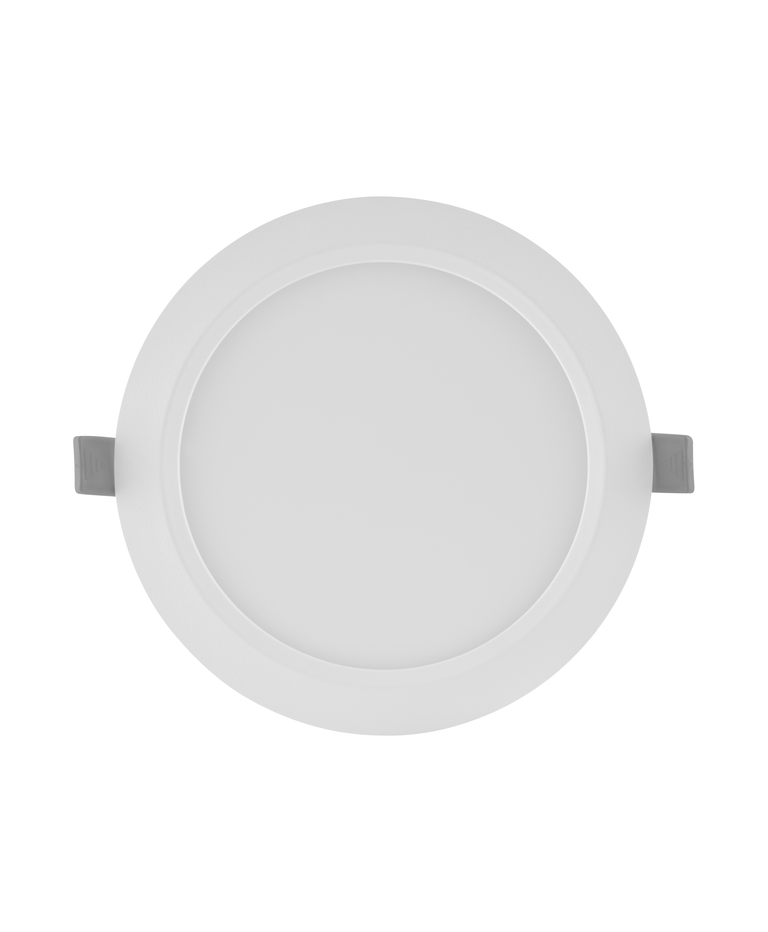

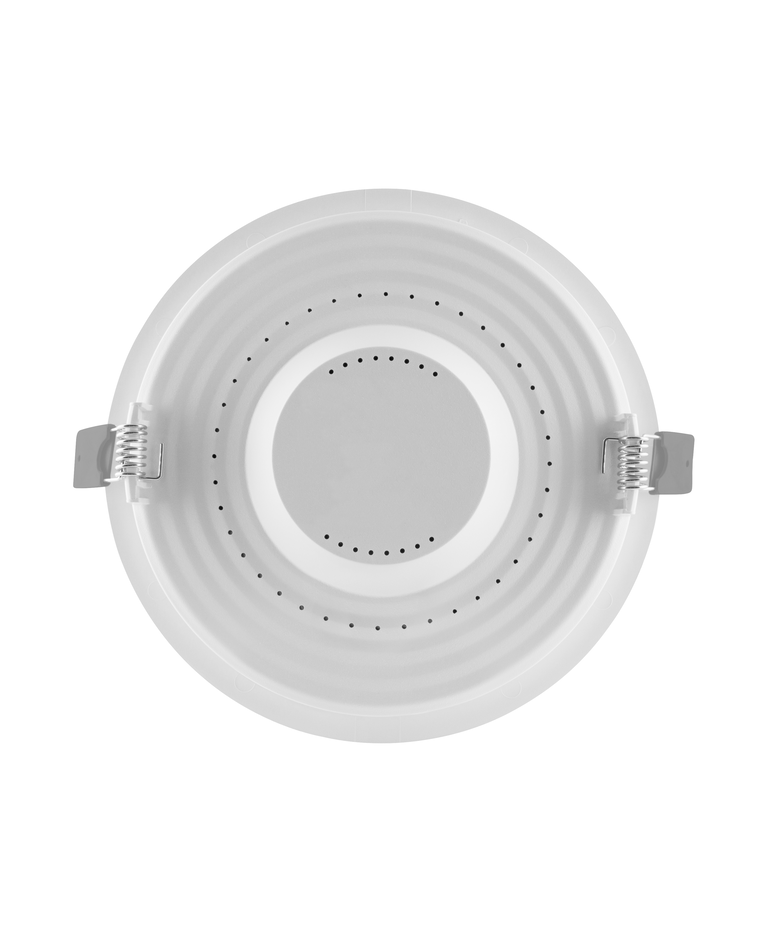

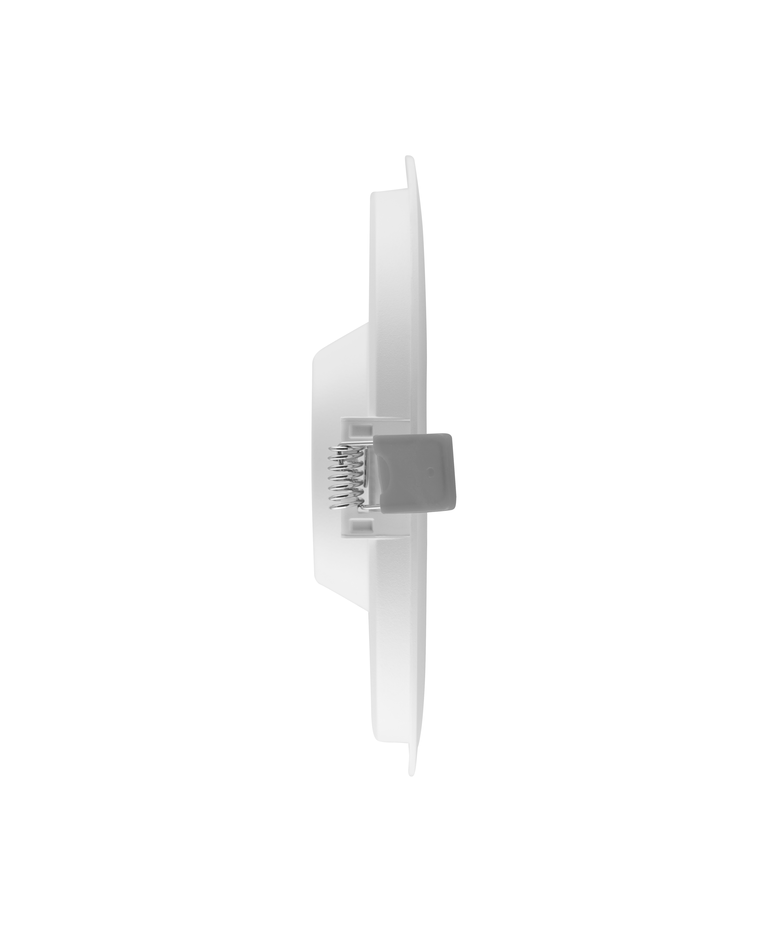

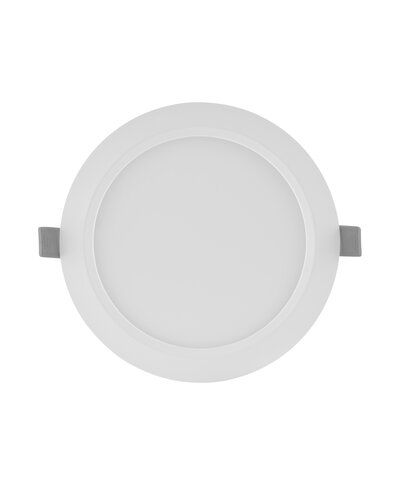

Product Image, Upright, White BG
DL Slim DN105 6W TIF (43.04 MB)

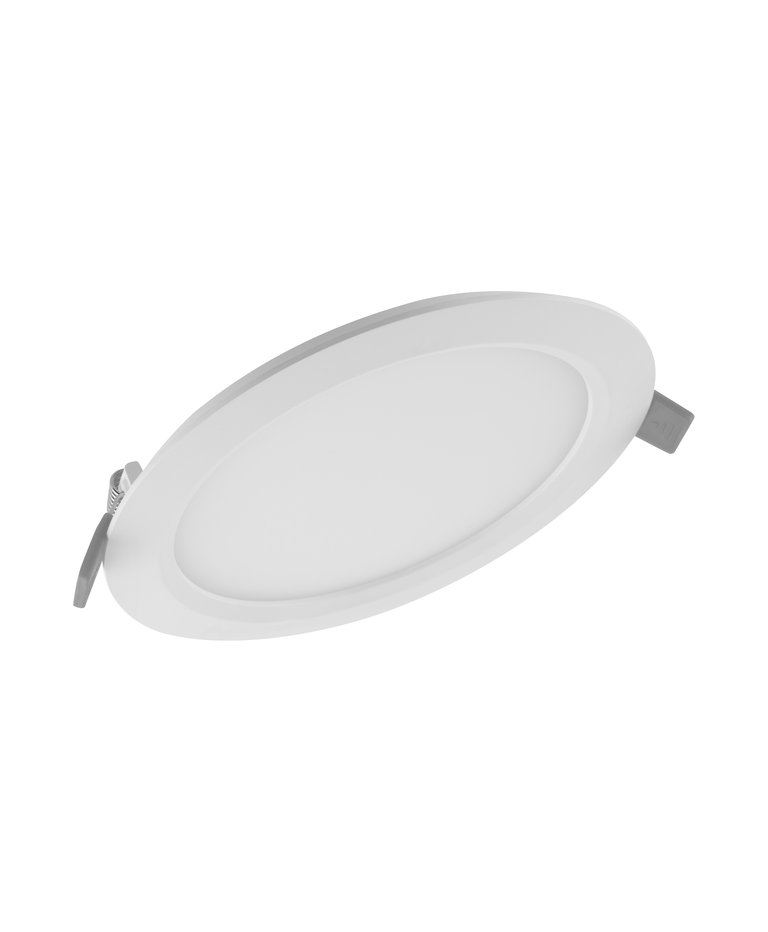

Product Image, Spacial, White BG
DL Slim DN105 6W TIF (58.12 MB)
Product line drawing with letters
DL Slim DN105 6W SVG (11.4 KB)
Product line drawing with numbers
DL Slim DN105 6W SVG (11.44 KB)

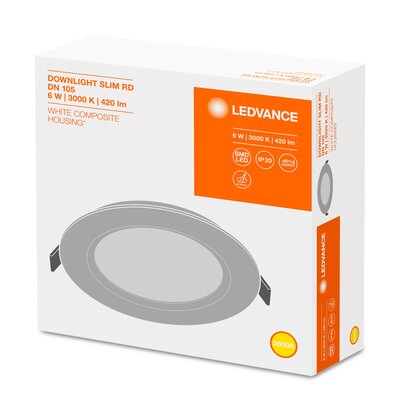

Packaging image, spacial
Downlight Slim DN105 6 W 830 MiCh Side TIF (16.38 MB)
Catalog info 1
Downlight Slim SVG (136.29 KB)
Catalog info 2
Downlight Slim SVG (64.35 KB)
Catalog info 6
Downlight Slim SVG (187.68 KB)
IES file (IES)
DL SLIM DN105 6W 3000K WT IP20 IES (6.58 KB)
LDT file (Eulumdat)
DL SLIM DN105 6W 3000K WT IP20 LDT (7.33 KB)
ULD file (DIALux)
DOWNLIGHTSLIMROUND1056 W3000KWT ULD (605.18 KB)
ROLF file (RELUX)
DL SLIM DN105 6W-3000 K ROLF (205.81 KB)
UGR file (UGR table)
4058075052222 DL SLIM DN105 6W 3000K WT IP20 PNG (59.13 KB)
LDC typ cone
4058075052222 DL SLIM DN105 6W 3000K WT IP20 SVG (82.28 KB)
LDC typ polar
4058075052222 DL SLIM DN105 6W 3000K WT IP20 SVG (244.63 KB)
BIM_Revit_3D
Downlight Slim Round ZIP (1.83 MB)
CAD_STEP_3D
DL SLIM DN 105 STEP (832.42 KB)
Tender documents
DOWNLIGHT SLIM ROUND 1 05 6 W 3000 K WT-EN TXT (1.36 KB)

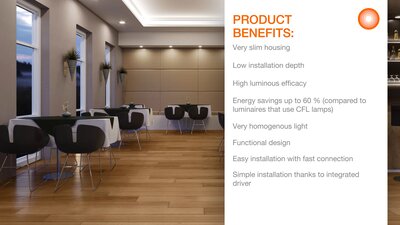

Video
LEDVANCE Downlight Sli m EN MP4 (72.38 MB)

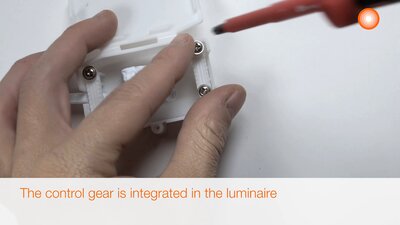

Video
LEDVANCE LUM Installat ion Video EN Downlight Slim MP4 (160.01 MB)
EAN SEG number STK number EFO number ELDAS number
4058075078970 7470511 4295631 3206950 941400120
