LED PERFORMANCE SURFACE MOUNT DOWNLIGHT

LED PERFORMANCE SURFACE MOUNT DOWNLIGHT

Choose your product version

9 W 15 ° 3000 K White

9 W 36 ° 3000 K White

9 W 24 ° 3000 K Black

9 W 24 ° 3000 K White

9 W 15 ° 3000 K Black

9 W 36 ° 3000 K Black

9 W 15 ° 4000 K Black

9 W 36 ° 4000 K Black

9 W 15 ° 4000 K White

9 W 24 ° 4000 K White

9 W 24 ° 4000 K Black

9 W 36 ° 4000 K White

16 W 36 ° 3000 K Black

16 W 15 ° 3000 K Black

16 W 24 ° 3000 K Black

16 W 36 ° 3000 K White

16 W 15 ° 3000 K White

16 W 24 ° 3000 K White

16 W 36 ° 4000 K White

16 W 15 ° 4000 K White

16 W 15 ° 4000 K Black

16 W 24 ° 4000 K White

16 W 36 ° 4000 K Black

16 W 24 ° 4000 K Black

20 W 36 ° 3000 K White

20 W 24 ° 3000 K White

20 W 15 ° 3000 K Black

20 W 24 ° 3000 K Black

20 W 15 ° 3000 K White

20 W 36 ° 3000 K Black

20 W 15 ° 4000 K White

20 W 15 ° 4000 K Black

20 W 24 ° 4000 K Black

20 W 36 ° 4000 K Black

20 W 24 ° 4000 K White

20 W 36 ° 4000 K White

30 W 15 ° 3000 K White

30 W 24 ° 3000 K White

30 W 15 ° 3000 K Black

30 W 36 ° 3000 K Black

30 W 60 ° 3000 K Black

30 W 60 ° 3000 K White

30 W 24 ° 3000 K Black

30 W 36 ° 3000 K White

30 W 24 ° 4000 K White

30 W 15 ° 4000 K Black

30 W 60 ° 4000 K White

30 W 36 ° 4000 K Black

30 W 60 ° 4000 K Black

30 W 36 ° 4000 K White

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LED Performance Surface Mount Downlight 9 W 15 ° 3000 K White 9.00 W 30000 15 ° 670 lm No
LED Performance Surface Mount Downlight 9 W 36 ° 3000 K White 9.00 W 30000 36 ° 670 lm No
LED Performance Surface Mount Downlight 9 W 24 ° 3000 K Black 9.00 W 30000 24 ° 670 lm No
LED Performance Surface Mount Downlight 9 W 24 ° 3000 K White 9.00 W 30000 24 ° 670 lm No
LED Performance Surface Mount Downlight 9 W 15 ° 3000 K Black 9.00 W 30000 15 ° 670 lm No
LED Performance Surface Mount Downlight 9 W 36 ° 3000 K Black 9.00 W 30000 36 ° 670 lm No
LED Performance Surface Mount Downlight 9 W 15 ° 4000 K Black 9.00 W 30000 15 ° 680 lm No
LED Performance Surface Mount Downlight 9 W 36 ° 4000 K Black 9.00 W 30000 36 ° 680 lm No
LED Performance Surface Mount Downlight 9 W 15 ° 4000 K White 9.00 W 30000 15 ° 680 lm No
LED Performance Surface Mount Downlight 9 W 24 ° 4000 K White 9.00 W 30000 24 ° 680 lm No
LED Performance Surface Mount Downlight 9 W 24 ° 4000 K Black 9.00 W 30000 24 ° 680 lm No
LED Performance Surface Mount Downlight 9 W 36 ° 4000 K White 9.00 W 30000 36 ° 680 lm No
LED Performance Surface Mount Downlight 16 W 36 ° 3000 K Black 16.00 W 30000 36 ° 1200 lm No
LED Performance Surface Mount Downlight 16 W 15 ° 3000 K Black 16.00 W 30000 15 ° 1200 lm No
LED Performance Surface Mount Downlight 16 W 24 ° 3000 K Black 16.00 W 30000 24 ° 1200 lm No
LED Performance Surface Mount Downlight 16 W 36 ° 3000 K White 16.00 W 30000 36 ° 1200 lm No
LED Performance Surface Mount Downlight 16 W 15 ° 3000 K White 16.00 W 30000 15 ° 1200 lm No
LED Performance Surface Mount Downlight 16 W 24 ° 3000 K White 16.00 W 30000 24 ° 1200 lm No
LED Performance Surface Mount Downlight 16 W 36 ° 4000 K White 16.00 W 30000 36 ° 1250 lm No
LED Performance Surface Mount Downlight 16 W 15 ° 4000 K White 16.00 W 30000 15 ° 1250 lm No
LED Performance Surface Mount Downlight 16 W 15 ° 4000 K Black 16.00 W 30000 15 ° 1250 lm No
LED Performance Surface Mount Downlight 16 W 24 ° 4000 K White 16.00 W 30000 24 ° 1250 lm No
LED Performance Surface Mount Downlight 16 W 36 ° 4000 K Black 16.00 W 30000 36 ° 1250 lm No
LED Performance Surface Mount Downlight 16 W 24 ° 4000 K Black 16.00 W 30000 24 ° 1250 lm No
LED Performance Surface Mount Downlight 20 W 36 ° 3000 K White 20.00 W 30000 36 ° 1400 lm No
LED Performance Surface Mount Downlight 20 W 24 ° 3000 K White 20.00 W 30000 24 ° 1400 lm No
LED Performance Surface Mount Downlight 20 W 15 ° 3000 K Black 20.00 W 30000 15 ° 1400 lm No
LED Performance Surface Mount Downlight 20 W 24 ° 3000 K Black 20.00 W 30000 24 ° 1400 lm No
LED Performance Surface Mount Downlight 20 W 15 ° 3000 K White 20.00 W 30000 15 ° 1400 lm No
LED Performance Surface Mount Downlight 20 W 36 ° 3000 K Black 20.00 W 30000 36 ° 1400 lm No
LED Performance Surface Mount Downlight 20 W 15 ° 4000 K White 20.00 W 30000 15 ° 1460 lm No
LED Performance Surface Mount Downlight 20 W 15 ° 4000 K Black 20.00 W 30000 15 ° 1460 lm No
LED Performance Surface Mount Downlight 20 W 24 ° 4000 K Black 20.00 W 30000 24 ° 1460 lm No
LED Performance Surface Mount Downlight 20 W 36 ° 4000 K Black 20.00 W 30000 36 ° 1460 lm No
LED Performance Surface Mount Downlight 20 W 24 ° 4000 K White 20.00 W 30000 24 ° 1460 lm No
LED Performance Surface Mount Downlight 20 W 36 ° 4000 K White 20.00 W 30000 36 ° 1460 lm No
LED Performance Surface Mount Downlight 30 W 15 ° 3000 K White 30.00 W 30000 15 ° 2340 lm No
LED Performance Surface Mount Downlight 30 W 24 ° 3000 K White 30.00 W 30000 24 ° 2340 lm No
LED Performance Surface Mount Downlight 30 W 15 ° 3000 K Black 30.00 W 30000 15 ° 2340 lm No
LED Performance Surface Mount Downlight 30 W 36 ° 3000 K Black 30.00 W 30000 36 ° 2340 lm No
LED Performance Surface Mount Downlight 30 W 60 ° 3000 K Black 30.00 W 30000 60 ° 2340 lm No
LED Performance Surface Mount Downlight 30 W 60 ° 3000 K White 30.00 W 30000 60 ° 2340 lm No
LED Performance Surface Mount Downlight 30 W 24 ° 3000 K Black 30.00 W 30000 24 ° 2340 lm No
LED Performance Surface Mount Downlight 30 W 36 ° 3000 K White 30.00 W 30000 36 ° 2340 lm No
LED Performance Surface Mount Downlight 30 W 24 ° 4000 K White 30.00 W 30000 24 ° 2460 lm No
LED Performance Surface Mount Downlight 30 W 15 ° 4000 K Black 30.00 W 30000 15 ° 2460 lm No
LED Performance Surface Mount Downlight 30 W 60 ° 4000 K White 30.00 W 30000 60 ° 2460 lm No
LED Performance Surface Mount Downlight 30 W 36 ° 4000 K Black 30.00 W 30000 36 ° 2460 lm No
LED Performance Surface Mount Downlight 30 W 60 ° 4000 K Black 30.00 W 30000 60 ° 2460 lm No
LED Performance Surface Mount Downlight 30 W 36 ° 4000 K White 30.00 W 30000 36 ° 2460 lm No


LED Performance Surface Mount Downlight 9 W 36 ° 3000 K Black

Product benefits
  • High power COB LED provides high lumen output in compact housing
  • Low flicker light thanks to special electronic control gear
  • Good color rendering for the best product presentation
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 9.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ 0.90
Total harmonic distortion < 20 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 670 lm
Luminous efficacy 74 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra 90
Standard deviation of color matching ≤5 sdcm
Beam angle 36 °

Dimensions & Weight

Diameter 100.00 mm
Height 100.00 mm
Product weight 445.00 g
Cable length 110 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+70 °C
Type of connection Cable, 2-pole
Type of protection IP20
Dimmable No
Mounting type Surface
Mounting location Ceiling
Application environment Indoor
LED module replaceable Not replaceable

Lifespan

Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 30000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Product benefits
  • High power COB LED provides high lumen output in compact housing
  • Low flicker light thanks to special electronic control gear
  • Good color rendering for the best product presentation
Areas of application
  • Shops, supermarkets
  • Public areas
  • Corridors
Product features
  • Available in two housing colors
  • Available with color temperature: 3,000 K, 4,000 K
  • Color rendering index Ra: > 90
  • Power factor: > 0.9
  • Initial color consistency: < 5 SDCM
  • Lifetime (L70/B50): up to 30,000 h
  • Type of protection: IP20
  • CCC marked, CB test certificate
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075333338 Folding box
1		 106 mm x 106 mm x 105 mm 493.00 g 1.18 dm³
4058075333345 Shipping box
24		 445 mm x 340 mm x 230 mm 12642.00 g 34.80 dm³

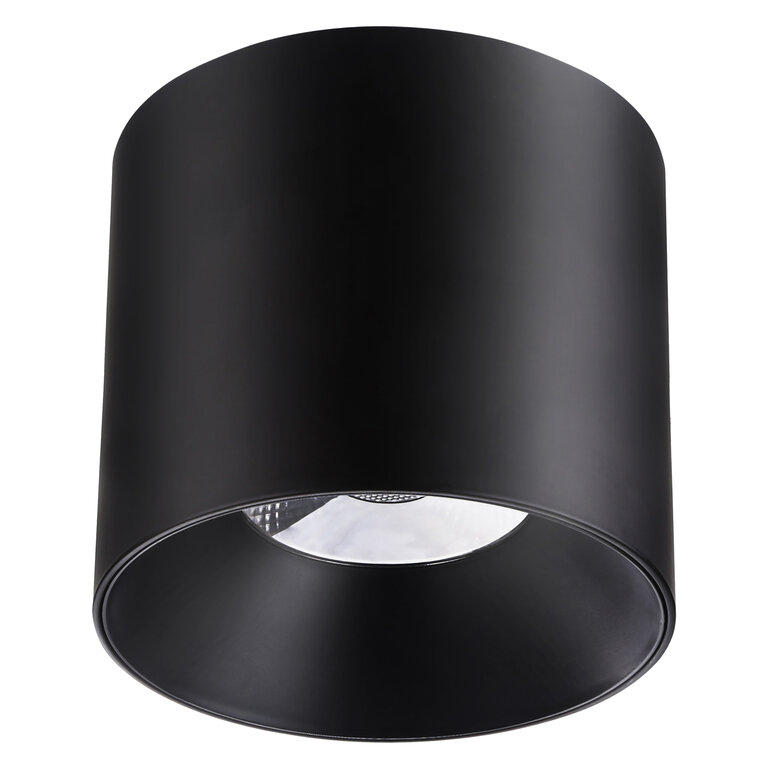

Product Image, Upright, White BG
LDPFM surface downligh t black JPG (1.77 MB)
Product line drawing with numbers
surface downlight 9W SVG (85.63 KB)
IES file (IES)
LDPFM SURF DL 9W/930 3 6D IES (64.25 KB)
