Professional

FLOODLIGHT FLEX DALI RADIAL SYMMETRIC 60

Choose your product version

NEW

130W 830 R60 WAL

NEW

130W 840 R60 WAL

NEW

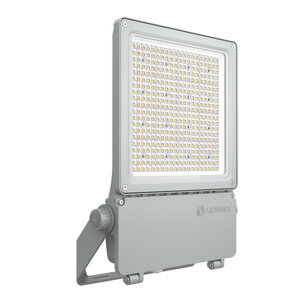

180W 830 R60 WAL

NEW

180W 840 R60 WAL

NEW

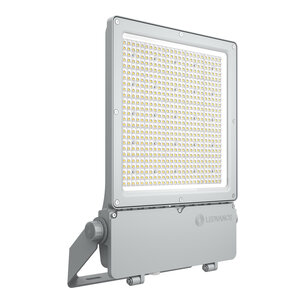

250W 830 R60 WAL

NEW

250W 840 R60 WAL

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
FL FLEX DA P 130W 830 R60 WAL 130.00 W 100000 60 ° 19900 lm Yes
FL FLEX DA P 130W 840 R60 WAL 130.00 W 100000 60 ° 20800 lm Yes
FL FLEX DA P 180W 830 R60 WAL 180.00 W 100000 60 ° 27000 lm Yes
FL FLEX DA P 180W 840 R60 WAL 180.00 W 100000 60 ° 28000 lm Yes
FL FLEX DA P 250W 830 R60 WAL 250.00 W 100000 60 ° 37500 lm Yes
FL FLEX DA P 250W 840 R60 WAL 250.00 W 100000 60 ° 39500 lm Yes
NEW


FL FLEX DA P 130W 830 R60 WAL

Product benefits
  • Corrosion resistance C5: tested in environments with high salinity
  • Serviceable luminaire: LED driver can be replaced
  • Flexible application due to a range of different lumen packages and beam angles
  • 3 cable entries for flexible use and easy connection between luminaires
  • Integrated breather for preventing condensation inside the luminaire
  • Energy savings of up to 91 % compared to halogen lamp floodlights
  • Energy savings of up to 51 % compared to luminaires that use conventional discharge lamps
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Intelligent design of the water drain to prevent standing water
  • Simple angle adjustment by locking every 2.5°
  • Clear angular degree indication
  • Key hole to ensure ease of installation
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 130.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 586.000 mA
Inrush current 125 A
Inrush current time Th50 122 µs
Max. number of luminaires per miniature circuit breaker B16 9
Max. number of luminaires per miniature circuit breaker C10 8
Max. number of luminaires per miniature circuit breaker C16 14
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Surge capability (L-N) 6 kV
Surge capability (L/N-Ground) 10 kV
Operating mode Integrated LED driver

Photometrical data

Luminous flux 19900 lm
Luminous efficacy 153 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching 5 sdcm
Luminous intensity 20895 cd
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 60 °

Dimensions & Weight

Length 492.00 mm
Height 68.00 mm
Width 361.00 mm
Product weight 6000.00 g

Materials & Colors

Product color White aluminum
Housing color White aluminum
Body material Aluminum
Cover material Glass
Light emitting surface material Glass
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -30…+80 °C
Type of connection Screwless terminal
Type of protection IP66
Protection class IK (shock resistance) IK08
Corrosion resistance class acc. to EN 12944 C5
Dimmable Yes
Type of dimming DALI D4i
Mounting type Surface
Mounting location Wall, Pole, Floor, Ceiling
Application environment Outdoor
Adjustable Yes
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 120000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 4200 mA
ECG - Output ripple current < 10 %

Certificates & Standards

Standards CE, CB, ENEC, UKCA
Luminaire with limited surface temperature, "D sign" Yes
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from December 2024

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), Alkanes / Chloroalkanes C10-13 (85535-84-8)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Corrosion resistance C5: tested in environments with high salinity
  • Serviceable luminaire: LED driver can be replaced
  • Flexible application due to a range of different lumen packages and beam angles
  • 3 cable entries for flexible use and easy connection between luminaires
  • Integrated breather for preventing condensation inside the luminaire
  • Energy savings of up to 91 % compared to halogen lamp floodlights
  • Energy savings of up to 51 % compared to luminaires that use conventional discharge lamps
  • No upper light output ratio (ULOR 0%) when mounted at 0° tilt
  • Intelligent design of the water drain to prevent standing water
  • Simple angle adjustment by locking every 2.5°
  • Clear angular degree indication
  • Key hole to ensure ease of installation
Areas of application
  • Coastal areas, like ports
  • General outdoor area lighting
  • Parking
  • Suitable for indoor and outdoor sports facilities
  • Architectural lighting
  • Industry
  • Direct replacement for luminaires using HID lamps
Product features
  • Corrosion resistance C5 based on 1,500 hours salt mist spray test
  • High luminous efficacy: up to 160 lm/W
  • DALI D4i drivers for smart city applications
  • Daisy chaining possible
  • High surge protection: up to 10 kV (L/N-PE), 6 kV (L-N)
  • High lifetime (L70/B50): up to 120,000 h (at 25 °C)
  • Lumen packages up to 70000 lm
Equipment / Accessories
  • Delivery without cables
  • Second cable gland included
  • 2 rubber inserts for 6,5 - 7,5 mm cables included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854373343 Shipping box
1		 572 mm x 402 mm x 119 mm 7303.00 g 27.36 dm³

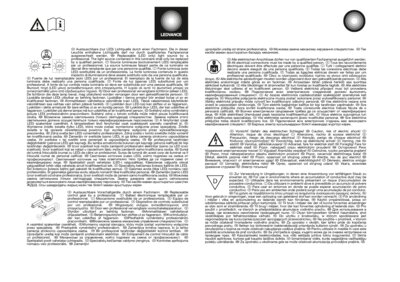

User instruction / safety instructions
FL FLEX P DALI PDF (7.9 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)
Legal information
LSI FL FLEX DALI PDF (2.4 MB)
Legal information
Legal insert G11231557 PDF (878.51 KB)
Declarations of conformity
CE FL FLEX P PDF (213.08 KB)
Certificates
ENEC FL FLEX P PDF (376.93 KB)

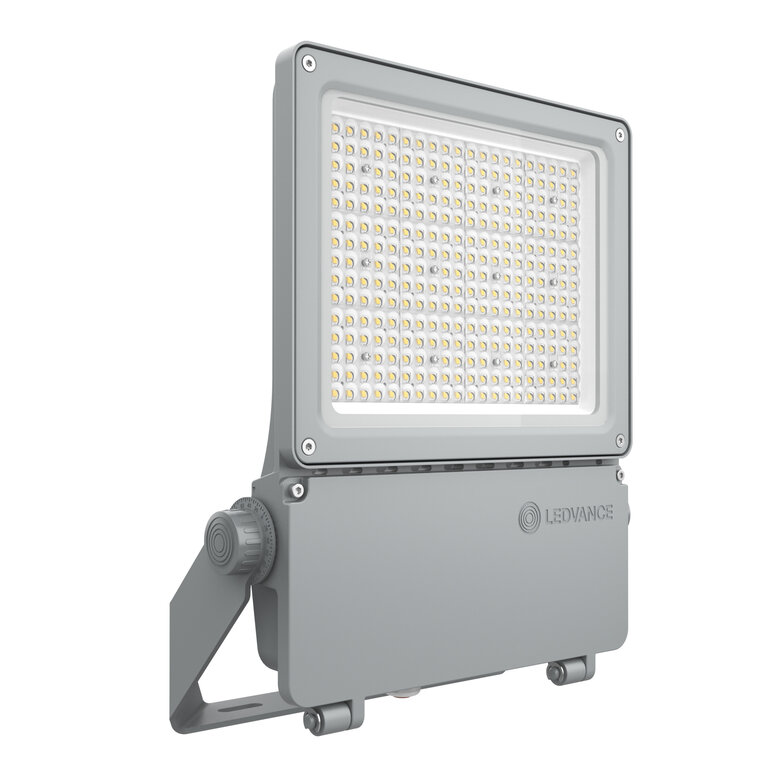

Product image: white background, diagonal
FL FLEX P 130W ML WAL JPG (1.39 MB)

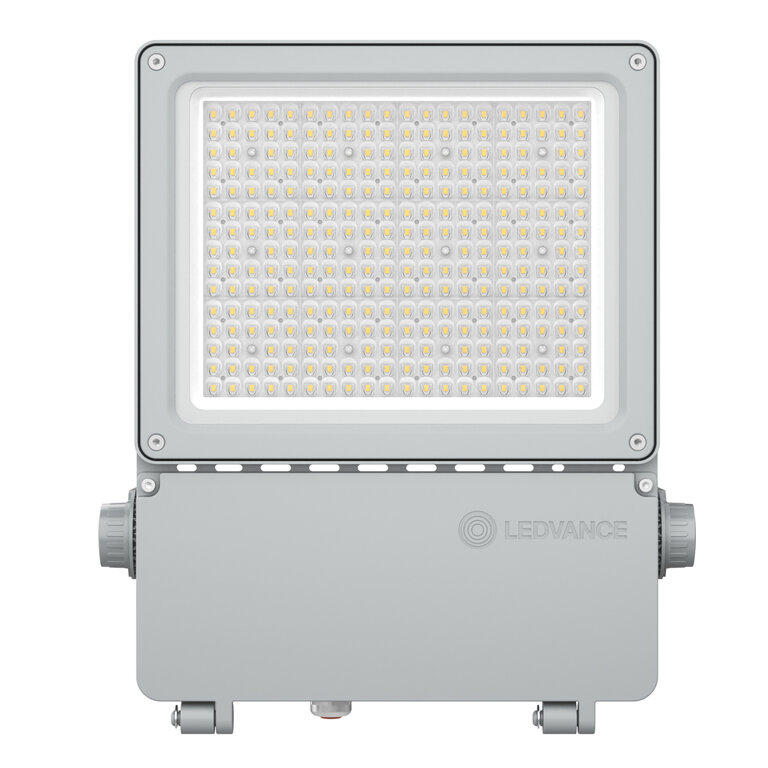

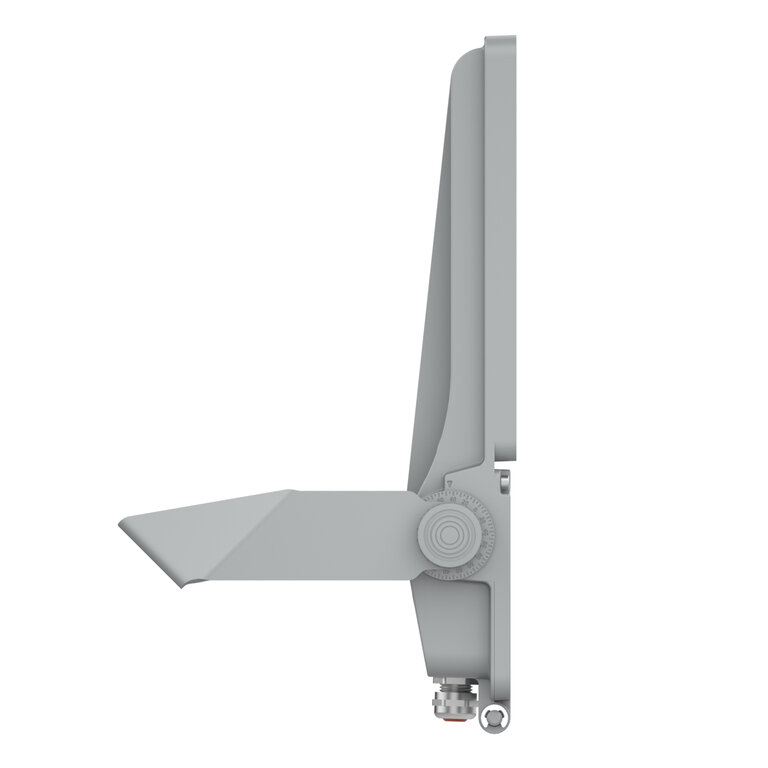

Product image: white background, horizontal
FL FLEX P 130W ML WAL JPG (1.03 MB)
Product line drawing with letters
FL FLEX P WAL SVG (53.05 KB)
Product line drawing with numbers
FL FLEX P WAL SVG (59.41 KB)
Product line drawing - technical
FL FLEX P WAL SVG (48.73 KB)

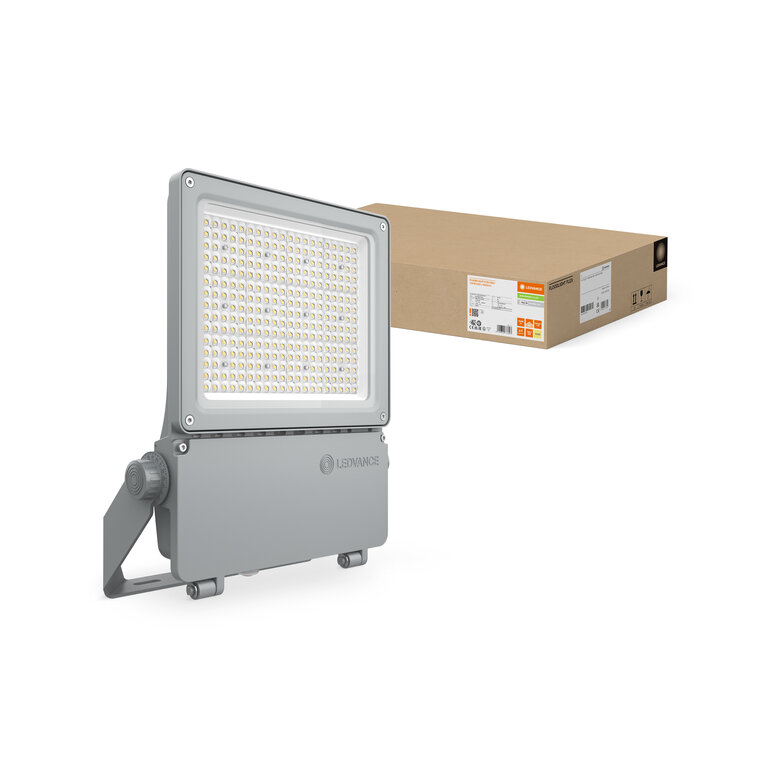

Combo Shot = Product Beauty Shot + Packaging Image
FL FLEX DA P 130W 830 R60 WAL JPG (655.92 KB)
Packaging image, frontal
FL FLEX DA P 130W 830 R60 WAL JPG (505.49 KB)
Packaging image, spacial
FL FLEX DA P 130W 830 R60 WAL JPG (601.41 KB)
IES file (IES)
FL FLEX DA P 130W 830 R60 WAL LEDV IES (3.26 KB)
LDT file (Eulumdat)
FL FLEX DA P 130W 830 R60 WAL LEDV LDT (2.94 KB)
ULD file (DIALux)
FL FLEX DA P 130W 830 R60 WAL ULD (553.98 KB)
Light distribution curve type cone
FL FLEX DA/P 130W 830 R60 WAL SVG (12.37 KB)
Light distribution curve type polar
FL FLEX DA P 130W 830 R60 WAL LEDV SVG (17.79 KB)
BIM Revit 3D
Floodlight Flex ZIP (12.67 MB)
BIM Step 3D
FL FLEX 130W STEP (8.54 MB)
Tender documents
FLOODLIGHT FLEX DALI R ADIAL SYMMETRIC 60 130 W 830 R60 WAL-en TXT (2.86 KB)
Application pictures
Castle illumination 22 00K Floodlight Flex JPG (2.02 MB)
Application pictures Getty
Northern harbour Flood light Flex JPG (6.45 MB)
Application pictures Getty
Southern container por t Floodlight Flex JPG (15.45 MB)
Application pictures Getty
Key Visual Floodlight Flex Launch JPG (10.99 MB)
Application pictures Getty
Parking area Floodligh t Flex JPG (4.79 MB)
Video
Floodlight Flex Video EN MP4 (115.97 MB)
Video
Floodlight Flex Video NO MP4 (45.45 MB)
EAN SEG number STK number EFO number
4099854373343 7770479 4532038 3228650
