Choose your product version
| Product description | Nominal wattage | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|

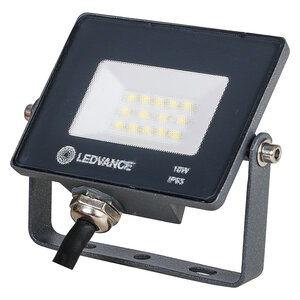

| LED ECO LITE FLOODLIGHT 10 W/3000 K | 10.00 W | 110 ° | 800 lm | No |
| LED ECO LITE FLOODLIGHT 10 W/6500 K | 10.00 W | 110 ° | 800 lm | No |

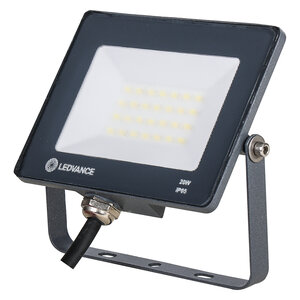

| LED ECO LITE FLOODLIGHT 20 W/3000 K | 20.00 W | 110 ° | 1600 lm | No |
| LED ECO LITE FLOODLIGHT 20 W/6500 K | 20.00 W | 110 ° | 1600 lm | No |

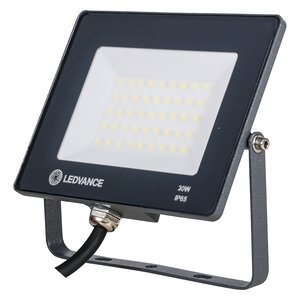

| LED ECO LITE FLOODLIGHT 30 W/3000 K | 30.00 W | 110 ° | 2400 lm | No |
| LED ECO LITE FLOODLIGHT 30 W/6500 K | 30.00 W | 110 ° | 2400 lm | No |

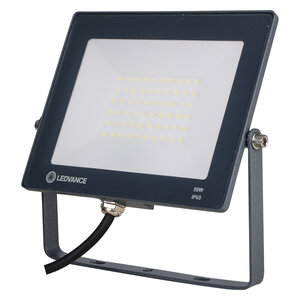

| LED ECO LITE FLOODLIGHT 50 W/3000 K | 50.00 W | 110 ° | 4000 lm | No |
| LED ECO LITE FLOODLIGHT 50 W/6500 K | 50.00 W | 110 ° | 4000 lm | No |

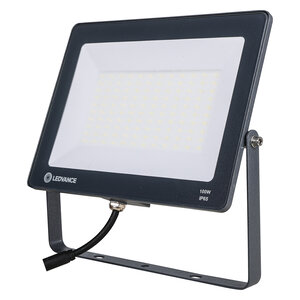

| LED ECO LITE FLOODLIGHT 100 W/3000 K | 100.00 W | 110 ° | 8000 lm | No |
| LED ECO LITE FLOODLIGHT 100 W/6500 K | 100.00 W | 110 ° | 8000 lm | No |

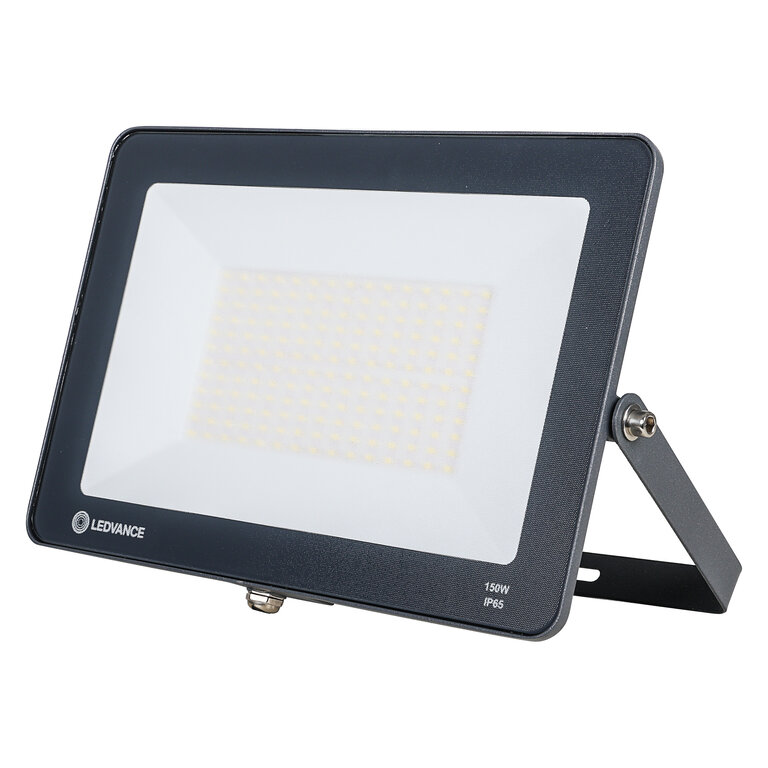

| LED ECO LITE FLOODLIGHT 150 W/3000 K | 150.00 W | 110 ° | 12000 lm | No |
| LED ECO LITE FLOODLIGHT 150 W/6500 K | 150.00 W | 110 ° | 12000 lm | No |

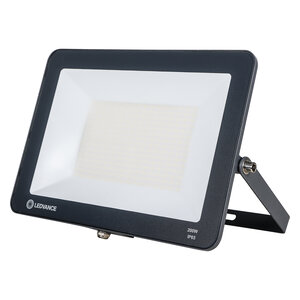

| LED ECO LITE FLOODLIGHT 200 W/3000 K | 200.00 W | 110 ° | 16000 lm | No |
| LED ECO LITE FLOODLIGHT 200 W/6500 K | 200.00 W | 110 ° | 16000 lm | No |
| Nominal wattage | 150.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 0.61 A |
| Inrush current | 2.1 A |
| Inrush current time Th50 | 71.2 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 20 |
| Max. number of luminaires per miniature circuit breaker C16 | 20 |
| Power factor λ | 0.90 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | I |
| Luminous flux | 12000 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Luminous intensity | 4300 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |

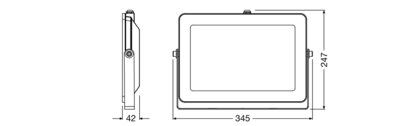

| Length | 344.00 mm |
| Height | 42.00 mm |
| Width | 255.00 mm |
| Product weight | 2240.00 g |
| Cable length | 0.3 m |
| Product color | Gray |
| Housing color | Gray |
| Body material | Aluminum |
| Mercury content | 0.0 mg |
| Ambient temperature range | -30…+45 °C |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| LED module replaceable | Not replaceable |
| With light source | Yes |
| Lifespan L70/B50 at 25 °C | 20000 h 1) |
| Lifespan L80/B10 at 25 °C | 20000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CB, ROHS, EMC |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075729544 | Folding box 1 |
352 mm x 48 mm x 279 mm | 2375.00 g | 4.71 dm³ |
| 4058075729551 | Shipping box 5 |
377 mm x 297 mm x 264 mm | 12484.00 g | 29.56 dm³ |
