Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Dimmable |
|---|---|---|---|---|

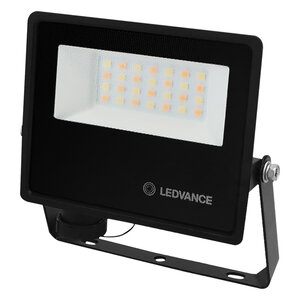

| LDVAL FL 10W TRI CCT | 10.00 W | 30000 | 100 ° | No |

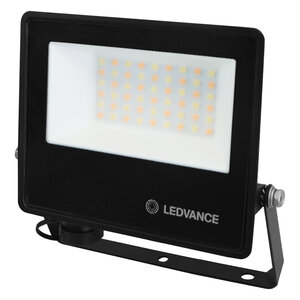

| LDVAL FL 20W TRI CCT | 20.00 W | 30000 | 100 ° | No |

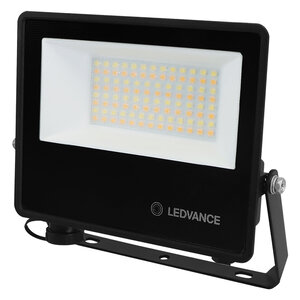

| LDVAL FL 30W TRI CCT | 30.00 W | 30000 | 100 ° | No |

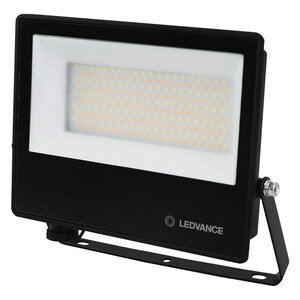

| LDVAL FL 50W TRI CCT | 50.00 W | 30000 | 110 ° | No |

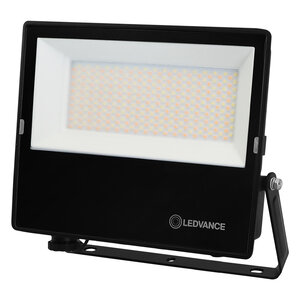

| LDVAL FL 100W TRI CCT | 100.00 W | 30000 | 110 ° | No |

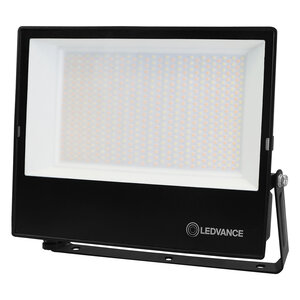

| LDVAL FL 150W TRI CCT | 150.00 W | 30000 | 110 ° | No |

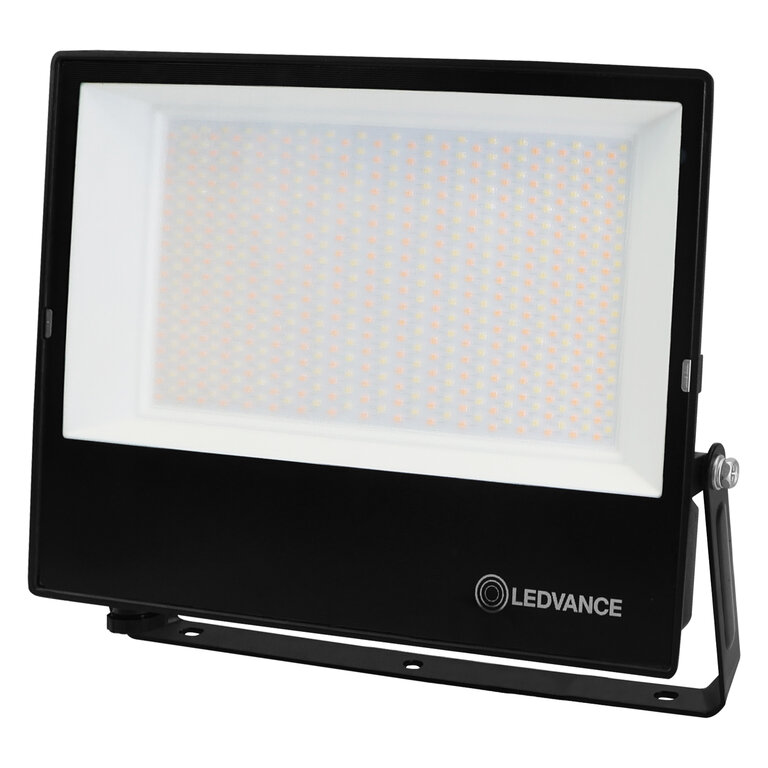

| LDVAL FL 200W TRI CCT | 200.00 W | 30000 | 110 ° | No |
| Nominal wattage | 200.00 W |
| Nominal voltage | 100…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Surge capability (L-N) | 2 kV |
| Surge capability (L/N-Ground) | 2 kV |
| Luminous efficacy | 130 lm/W |
| Color temperature | 3000…4000…6500 K |
| Color rendering index Ra | ≥80 |
| Luminous intensity | 10000 cd |
| Low flicker | No |
| Beam angle | 110 ° |
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 200W | 22000lm | 3000K | |
| 200W | 26000lm | 4000K | |
| 200W | 24000lm | 6500K |
| Length | 394.00 mm |
| Height | 44.00 mm |
| Width | 326.00 mm |
| Product weight | 2670.00 g |
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…80 °C |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Outdoor |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Number of switching cycles | 30000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Standards | CB, ROHS, EMC |
| Replaceable light source (EPREL) | Not replaceable |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854505089 | Folding box 1 |
400 mm x 49 mm x 332 mm | 2830.00 g | 6.51 dm³ |
| 4099854505096 | Shipping box 2 |
421 mm x 116 mm x 363 mm | 5980.00 g | 17.73 dm³ |
