Professional

LED PERFORMANCE HIGHPOWER FLOODLIGHT

Choose your product version

OVERVIEW

Product description Nominal wattage Beam angle Luminous flux Dimmable
LED PERFORMANCE HP FLOOD 400W 840 55D 400.00 W 55 ° 48000 lm No
LED PERFORMANCE HP FLOOD 400W 840 90D 400.00 W 90 ° 48000 lm No
FLOODLIGHT LED LDPFM FL HP400W 400.00 W 40 ° x 85 ° 48000 lm No
FLOODLIGHT LED LDPFM FL HP 400 400.00 W 90 ° 48000 lm No
LED PERFORMANCE HP FLOOD 400W 840 40X85D 400.00 W 40 ° x 85 ° 48000 lm No
FLOODLIGHT LED LDPFM FL HP 400 400.00 W 30 ° 48000 lm No
LED PERFORMANCE HP FLOOD 400W 840 30D 400.00 W 30 ° 48000 lm No
FLOODLIGHT LED LDPFM FL HP 400 400.00 W 55 ° 48000 lm No
LED PERFORMANCE HP FLOOD 400W 865 40X85D 400.00 W 40 ° x 85 ° 48000 lm No
FLOODLIGHT LED LDPFM FL HP400W 400.00 W 40 ° x 85 ° 48000 lm No
FLOODLIGHT LED LDPFM FL HP 400 400.00 W 55 ° 48000 lm No
FLOODLIGHT LED LDPFM FL HP 400 400.00 W 30 ° 48000 lm No
LED PERFORMANCE HP FLOOD 400W 865 55D 400.00 W 55 ° 48000 lm No
LED PERFORMANCE HP FLOOD 400W 865 90D 400.00 W 90 ° 48000 lm No
FLOODLIGHT LED LDPFM FL HP 400 400.00 W 90 ° 48000 lm No
LED PERFORMANCE HP FLOOD 400W 865 30D 400.00 W 30 ° 48000 lm No

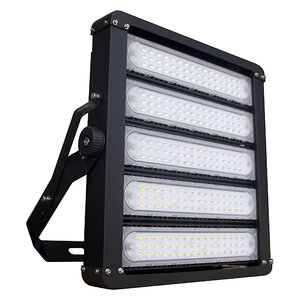

LED PERFORMANCE HP FLOOD 500W 840 40X85D 500.00 W 40 ° x 85 ° 60000 lm No
LED PERFORMANCE HP FLOOD 500W 840 55D 500.00 W 55 ° 60000 lm No
LED PERFORMANCE HP FLOOD 500W 840 90D 500.00 W 90 ° 60000 lm No
LED PERFORMANCE HP FLOOD 500W 840 30D 500.00 W 30 ° 60000 lm No
LED PERFORMANCE HP FLOOD 500W 865 30D 500.00 W 30 ° 60000 lm No
LED PERFORMANCE HP FLOOD 500W 865 90D 500.00 W 90 ° 60000 lm No
LED PERFORMANCE HP FLOOD 500W 865 40X85D 500.00 W 40 ° x 85 ° 60000 lm No
LED PERFORMANCE HP FLOOD 500W 865 55D 500.00 W 55 ° 60000 lm No

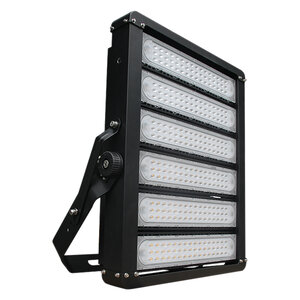

FLOODLIGHT LED LDPFM FL HP600W 600.00 W 40 ° x 85 ° 72000 lm No
LED PERFORMANCE HP FLOOD 600W 840 90D 600.00 W 90 ° 72000 lm No
LED PERFORMANCE HP FLOOD 600W 840 30D 600.00 W 30 ° 72000 lm No
LED PERFORMANCE HP FLOOD 600W 840 40X85D 600.00 W 40 ° x 85 ° 72000 lm No
FLOODLIGHT LED LDPFM FL HP 600 600.00 W 55 ° 72000 lm No
FLOODLIGHT LED LDPFM FL HP 600 600.00 W 90 ° 72000 lm No
LED PERFORMANCE HP FLOOD 600W 840 55D 600.00 W 55 ° 72000 lm No
FLOODLIGHT LED LDPFM FL HP 600 600.00 W 30 ° 72000 lm No
FLOODLIGHT LED LDPFM FL HP600W 600.00 W 40 ° x 85 ° 72000 lm No
FLOODLIGHT LED LDPFM FL HP 600 600.00 W 55 ° 72000 lm No
LED PERFORMANCE HP FLOOD 600W 865 90D 600.00 W 90 ° 72000 lm No
LED PERFORMANCE HP FLOOD 600W 865 30D 600.00 W 30 ° 72000 lm No
FLOODLIGHT LED LDPFM FL HP 600 600.00 W 30 ° 72000 lm No
LED PERFORMANCE HP FLOOD 600W 865 40X85D 600.00 W 40 ° x 85 ° 72000 lm No
FLOODLIGHT LED LDPFM FL HP 600 600.00 W 90 ° 72000 lm No
LED PERFORMANCE HP FLOOD 600W 865 55D 600.00 W 55 ° 72000 lm No

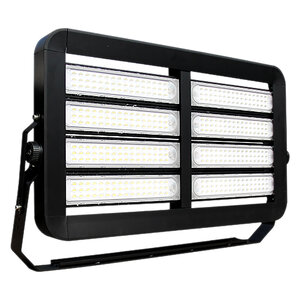

LED PERFORMANCE HP FLOOD 800W 840 55D 800.00 W 55 ° 96000 lm No
LED PERFORMANCE HP FLOOD 800W 840 40X85D 800.00 W 40 ° x 85 ° 96000 lm No
LED PERFORMANCE HP FLOOD 800W 840 90D 800.00 W 90 ° 96000 lm No
LED PERFORMANCE HP FLOOD 800W 840 30D 800.00 W 30 ° 96000 lm No
LED PERFORMANCE HP FLOOD 800W 865 90D 800.00 W 90 ° 96000 lm No
LED PERFORMANCE HP FLOOD 800W 865 30D 800.00 W 30 ° 96000 lm No
LED PERFORMANCE HP FLOOD 800W 865 55D 800.00 W 55 ° 96000 lm No
LED PERFORMANCE HP FLOOD 800W 865 40X85D 800.00 W 40 ° x 85 ° 96000 lm No

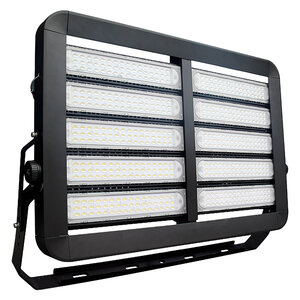

FLOODLIGHT LED LDPFM FL HP 1KW 1000.00 W 40 ° x 85 ° 120000 lm No
LED PERFORMANCE HP FLOOD 1KW 840 40X85D 1000.00 W 40 ° x 85 ° 120000 lm No

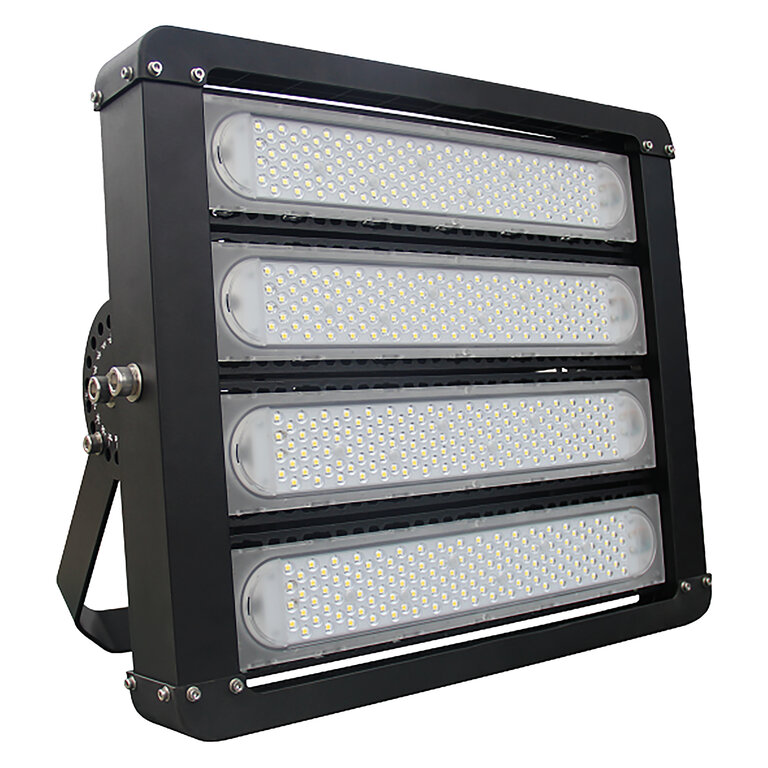

LED PERFORMANCE HP FLOOD 400W 840 55D

Product benefits
  • Dust and water protection according to IP65
  • Designed for extra performance
  • Low maintenance costs thanks to long lifetime
  • Aesthetic and functional product design

PRODUCT DETAILS

Electrical data

Nominal wattage 400.00 W
Nominal voltage 100…240 V
Mains frequency 50…60 Hz
Power factor λ ≥0.90
Total harmonic distortion < 20 %
Protection class I

Photometrical data

Luminous flux 48000 lm
Luminous efficacy 120 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Beam angle 55 °

Dimensions & Weight

Length 522.00 mm
Height 152.00 mm
Width 466.00 mm
Product weight 15000.00 g

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Polycarbonate (PC)
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Standing|Surface
Mounting location Ground, Pole

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Dust and water protection according to IP65
  • Designed for extra performance
  • Low maintenance costs thanks to long lifetime
  • Aesthetic and functional product design
Areas of application
  • Airports
  • Area lighting
  • Sports facilities
  • Mast or wall mounting
  • Outdoor use (IP65)
Product features
  • Die-cast aluminum housing
  • Luminous efficacy: up to 120 lm/W
  • Available with color temperature: 4,000 K, 6,500 K
  • Lifetime (L70/B50): 50,000 h
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075418592 Shipping box
1
600 mm x 540 mm x 230 mm 16421.00 g 74.52 dm³
