Product description	Nominal wattage	Beam angle	Luminous flux	Dimmable
LED VALUE LINEAR HIGHBAY 50W 865 WD	50.00 W	90 °	6500 lm	Yes
LED VALUE LINEAR HIGHBAY 50W 865 NW	50.00 W	60 °	6500 lm	Yes
LED VALUE LINEAR HIGHBAY 50W 865 HRO	50.00 W	30° x 90°	6500 lm	Yes
LED VALUE LINEAR HIGHBAY 50W 840 WD	50.00 W	90 °	6750 lm	Yes
LED VALUE LINEAR HIGHBAY 50W 840 HRO	50.00 W	30° x 90°	6750 lm	Yes
LED VALUE LINEAR HIGHBAY 50W 840 NW	50.00 W	60 °	6750 lm	Yes
LED VALUE LINEAR HIGHBAY 100W 865 WD	100.00 W	90 °	13000 lm	Yes
LED VALUE LINEAR HIGHBAY 100W 865 HRO	100.00 W	30° x 90°	13000 lm	Yes
LED VALUE LINEAR HIGHBAY 100W 865 NW	100.00 W	60 °	13000 lm	Yes
LED VALUE LINEAR HIGHBAY 100W 840 WD	100.00 W	90 °	13500 lm	Yes
LED VALUE LINEAR HIGHBAY 100W 840 NW	100.00 W	60 °	13500 lm	Yes
LED VALUE LINEAR HIGHBAY 100W 840 HRO	100.00 W	30° x 90°	13500 lm	Yes
LED VALUE LINEAR HIGHBAY 150W 865 WD	150.00 W	90 °	19500 lm	Yes
LED VALUE LINEAR HIGHBAY 150W 865 NW	150.00 W	60 °	19500 lm	Yes
LED VALUE LINEAR HIGHBAY 150W 865 HRO	150.00 W	30° x 90°	19500 lm	Yes
LED VALUE LINEAR HIGHBAY 150W 840 WD	150.00 W	90 °	20250 lm	Yes
LED VALUE LINEAR HIGHBAY 150W 840 HRO	150.00 W	30° x 90°	20250 lm	Yes
LED VALUE LINEAR HIGHBAY 150W 840 NW	150.00 W	60 °	20250 lm	Yes
LED VALUE LINEAR HIGHBAY 200W 865 HRO	200.00 W	30° x 90°	26000 lm	Yes
LED VALUE LINEAR HIGHBAY 200W 865 NW	200.00 W	60 °	26000 lm	Yes
LED VALUE LINEAR HIGHBAY 200W 865 WD	200.00 W	90 °	26000 lm	No
LED VALUE LINEAR HIGHBAY 200W 840 NW	200.00 W	60 °	27000 lm	Yes
LED VALUE LINEAR HIGHBAY 200W 840 HRO	200.00 W	30° x 90°	27000 lm	Yes
LED VALUE LINEAR HIGHBAY 200W 840 WD	200.00 W	90 °	27000 lm	Yes

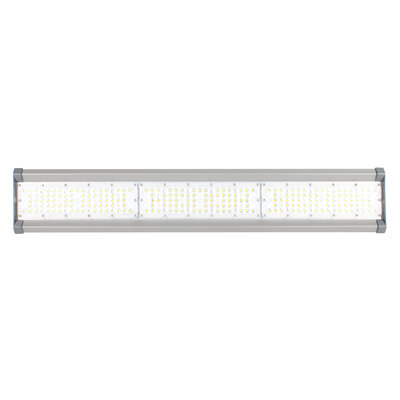

LED VALUE LINEAR HIGHBAY 150W 865 HRO

Product benefits

Energy savings thanks to system efficacy up to 135 lm/W
1-10 dimming provides additional energy saving
3 kinds of beam angle available, Narrow (60°), Wide (90°) and High rack optic (30° x 90°), can meet different application requirements
IP44, can be used in indoor wet environment
Low maintenance costs thanks to long lifetime 50,000 hrs @ 35 ℃

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	150.00 W
Nominal voltage	100…240 V
Mains frequency	50…60 Hz
Nominal current	1600.000 mA
Max. number of luminaires per miniature circuit breaker B16	2
Max. number of luminaires per miniature circuit breaker C16	2
Power factor λ	> 0.90
Total harmonic distortion	< 20 %
Protection class	I

Photometrical data

Luminous flux	19500 lm
Luminous efficacy	130 lm/W
Color temperature	6500 K
Light color (designation)	Daylight
Color rendering index Ra	80
Beam angle	30° x 90°

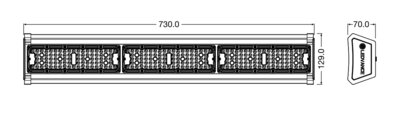

Dimensions & Weight

Length	730.00 mm
Height	70.00 mm
Width	129.00 mm
Product weight	2000.00 g

Materials & Colors

Product color	Gray
Housing color	Gray
Body material	Aluminum
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+45 °C

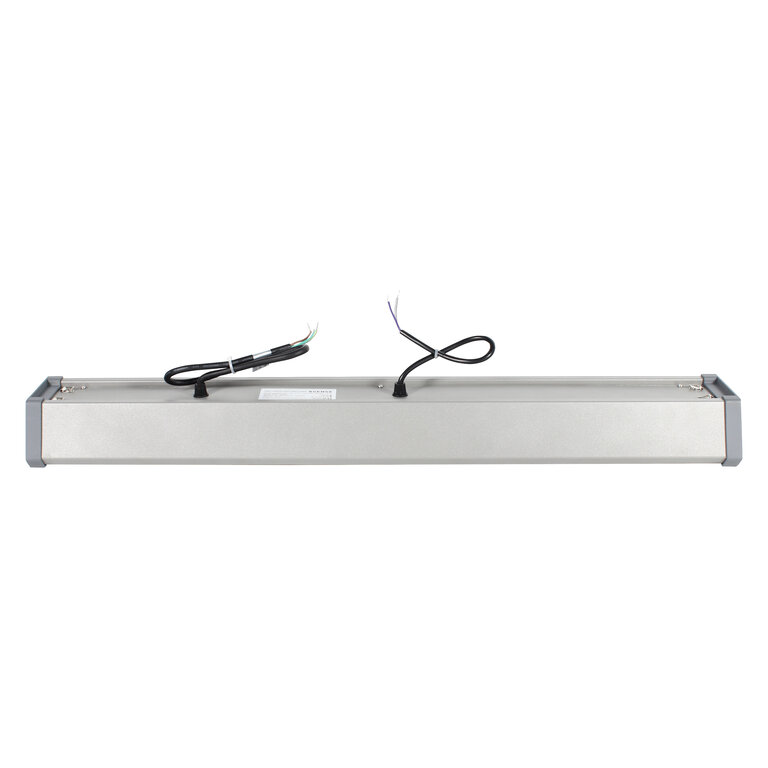

Type of connection	Terminal
Type of protection	IP44
Protection class IK (shock resistance)	IK06
Dimmable	Yes
Type of dimming	1-10V

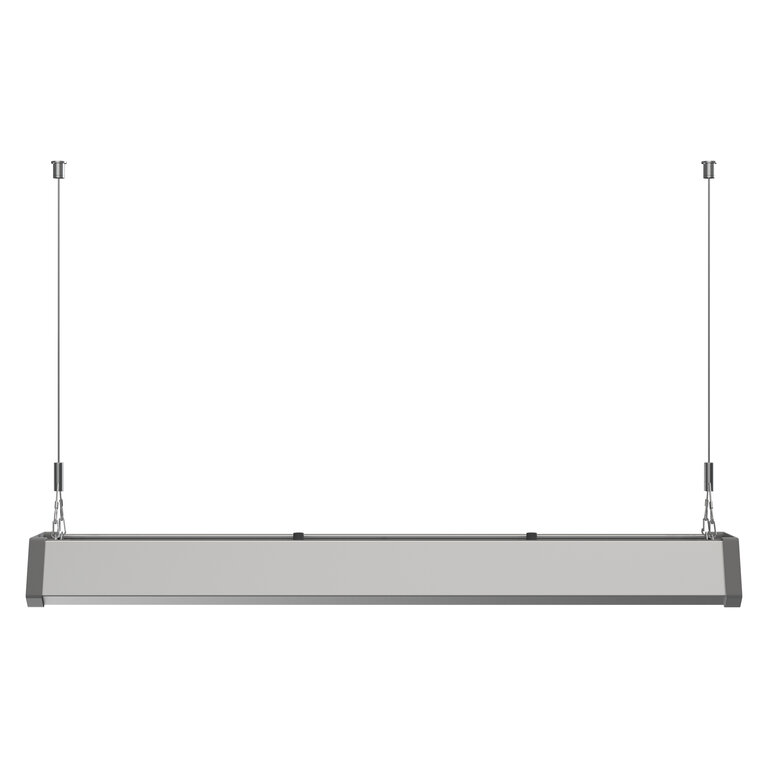

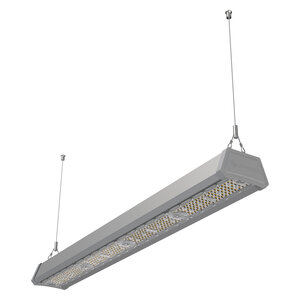

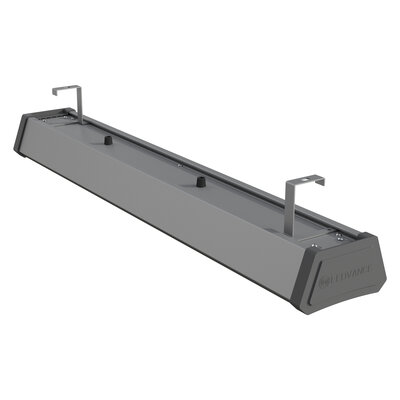

Mounting type	Suspended/Surface
Application environment	Indoor
Mounting length	730 mm
Mounting width	129 mm
LED module replaceable	Not replaceable
With light source	Yes

Certificates & Standards

Ball shot safe

Additional product data

Number of illuminants

Product description

Product benefits

Energy savings thanks to system efficacy up to 135 lm/W
1-10 dimming provides additional energy saving
3 kinds of beam angle available, Narrow (60°), Wide (90°) and High rack optic (30° x 90°), can meet different application requirements
IP44, can be used in indoor wet environment
Low maintenance costs thanks to long lifetime 50,000 hrs @ 35 ℃
