Professional
HIGH BAY GEN 3

HIGH BAY GEN 3

Choose your product version

93 W 4000 K 70DEG IP65

93 W 4000 K 110DEG IP65

93 W 6500 K 110DEG IP65

93 W 6500 K 70DEG IP65

155 W 4000 K 110DEG IP65

155 W 4000 K 70DEG IP65

155 W 6500 K 110DEG IP65

190 W 4000 K 70DEG IP65

190 W 4000 K 110DEG IP65

190 W 6500 K 70DEG IP65

210 W 4000 K 70DEG IP65

210 W 6500 K 70DEG IP65

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
HB 93 W 4000 K 70DEG IP65 93.00 W 200000 70 ° 13000 lm No
HB 93 W 4000 K 110DEG IP65 93.00 W 200000 110 ° 13000 lm No
HB 93 W 6500 K 110DEG IP65 93.00 W 200000 110 ° 13000 lm No
HB 93 W 6500 K 70DEG IP65 93.00 W 200000 70 ° 13000 lm No
HB 155 W 4000 K 110DEG IP65 155.00 W 200000 110 ° 22000 lm No
HB 155 W 4000 K 70DEG IP65 155.00 W 200000 70 ° 22000 lm No
HB 155 W 6500 K 110DEG IP65 155.00 W 200000 110 ° 22000 lm No
HB 190 W 4000 K 70DEG IP65 190.00 W 200000 70 ° 27000 lm No
HB 190 W 4000 K 110DEG IP65 190.00 W 200000 110 ° 27000 lm No
HB 190 W 6500 K 70DEG IP65 190.00 W 200000 70 ° 27000 lm No
HB 210 W 4000 K 70DEG IP65 210.00 W 200000 70 ° 30000 lm No
HB 210 W 6500 K 70DEG IP65 210.00 W 200000 70 ° 30000 lm No


HB 93 W 4000 K 70DEG IP65

Product benefits
  • Improved UGR compared to previous generations, down to UGR ≤ 22 in combination with reflector
  • High luminous efficacy
  • Energy savings of up to 60 % compared to conventional high bay luminaires
  • 5 years guarantee
  • Optimized weight and size due to compact design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 93.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 430 mA
Inrush current 44 A
Inrush current time Th50 380 µs
Max. number of luminaires per miniature circuit breaker B16 6
Max. number of luminaires per miniature circuit breaker C10 6
Max. number of luminaires per miniature circuit breaker C16 8
Power factor λ > 0.95
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode Mains voltage

Photometrical data

Luminous flux 13000 lm
Luminous efficacy 140 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 70 °

Dimensions & Weight

Diameter 280.00 mm
Height 143.00 mm
Product weight 1800.00 g
Cable length 1500 mm

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+55 °C
Temperature range at storage -40…+70 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 80000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 35000 h
Number of switching cycles 200000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Output ripple current ≤ 10 %

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" Yes
Product benefits
  • Improved UGR compared to previous generations, down to UGR ≤ 22 in combination with reflector
  • High luminous efficacy
  • Energy savings of up to 60 % compared to conventional high bay luminaires
  • 5 years guarantee
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses
  • Logistics halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Different luminous flux and beam angle for mounting heights of ~ 6 m to 14 m in 4000 K or 6500 K
Equipment / Accessories
  • Mounting hook included
  • Mounting brackets, reflectors and refractors available as separate accessory
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075452374 Shipping box
1		 337 mm x 337 mm x 152 mm 2497.00 g 17.26 dm³
User Instruction / Safety Instructions
HIGHBAY Gen3 PDF (2.02 MB)
Legal information

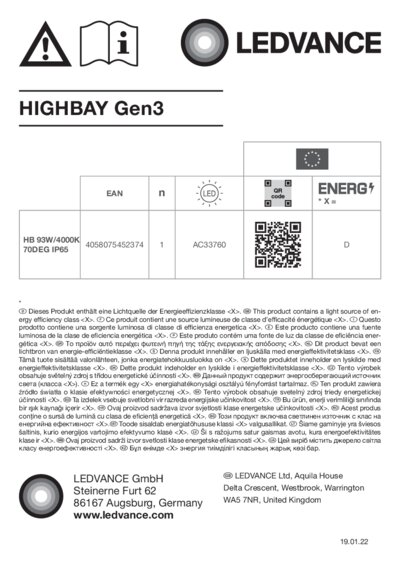

LSI_HB_LSR label PDF (1 MB)
Legal information

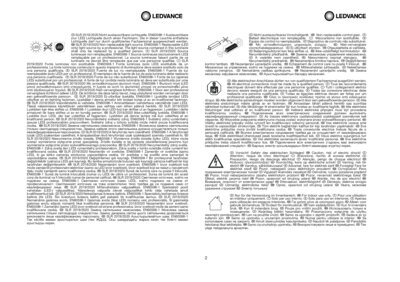

Legal insert HB P GEN 4 AND HB GEN 3 PDF (3.51 MB)
Declarations of conformity
HB PDF (320.14 KB)

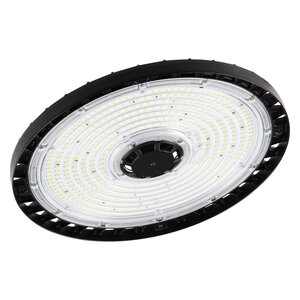

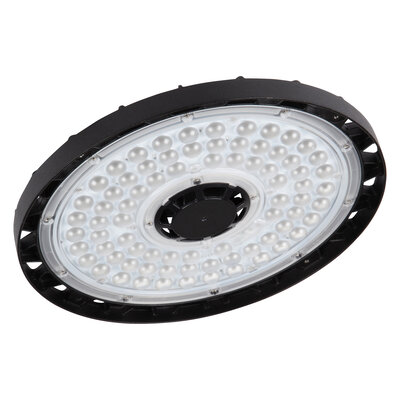

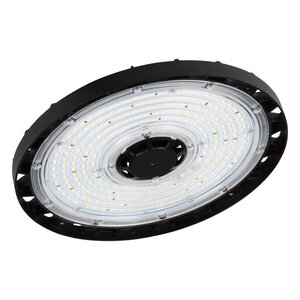

Product Image, Diagonal, White BG
HIGHBAY PERFORMANCE JPG (2.62 MB)

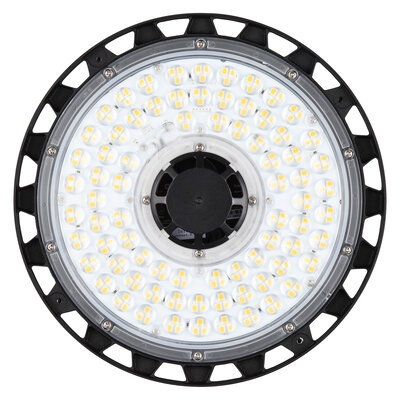

Product Image, Upright, White BG
HIGHBAY PERFORMANCE JPG (3.28 MB)
Product line drawing with letters
HIGHBAY PERFORMANCE SVG (94.74 KB)
Product line drawing with numbers
HIGHBAY PERFORMANCE SVG (99.48 KB)
Product line drawing - technical
HIGHBAY PERFORMANCE SVG (92.69 KB)

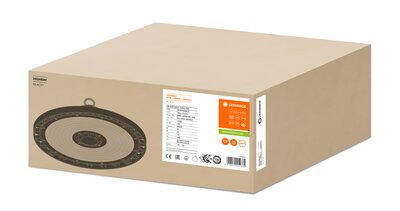

Packaging image, spacial
HighBay LED 93W MiCh TIF (75.9 MB)
Catalog info 1
Highbay Gen3 SVG (57.87 KB)
IES file (IES)
HB 93W4000K 70DEG IP65 IES (1.79 KB)
LDT file (Eulumdat)
HB 93W4000K 70DEG IP65 LDT (1.3 KB)
UGR file (UGR table)
HB PFM 93W4000K 70DEG IP65 PNG (55.81 KB)
LDC typ cone
HB PFM 93W4000K 70DEG IP65 SVG (59.27 KB)
LDC typ polar
HB PFM 93W4000K 70DEG IP65 SVG (214.99 KB)
BIM_Revit_3D
HB GEN3 ZIP (9.2 MB)
CAD_STEP_3D
High Bay gen3 93W STEP (10.02 MB)
EAN SEG number STK number EFO number ELDAS number
4058075452374 7215832 4315618 3203836 941002400
