HIGH BAY GEN 5

Choose your product version

75W 865 70DEG IP66 PS

75W 840 70DEG IP66 PS

75W 865 110DEG IP66 PS

75W 840 110DEG IP66 PS

150W 840 70DEG IP66 PS

150W 865 110DEG IP66 PS

150W 865 70DEG IP66 PS

150W 840 110DEG IP66 PS

200W 840 70DEG IP66 PS

200W 865 110DEG IP66 PS

200W 865 70DEG IP66 PS

200W 840 110DEG IP66 PS

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
HB P 75W 865 70DEG IP66 PS 75 W / 53 W 200000 70 ° 13125 lm / 9275 lm Yes
HB P 75W 840 70DEG IP66 PS 75 W / 53 W 200000 70 ° 13200 lm / 9328 lm Yes
HB P 75W 865 110DEG IP66 PS 75 W / 53 W 200000 110 ° 13350 lm / 9434 lm Yes
HB P 75W 840 110DEG IP66 PS 75 W / 53 W 200000 110 ° 13500 lm / 9540 lm Yes
HB P 150W 840 70DEG IP66 PS 150 W / 125 W 200000 70 ° 26250 lm / 21875 lm Yes
HB P 150W 865 110DEG IP66 PS 150 W / 125 W 200000 110 ° 26250 lm / 21875 lm Yes
HB P 150W 865 70DEG IP66 PS 150 W / 125 W 200000 70 ° 26250 lm / 21875 lm Yes
HB P 150W 840 110DEG IP66 PS 150 W / 125 W 200000 110 ° 26700 lm / 22250 lm Yes
HB P 200W 840 70DEG IP66 PS 200 W / 173 W 200000 70 ° 35000 lm / 30275 lm Yes
HB P 200W 865 110DEG IP66 PS 200 W / 173 W 200000 110 ° 35000 lm / 30275 lm Yes
HB P 200W 865 70DEG IP66 PS 200 W / 173 W 200000 70 ° 35000 lm / 30275 lm Yes
HB P 200W 840 110DEG IP66 PS 200 W / 173 W 200000 110 ° 36200 lm / 31313 lm Yes

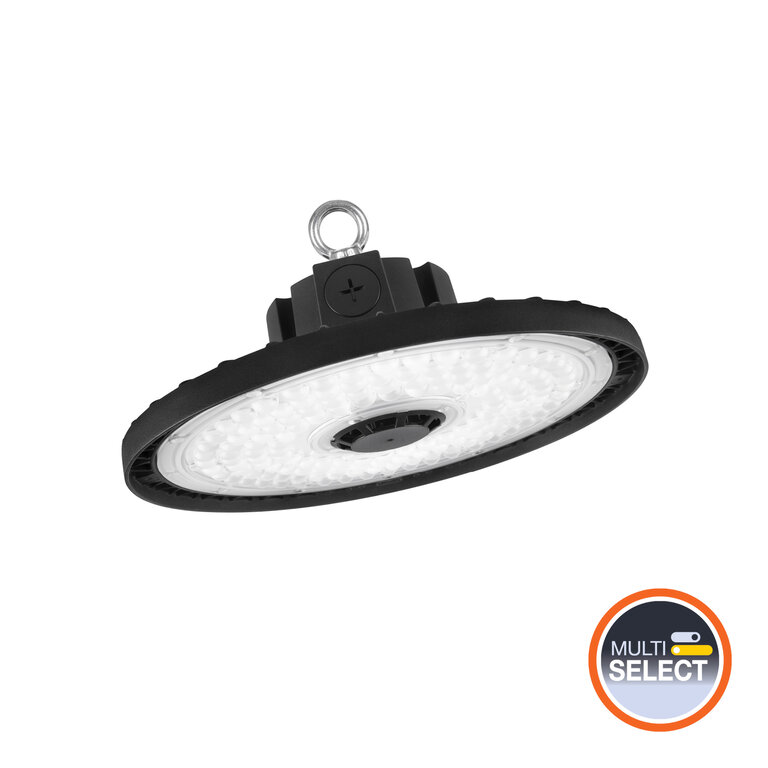

HB P 150W 840 70DEG IP66 PS

Product benefits
  • Highly versatile due to selectable power steps (Multi Lumen) on the housing
  • Improved UGR compared to previous generations, down to UGR ≤ 19 (<150W, 70°) in combination with reflector
  • High luminous efficacy
  • Energy savings of up to 70 % compared to conventional high bay luminaires
  • Optimized weight and size due to compact design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 150 W / 125 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 665…555 mA
Inrush current 16.7 A
Inrush current time Th50 302 µs
Max. number of luminaires per miniature circuit breaker B16 13
Max. number of luminaires per miniature circuit breaker C10 10
Max. number of luminaires per miniature circuit breaker C16 16
Power factor λ > 0.95
Total harmonic distortion < 15 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 26250 lm / 21875 lm
Luminous efficacy 175 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching ≤4 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0,4
Photobiological safety group acc. to EN62778 RG1
Beam angle 70 °

Dimensions & Weight

Diameter 321.00 mm
Height 160.00 mm
Product weight 2900.00 g
Cable length 1500 mm

Materials & Colors

Product color Black
Housing color Black
RAL Color (most similar) RAL 9005
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+80 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK10
Dimmable Yes
Mounting type Surface/Suspended
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 120000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 49000 h
Number of switching cycles 200000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 615 mA
ECG - Output ripple current < 5 %

Certificates & Standards

Standards CE, UKCA, EAC, CB, ENEC, TÜV SÜD, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00032-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Highly versatile due to selectable power steps (Multi Lumen) on the housing
  • Improved UGR compared to previous generations, down to UGR ≤ 19 (<150W, 70°) in combination with reflector
  • High luminous efficacy
  • Energy savings of up to 70 % compared to conventional high bay luminaires
  • Optimized weight and size due to compact design
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses, logistic halls
  • Industry
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Multi Lumen function: power steps selectable
  • Different luminous flux and beam angle for mounting heights of ~ 6 m to 18 m in 4000 K or 6500 K
  • 0-10 V dimmable
  • Lifetime (L80/B10): up to 100,000 h (at 35 °C)
Equipment / Accessories
  • Mounting hook included
  • Mounting brackets, reflectors and refractors available as separate accessory
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075844308 Shipping box
1		 368 mm x 368 mm x 168 mm 3553.00 g 22.75 dm³
Product image Product name EAN
HB BRACKET 138 4058075844643
HB ALU REFLECTOR 500 4058075844582
HB PC REFRACTOR 500 4058075844629
User instruction / safety instructions
HB ACC UI PDF (11.34 MB)
Legal information
HB P PDF (2.23 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety Insert G1120549 6 PDF (364.68 KB)
Declarations of conformity
HIGHBAY P PDF (238.62 KB)
Certificates
ENEC HIGHBAY P ON_OFF PDF (418.84 KB)
EPD
EPD EN HIGH BAY GEN 5 DALI PDF (670.25 KB)
Product image: white background, diagonal
HB P JPG (1.57 MB)
Product image: white background, upright
HB P PS JPG (3.69 MB)
Product line drawing with numbers
HB P SVG (139.1 KB)
Product line drawing - technical
HB P SVG (133.45 KB)
Product line drawing - technical
HB P SVG (130.6 KB)
Combo Shot = Product Beauty Shot + Packaging Image
HB P 150W 840 70DEG IP 66 PS JPG (1.37 MB)
Packaging image, frontal
HB P 150W 840 70DEG IP 66 PS JPG (1.18 MB)
Packaging image, spacial
HB P 150W 840 70DEG IP 66 PS JPG (1.33 MB)
Catalog info 1
HB P IP66 PS PNG (322.71 KB)
Catalog info 2
HB P IP66 PNG (65.11 KB)
Catalog info 3
HB P IP66 PNG (91.54 KB)
Catalog info 4
HB P IP66 PNG (76.87 KB)
Catalog info 5
HB P IP66 PNG (115.41 KB)
Catalog info 6
HB P IP66 PNG (96.79 KB)
IES file (IES)
HB P 150W 840 70DEG IP 66 PS IES (1.78 KB)
IES files (IES, additional)
HB P 150W 840 70DEG IP 66 PS - REFLECTOR IES (3.28 KB)
IES files (IES, additional)
HB P 150W 840 70DEG IP 66 PS - REFRACTOR IES (3.28 KB)
IES files (IES, additional)
HB P 150W 840 70DEG IP 66 PS set to 125W IES (1.79 KB)
LDT file (Eulumdat)
HB P 150W 840 70DEG IP 66 PS LDT (1.48 KB)
LDT files (Eulumdat, additional)
HB P 150W 840 70DEG IP 66 PS - REFRACTOR LDT (2.4 KB)
LDT files (Eulumdat, additional)
HB P 150W 840 70DEG IP 66 PS - REFLECTOR LDT (2.32 KB)
LDT files (Eulumdat, additional)
HB P 150W 840 70DEG IP 66 PS set to 125W LDT (1.52 KB)
ULD file (DIALux)
HB P 150W 840 70DEG I P66 ULD (142.34 KB)
ROLF file (RELUX)
HB P 150W 840 70DEG ROLF (794.45 KB)
UGR file (UGR table)
HB P 150W 840 70DEG IP 66 PS PNG (55.84 KB)
UGR file (UGR table)
HB P 150W 840 70DEG IP 66 PS - REFRACTOR PNG (56.11 KB)
UGR file (UGR table)
HB P 150W 840 70DEG IP 66 PS - REFLECTOR PNG (56.03 KB)
Light distribution curve type cone
HB P 150W 840 70DEG IP 66 PS - REFRACTOR SVG (11.44 KB)
Light distribution curve type cone
HB P 150W 840 70DEG IP 66 PS - REFLECTOR SVG (11.44 KB)
Light distribution curve type cone
HB P 150W 840 70DEG IP 66 PS set to 125W SVG (11.44 KB)
Light distribution curve type polar
HB P 150W 840 70DEG IP 66 PS - REFRACTOR SVG (17.4 KB)
Light distribution curve type polar
HB P 150W 840 70DEG IP 66 PS - REFLECTOR SVG (17.2 KB)
Light distribution curve type polar
HB P 150W 840 70DEG IP 66 PS set to 125W SVG (17.79 KB)
BIM Revit 3D
High Bay G5 ZIP (2.39 MB)
CAD STEP 3D
HB G5 150W STEP (1.52 MB)
Tender documents
HIGH BAY GEN 5 150W 84 0 70DEG IP66 PS-EN TXT (2.34 KB)
Application pictures Getty
High Bay Gen 5 industr ial hall JPG (16 MB)
EAN SEG number STK number EFO number ELDAS number UK Org
4058075844308 7220081 4325327 3352285 941604150 437369453
