Professional

HIGH BAY BRACKETS GEN 5

Choose your product version

OVERVIEW

Product description

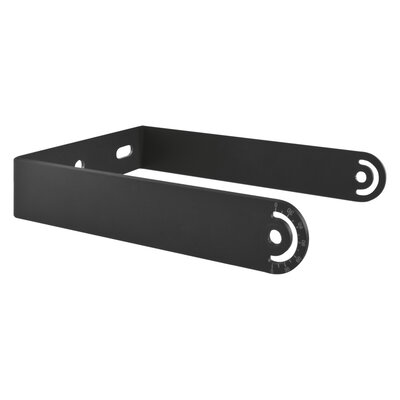

HB BRACKET 138


HB BRACKET 138

Product benefits

PRODUCT DETAILS

Dimensions & Weight

Length 138 mm
Height 150 mm
Width 35 mm
Product weight 350.00 g

Materials & Colors

Product color Black
Body material Steel

Application & Mounting

Mounting type Surface
Mounting location Luminaire

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product features
  • Brackets made of black steel
  • Adjustable swivel angle: ±90°
  • HB BRACKET 138 suitable for HB P 75W, 150W and 200W versions (On-Off and DALI)
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume

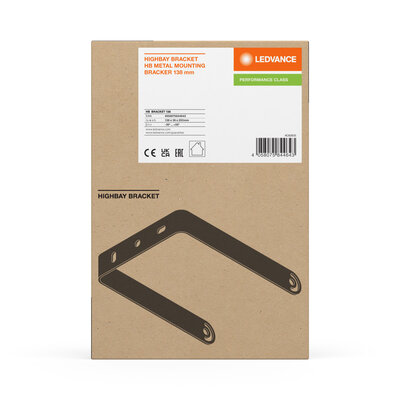

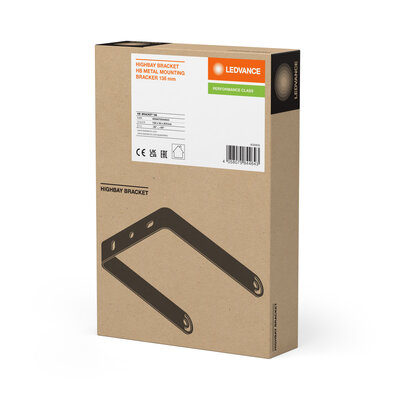

4058075844643 Folding box
1
40 mm x 140 mm x 205 mm 388.00 g 1.15 dm³
4058075844650 Shipping box
10
302 mm x 227 mm x 234 mm 4249.00 g 16.04 dm³
EAN SEG number STK number EFO number
4058075844643 7220093 4325347 3352299
