LINEAR COMPACT BATTEN

LINEAR COMPACT BATTEN

Choose your product version

600 10 W 3000 K

600 10 W 4000 K

1200 20 W 3000 K

1200 20 W 4000 K

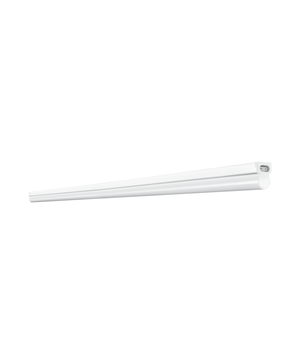

1500 25 W 3000 K

1500 25 W 4000 K

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN COMP Batten 600 10 W 3000 K 10.00 W 100000 140 ° 1000 lm No
LN COMP Batten 600 10 W 4000 K 10.00 W 100000 140 ° 1000 lm No
LN COMP Batten 1200 20 W 3000 K 20.00 W 100000 140 ° 2000 lm No
LN COMP Batten 1200 20 W 4000 K 20.00 W 100000 140 ° 2000 lm No
LN COMP Batten 1500 25 W 3000 K 25.00 W 100000 140 ° 2500 lm No
LN COMP Batten 1500 25 W 4000 K 25.00 W 100000 140 ° 2500 lm No


LN COMP Batten 600 10 W 3000 K

Product benefits
  • Compact dimensions
  • Little space required thanks to compact dimensions
  • Seamless connection without visible cables when connected to Linear Compact High Output
  • High lumen output up to 2500 lm
  • Flexible application due to a wide range of available lengths of 600 to 1500 mm
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 10.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 83 mA
Inrush current 10.8 A
Inrush current time Th50 150 µs
Max. number of luminaires per miniature circuit breaker B16 69
Max. number of luminaires per miniature circuit breaker C10 54
Max. number of luminaires per miniature circuit breaker C16 87
Power factor λ > 0.50
Total harmonic distortion < 30 %
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 1000 lm
Luminous efficacy 100 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 5 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 140 °

Dimensions & Weight

Length 575.00 mm
Height 38.00 mm
Width 27.00 mm
Product weight 140.00 g

Materials & Colors

Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Screw terminal, 2-Pole (L,N)
Type of protection IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
LED module replaceable Not replaceable
With light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 50000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 30000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, CB, TÜV SÜD, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
EPD LEDV-00019-V01.01-EN
Product benefits
  • Compact dimensions
  • Little space required thanks to compact dimensions
  • Seamless connection without visible cables when connected to Linear Compact High Output
  • High lumen output up to 2500 lm
  • Flexible application due to a wide range of available lengths of 600 to 1500 mm
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Indoor applications
  • Corridors, entrance areas, stairwells, living rooms, basements
  • Accent lighting
  • Public areas
  • Cove lighting
  • Shelves, furniture integration or under cabinet mounting
  • Seamless linear lighting
Product features
  • Replacement for traditional T8 luminaires
  • Wiring at back side of luminaire
  • Translucent end caps
  • Connectible at the beginning of a light line with Linear Compact High Output luminaire
  • Versions with luminous flux 1000…2500 lm available
  • 3 different lengths available
  • High luminous efficacy: up to 100 lm/W
  • Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
  • Mounting clips included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075099692 Folding box
1		 29 mm x 580 mm x 42 mm 170.00 g 0.71 dm³
4058075099708 Shipping box
25		 618 mm x 242 mm x 175 mm 5120.00 g 26.17 dm³
User Instruction / Safety Instructions

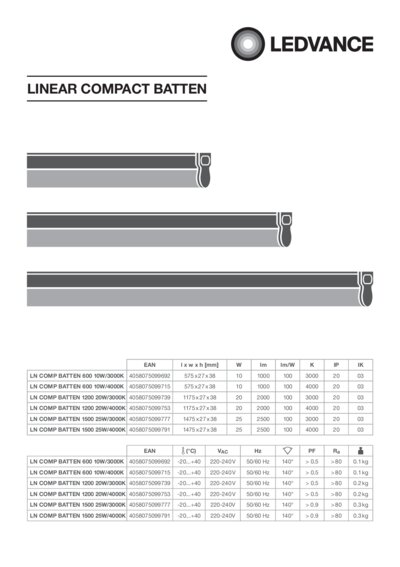

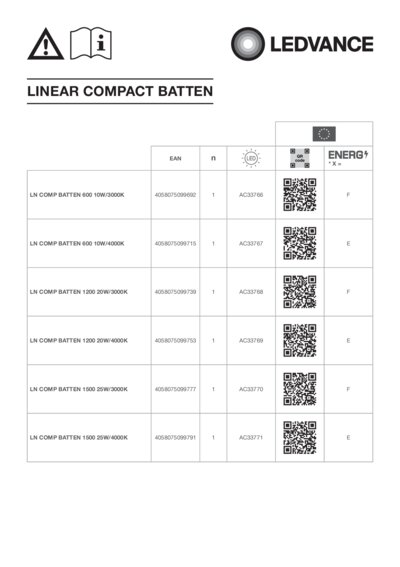

LINEAR COMPACT BATTEN PDF (3.89 MB)
Legal information
LINEAR COMPACT BATTEN PDF (2.68 MB)
Legal information

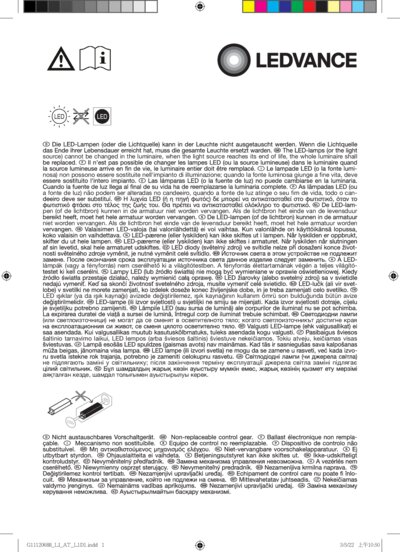

Legal insert LINEAR CO MPACT AND ORBIS DISC PDF (4.07 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity

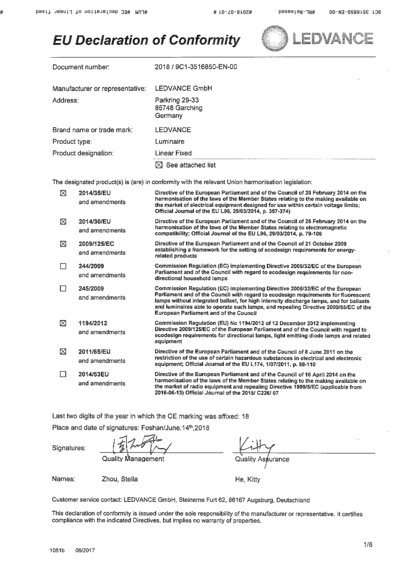

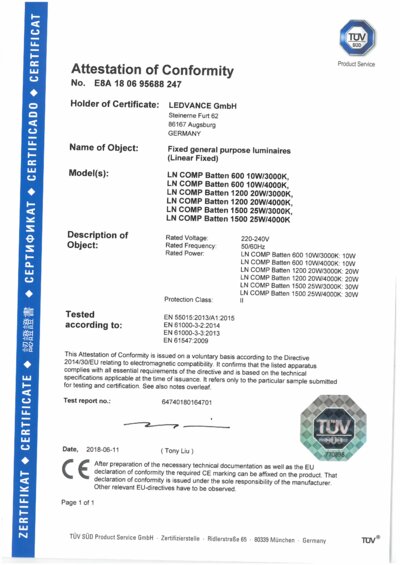

CE Certificate Linear Comp Batten PDF (697.84 KB)
Declarations of conformity
Linear Batten CE Decla ration PDF (775.79 KB)
EPD

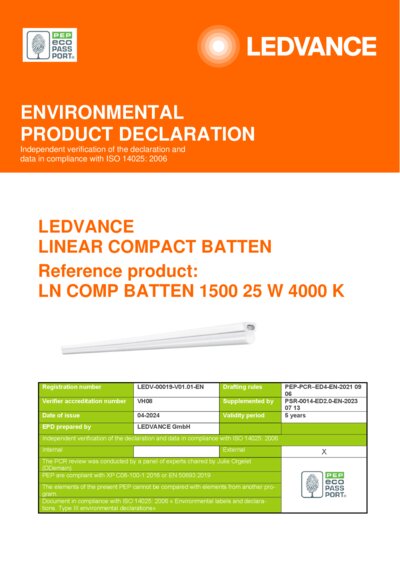

ENVIRONMENTAL PRODUCT DECLARATION LINEAR COM PACT BATTEN PDF (614.91 KB)

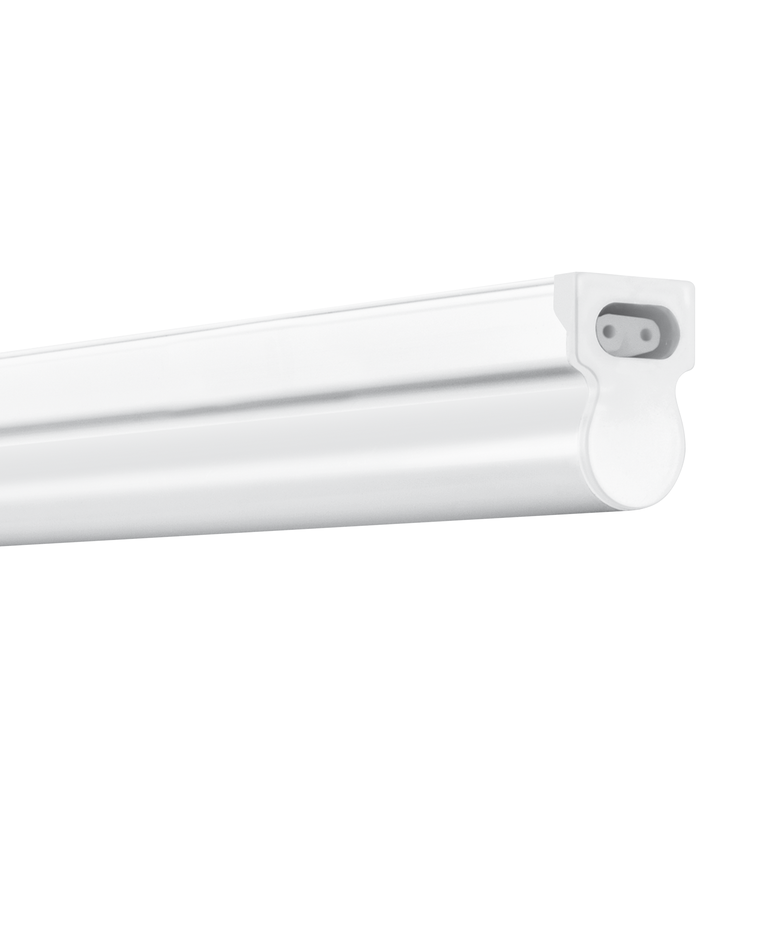

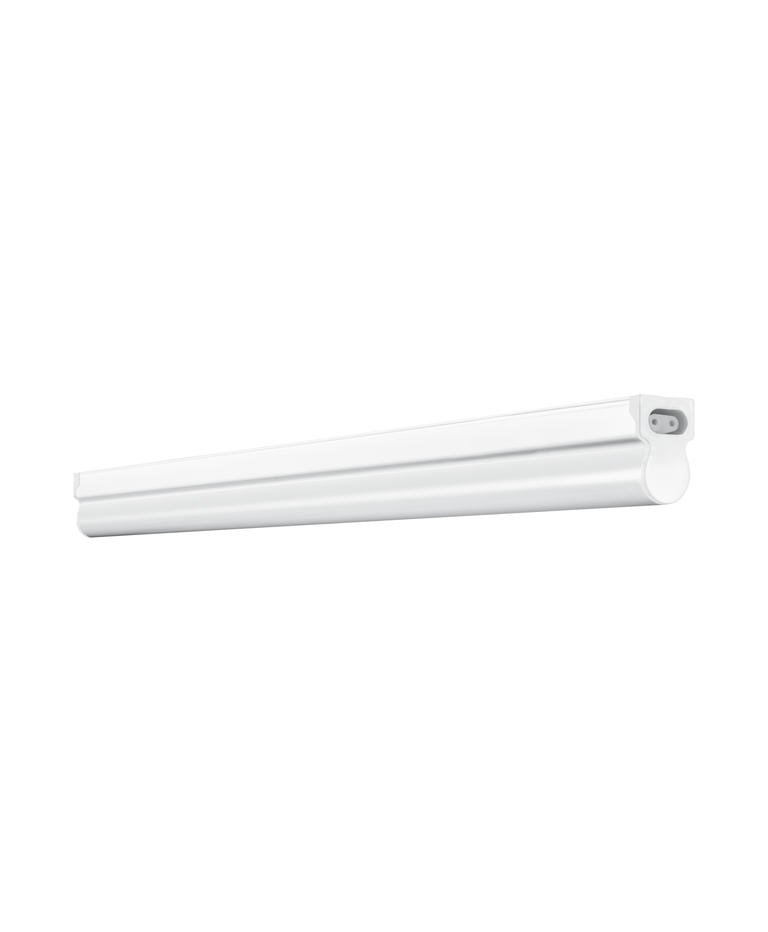

Product Image, Diagonal, White BG, Alternativ Image

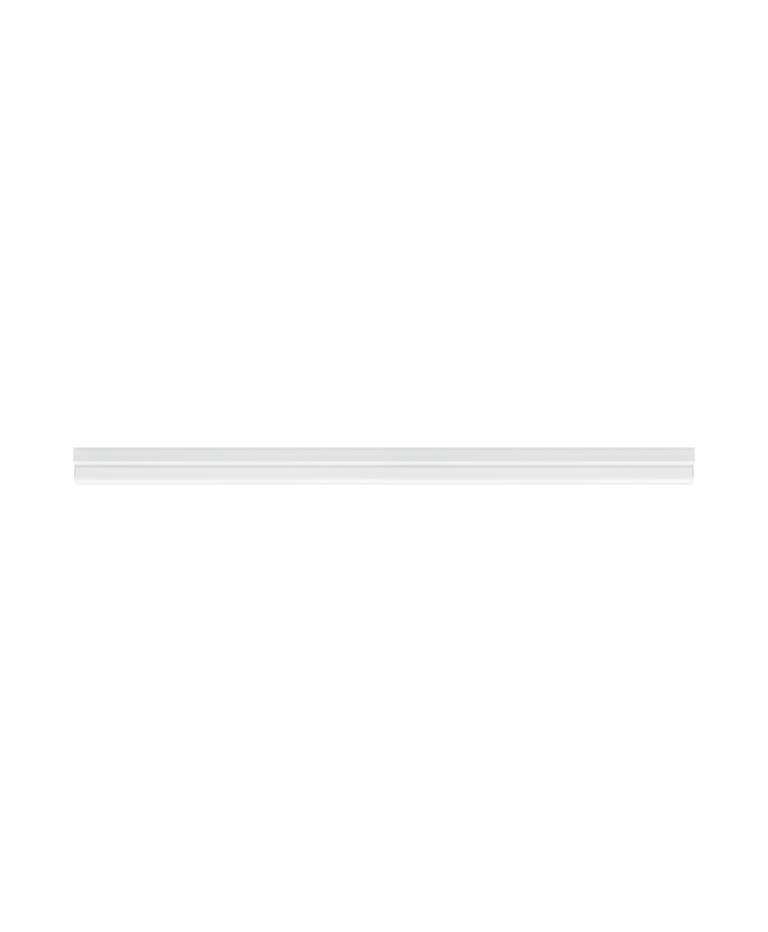

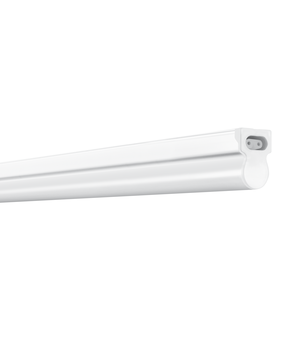

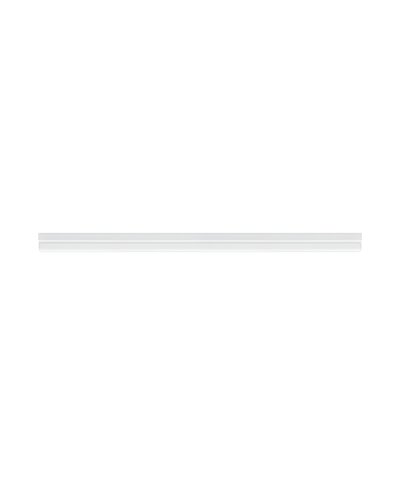

LN COMP BATTEN 600 TIF (28.25 MB)
Product Image, Horizontal, White BG
LN COMP BATTEN 600 TIF (89.67 MB)

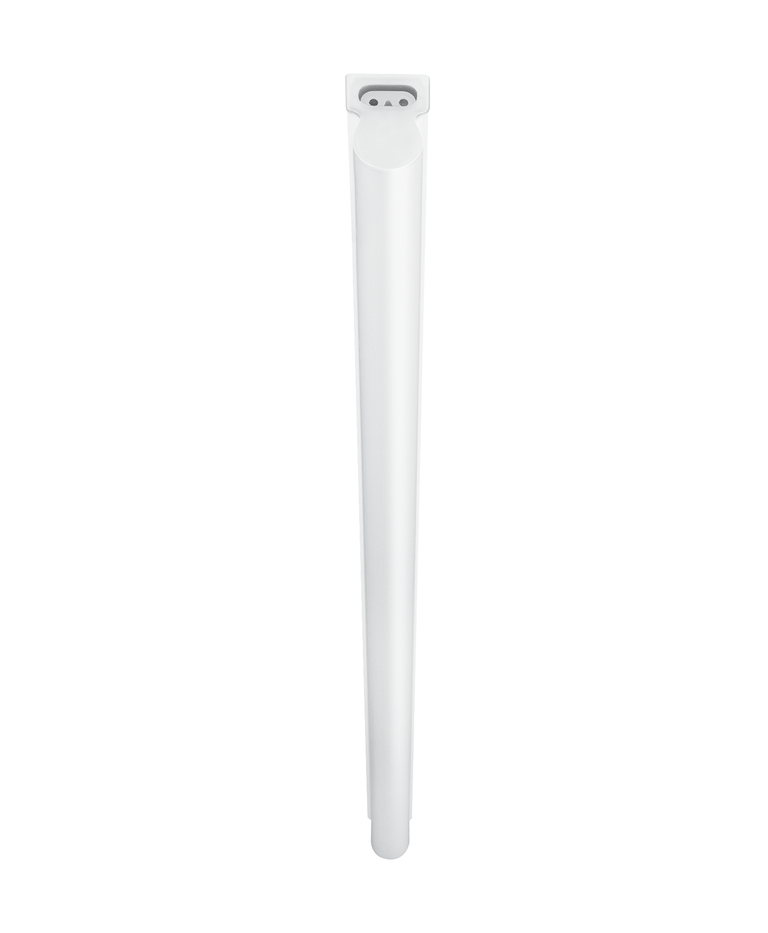

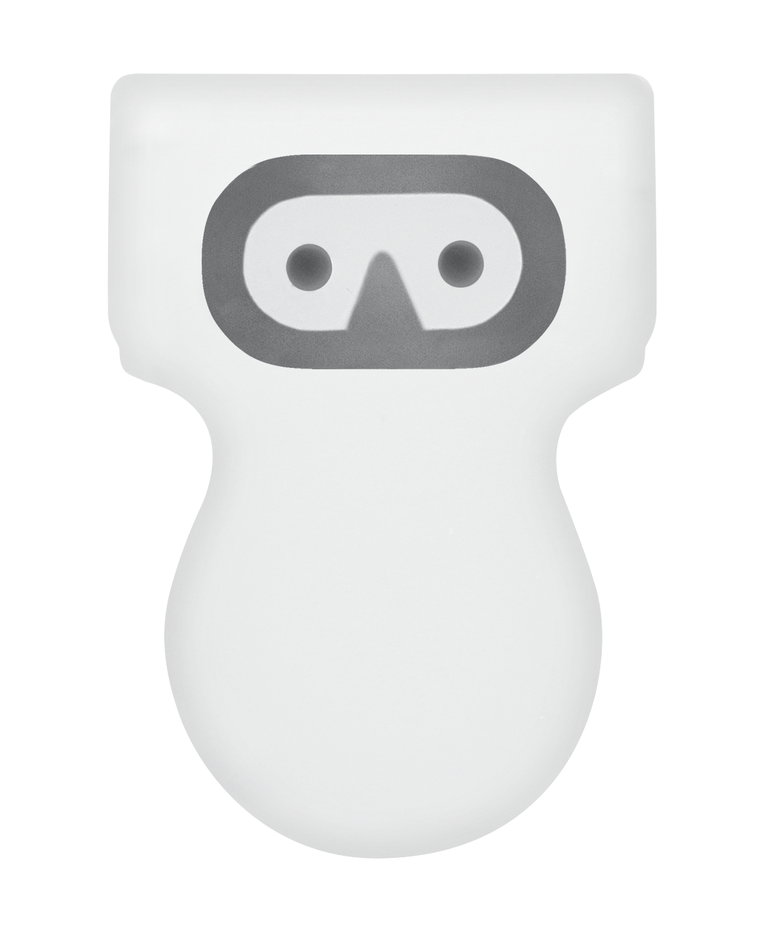

Product Image, Upright, White BG
LN COMP BATTEN 600 TIF (7.7 MB)
Product Image, Spacial, White BG
LN COMP BATTEN 600 TIF (33.06 MB)
Product line drawing with letters
LN COMP BATTEN 600 SVG (7.42 KB)
Product line drawing with numbers
LN COMP BATTEN 600 SVG (13.12 KB)
Product line drawing - technical
LN COMP BATTEN 600 SVG (4.64 KB)

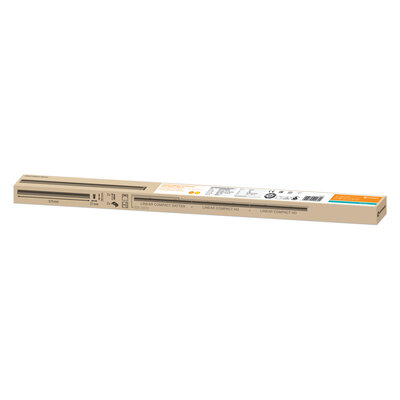

Packaging image, spacial
LINEAR COMPACT SWITCH 300 4 W 3000 K Mich Si de JPG (943.96 KB)
Catalog info 1
Linear Compact Batten SVG (70.57 KB)
Catalog info 2
Linear Compact Batten SVG (99.25 KB)
IES file (IES)
LN COMP BATTEN 600 10W 3000K IES (7.41 KB)
LDT file (Eulumdat)
LN COMP BATTEN 600 10W 3000K LDT (7.53 KB)
ULD file (DIALux)
LINEARCOMPACTBATTEN600 10W3000K ULD (296.45 KB)
ROLF file (RELUX)
LN COMP BATTEN 600 ROLF (86.15 KB)

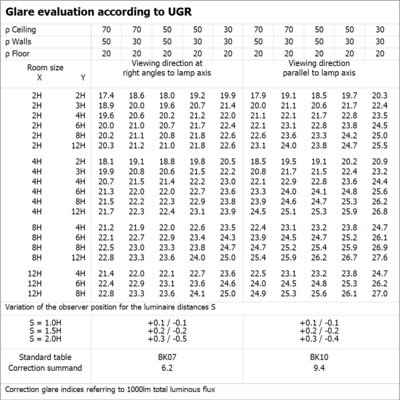

UGR file (UGR table)
LN COMP BATTEN 600 10W 3000K PNG (62.74 KB)
LDC typ polar
LN COMP BATTEN 600 10W 3000K SVG (453.28 KB)
BIM_Revit_3D
Linear Compact ZIP (8.68 MB)
CAD_STEP_3D
LN COMP BATTEN 600 STEP (149.57 KB)
Tender documents
LINEAR COMPACT BATTEN 600 10 W 3000 K-EN TXT (1.57 KB)
Video
LEDVANCE Linear LED CO MP Batten EN MP4 (68.38 MB)
Video
LEDVANCE LUM Installat ion Video EN Linear Co mpact MP4 (152.67 MB)
EAN SEG number STK number EFO number ELDAS number
4058075099692 7016189 4125313 3203420 941000180
